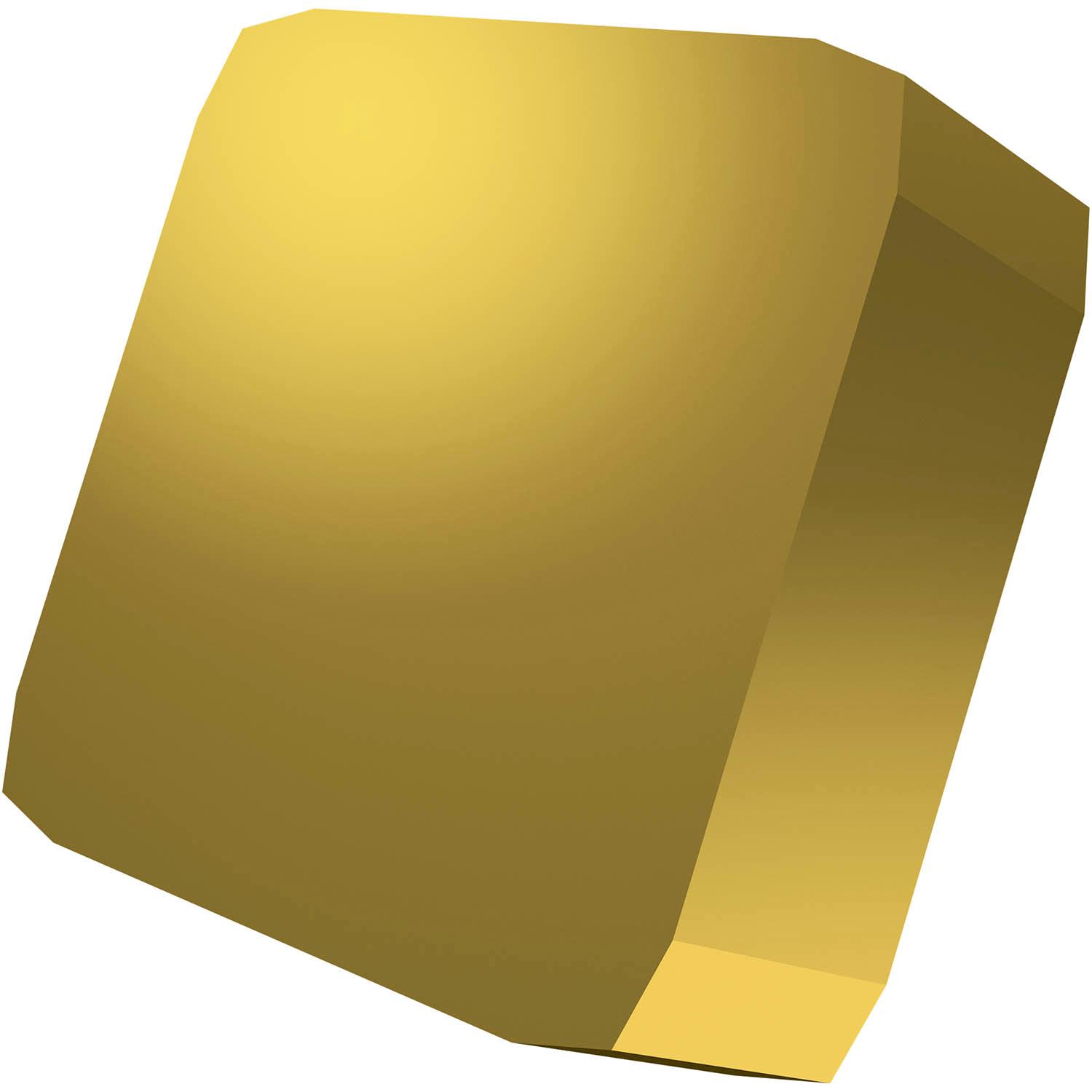

PRAMET SNHN 1204ENEN:M8340 Milling inserts clamped by wedge

Description: Value
EAN number: 3603602994004
Product number (SAP): 80025070
Ordering code ANSI: SNHN 43ENEN:M8340
Gross weight – grams: 10.684
Wiper edge length – millimeter (BS): 1.4 mm
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 0.95 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNHN1204ENEN:M8340
