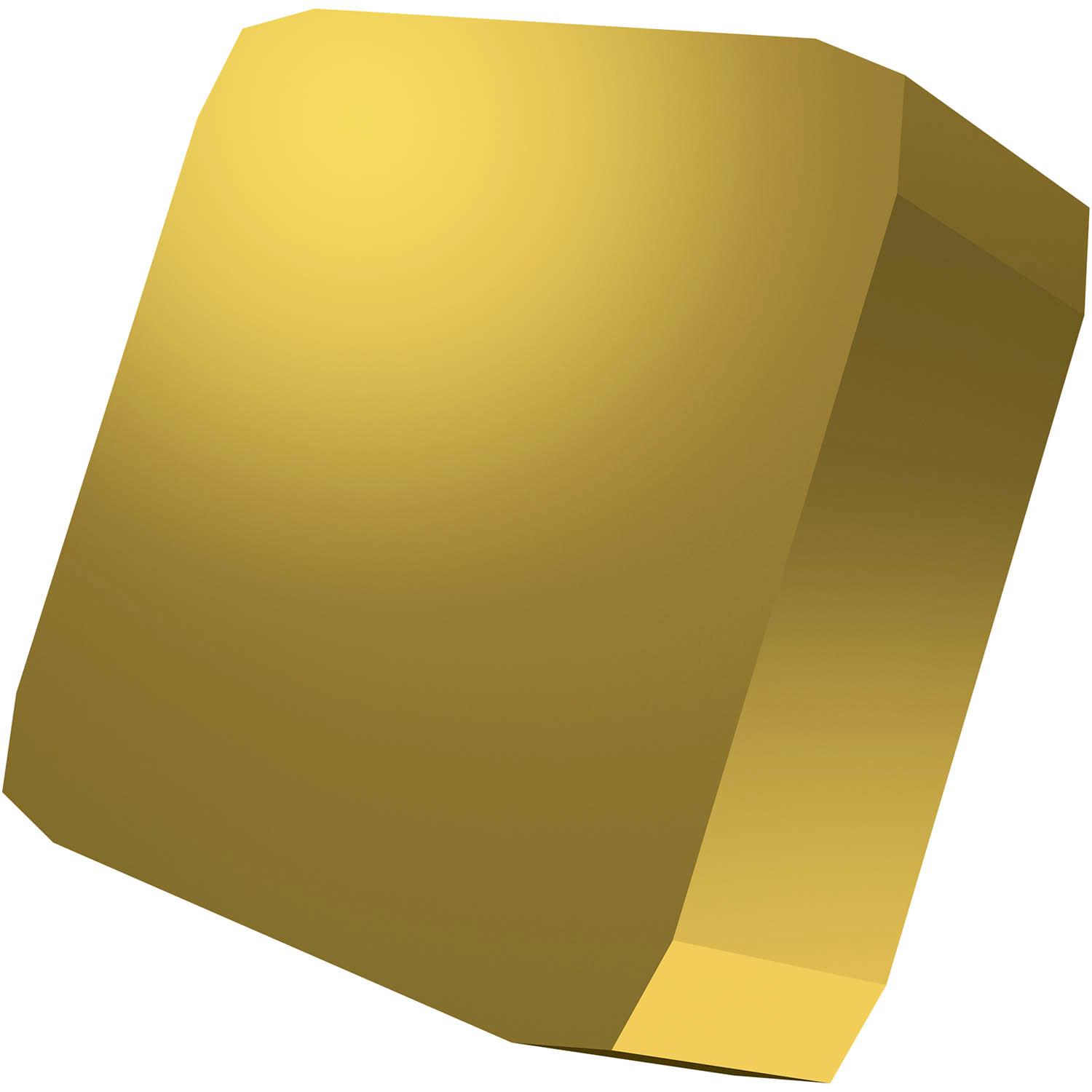

PRAMET SNHN 1504ENEN:M8330 Milling inserts clamped by wedge

Product Code: SNHN 1504ENEN:M8330

$36.83$33.48 Ex. GST

Product Code: SNHN 1504ENEN:M8330 SKU SNHN 1504ENEN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert SNHN 1504 with a plane rake surface, square for a maximum depth of cut of 13.5mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0358 kg
barcode
Additional Information

Description: Value
EAN Number: 3603603389250 Product Number (SAP): 80030191 Ordering Code ANSI: SNHN 53ENEN:M8330 Gross Weight – Grams: 17.175 Wiper Edge Length – Millimeter (BS): 1.4 mm Inscribed Circle Diameter – Millimeter (IC): 15.875 mm M-Dimension – Millimeter (M): 1.3 mm Insert Thickness – Millimeter (S): 4.76 mm Grade: M8330 Insert Clearance Code and Angle: N 0° Insert Size: 15 Insert Thickness: 04 Insert Type: N Chipbreaker Manufacturer's Designation (CBMD): No chipbreaker Insert Shape Code (SC): S – square ISO: SNHN1504ENEN:M8330

Brand

PRAMET
