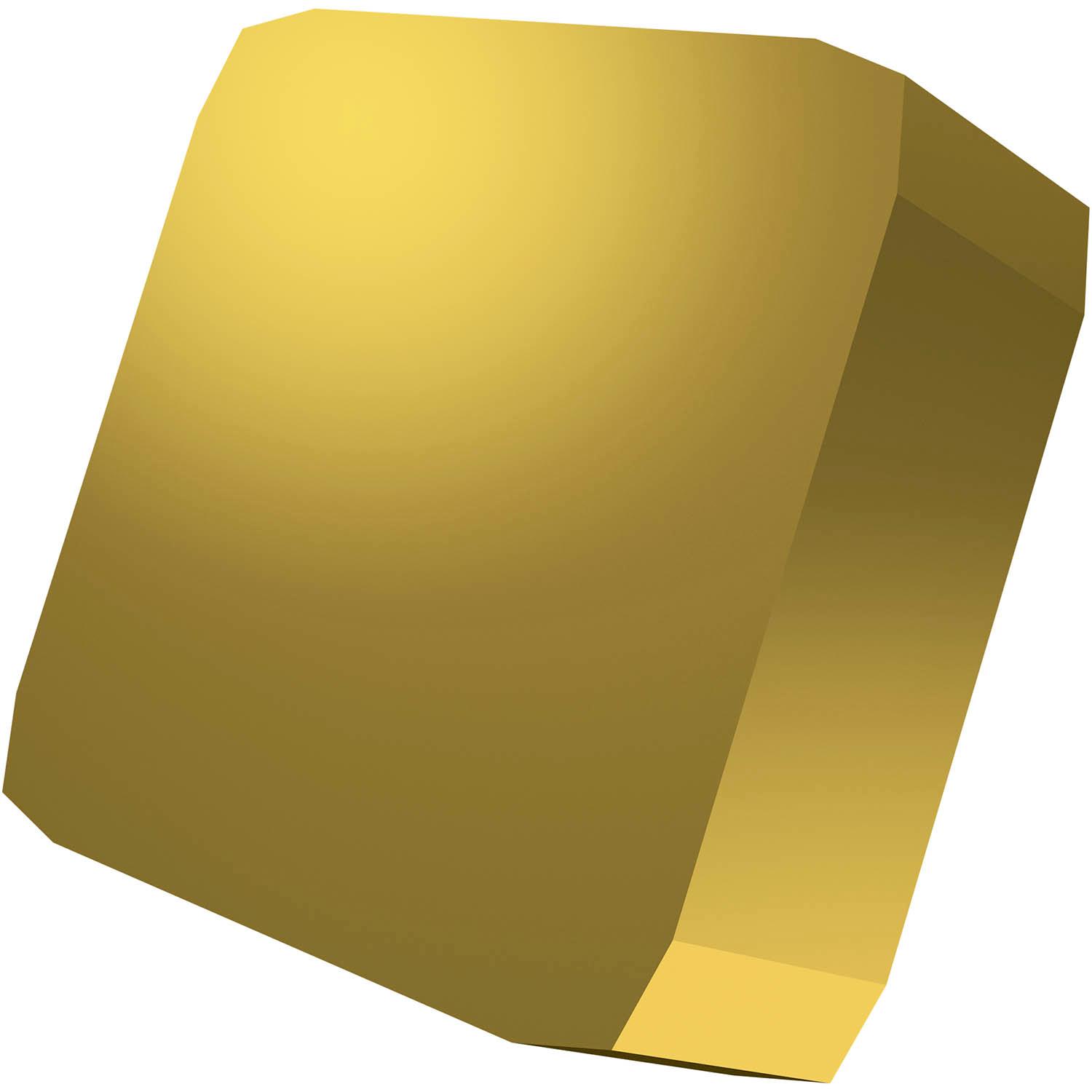

PRAMET SNHN 1504ENEN:M8340 Milling inserts clamped by wedge

Description: Value
EAN number: 3603602995018
Product number (SAP): 80025071
Ordering code ANSI: SNHN 53ENEN:M8340
Gross weight – grams: 16.796
Wiper edge length – millimeter (BS): 1.4 mm
Inscribed circle diameter – millimeter (IC): 15.875 mm
m-dimension – millimeter (M): 1.3 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: N 0°
Insert size: 15
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNHN1504ENEN:M8340
