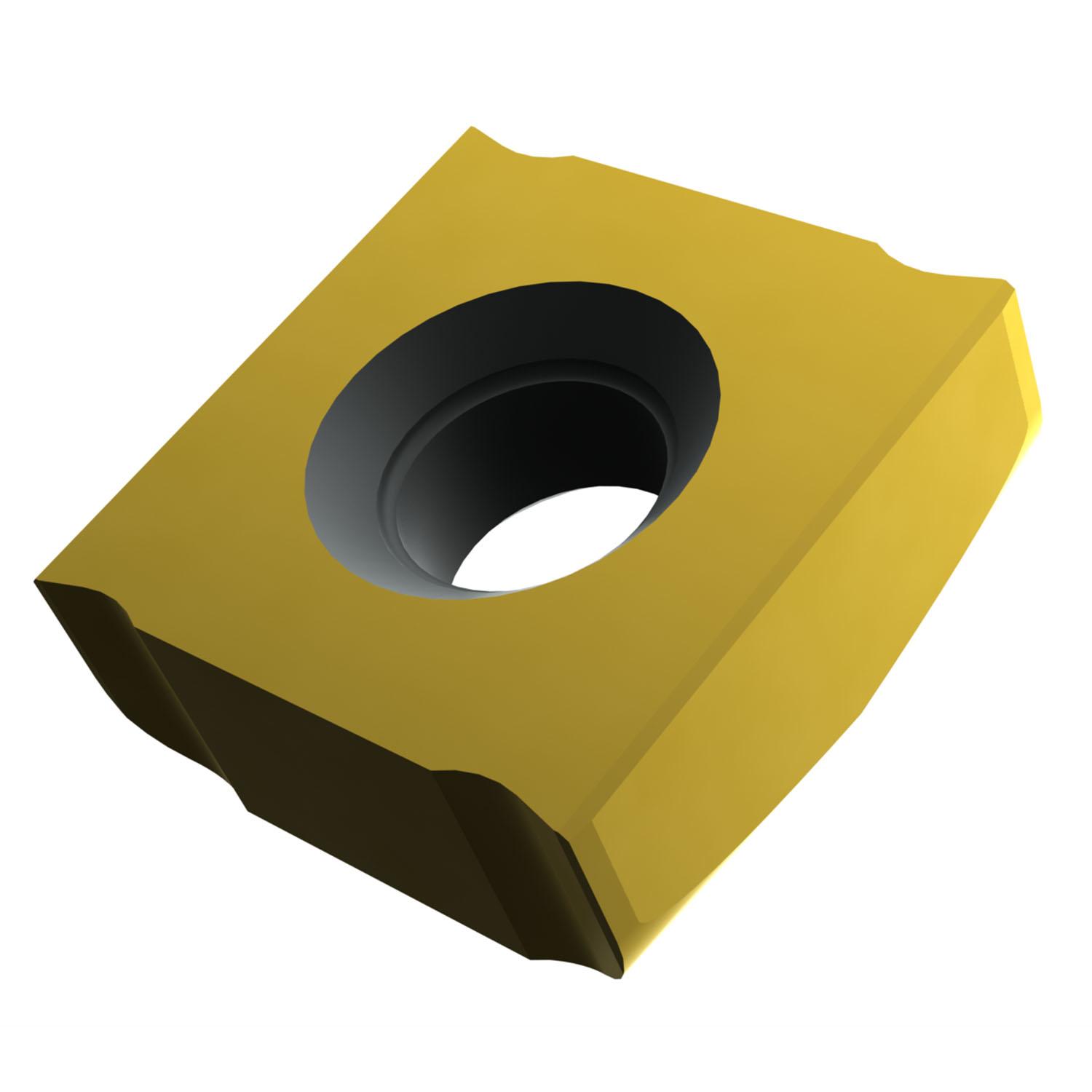

PRAMET SNHQ 120315TRL:M8340 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602995063
Product number (SAP): 80025076
Ordering code ANSI: SNHQ 120315TRL:M8340
Gross weight – grams: 5.7
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5 mm
Cutting edge length – millimeter (L): 12.7 mm
Insert width – millimeter (W1): 3.2 mm
Grade: M8340
Corner radius – millimeter (RE): 1.5 mm
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Type: Q
Insert shape code (SC): S – square
ISO: SNHQ120315TRL:M8340
