PRAMET SNMG 120412-RK:T5010 Focus Products

Description

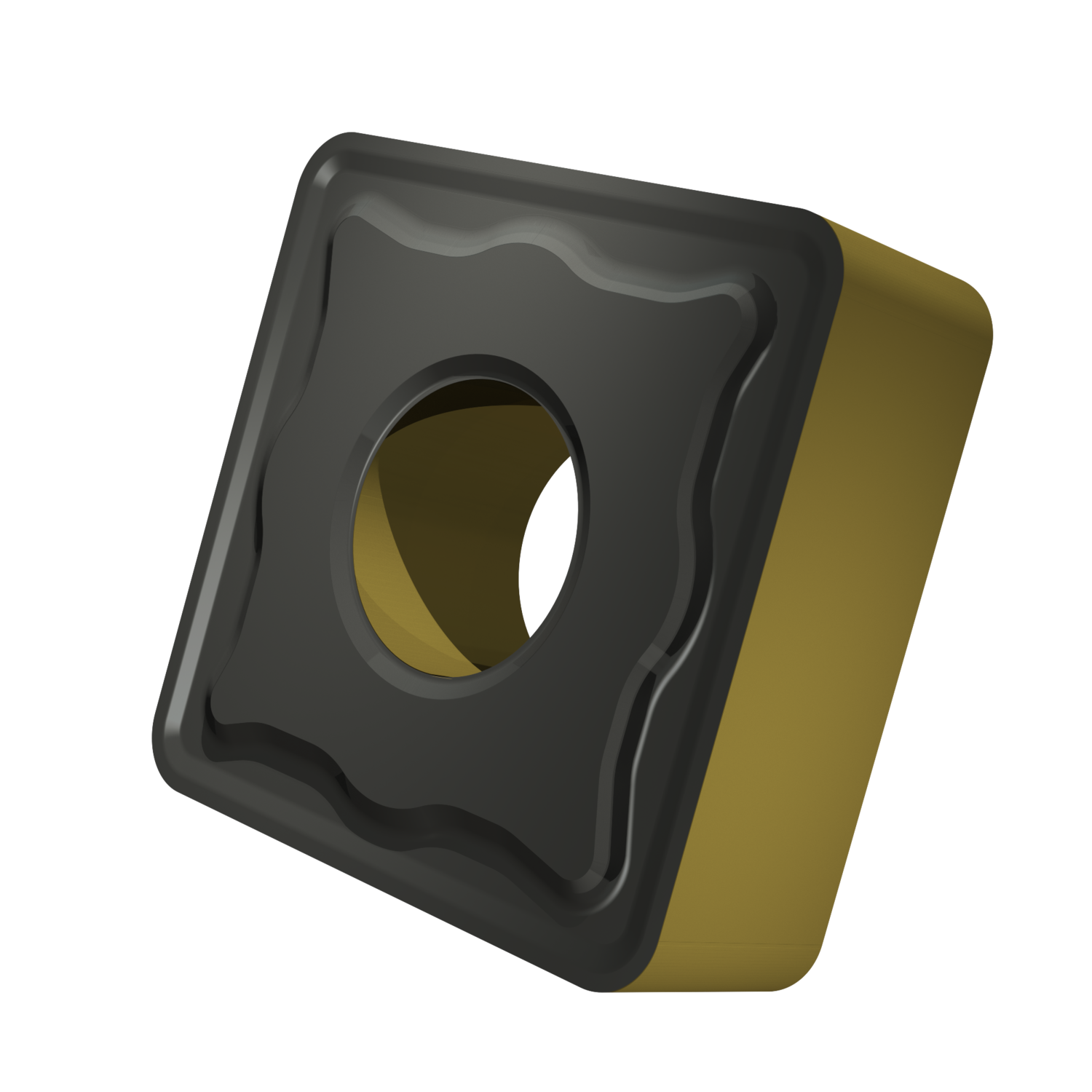

Double-sided negative turning insert, square, with an indexing accuracy according to ISO-tolerance class-M, coated WC-Co carbide.

Weight	0.0098 kg
barcode	3603604188586
Additional Information	Description: Value EAN number: 3603604188586 Product number (SAP): 80036020 Ordering code ANSI: SNMG 433-RK:T5010 Gross weight – grams: 9.78 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 12.7 mm Insert thickness – millimeter (S): 4.76 mm Grade: T5010 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMG Insert size: 12 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): RK Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMG120412-RK:T5010
