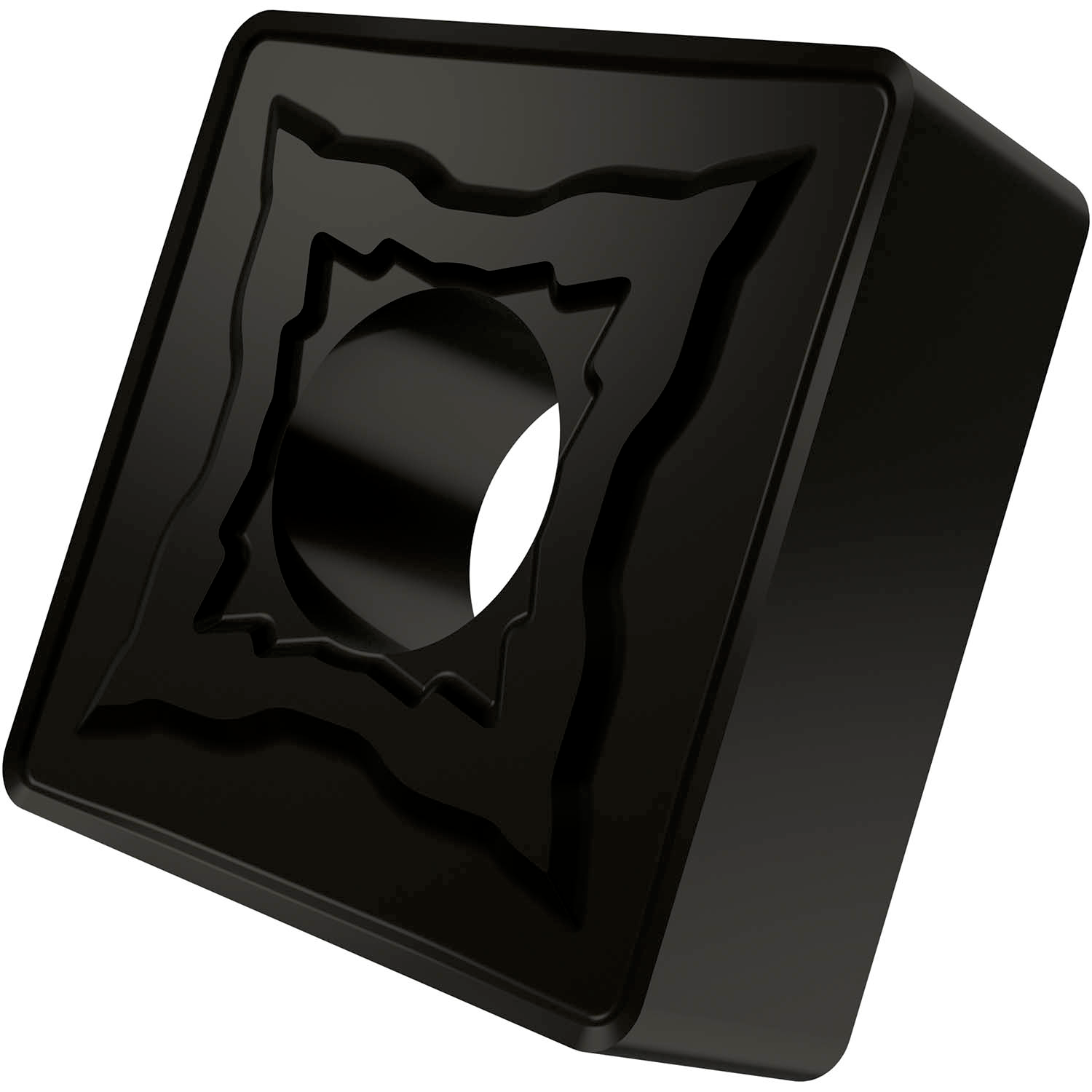

PRAMET SNMG 120416E-NMR:T7325 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 12.7mm, 4.76mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NMR with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10 -M25 and S10 -S25, for fine to heavy machining of stainless-steels and super-alloys

Additional information

Weight	0.0215 kg
barcode
Additional Information	Description: Value EAN number: 3603603164673 Product number (SAP): 80027893 Ordering code ANSI: SNMG 434-NMR:T7325 Gross weight – grams: 8.878 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 12.7 mm Insert thickness – millimeter (S): 4.76 mm Grade: T7325 Corner radius – millimeter (RE): 1.6 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMG Insert size: 12 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NMR Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMG120416E-NMR:T7325

Need Technical Advice?

Description

Additional information

Brand

PRAMET
