PRAMET SNMG 150612E-RM:T6310 Turning inserts negative

Product Code: SNMG 150612E-RM:T6310

$35.23$32.03 Ex. GST

Product Code: SNMG 150612E-RM:T6310 SKU SNMG 150612E-RM:T6310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

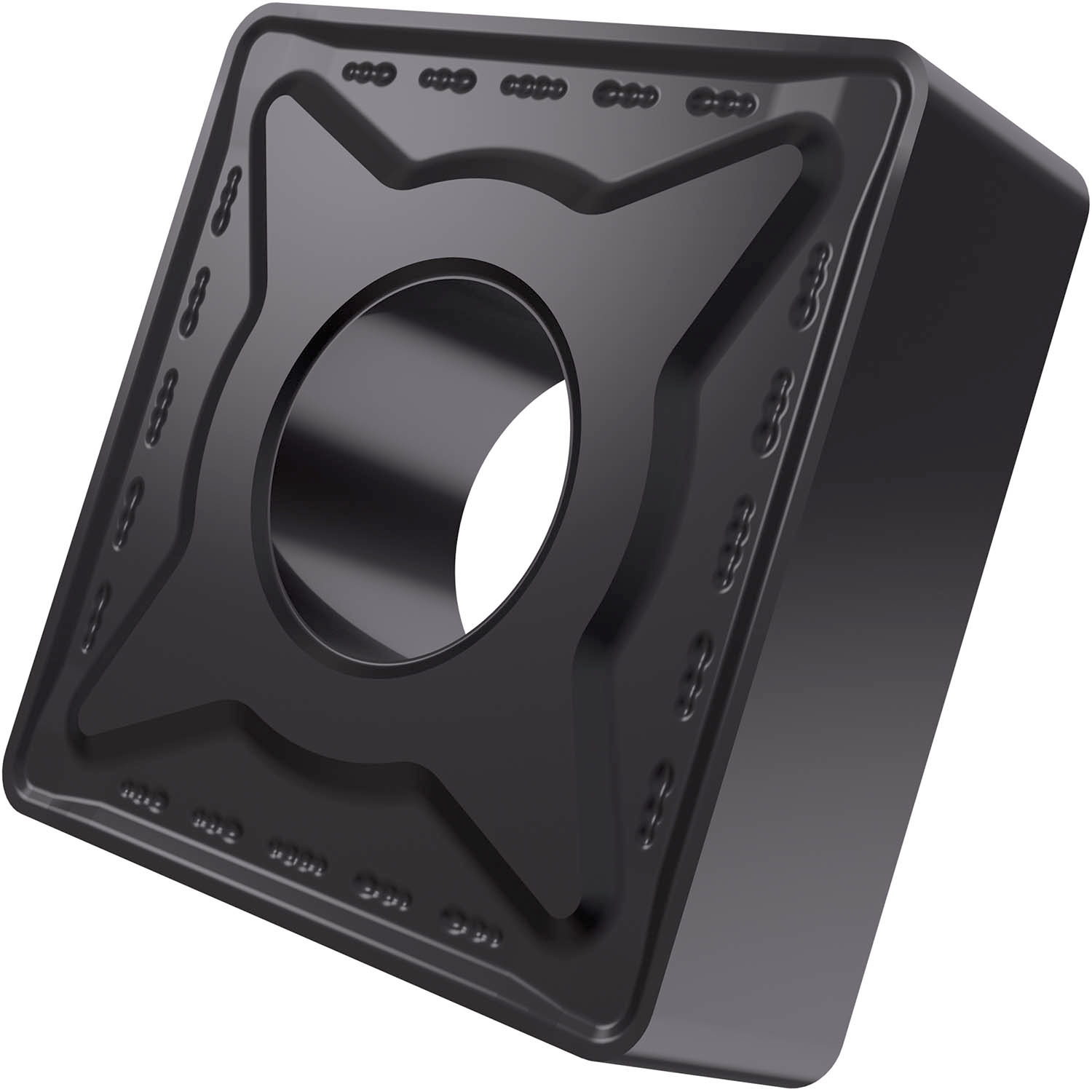

Double-sided negative turning insert, square with inscribed circle diameter of 15.875mm, 6.35mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15 and K05 -K20, for medium to heavy machining of steels, stainless-steels and cast-irons

Additional information

Weight 0.0342 kg
barcode
Additional Information

Description: Value
EAN number: 3603603076068
Product number (SAP): 80026247
Ordering code ANSI: SNMG 543-RM:T6310
Gross weight – grams: 19.96
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 6.35 mm
Cutting edge length – millimeter (L): 15.875 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T6310
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert Design: SNMG
Insert size: 15
Insert Thickness: 06
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): S – square
Tool Design: SN
Insert Geometry: Negative
ISO: SNMG150612E-RM:T6310

Brand

PRAMET
