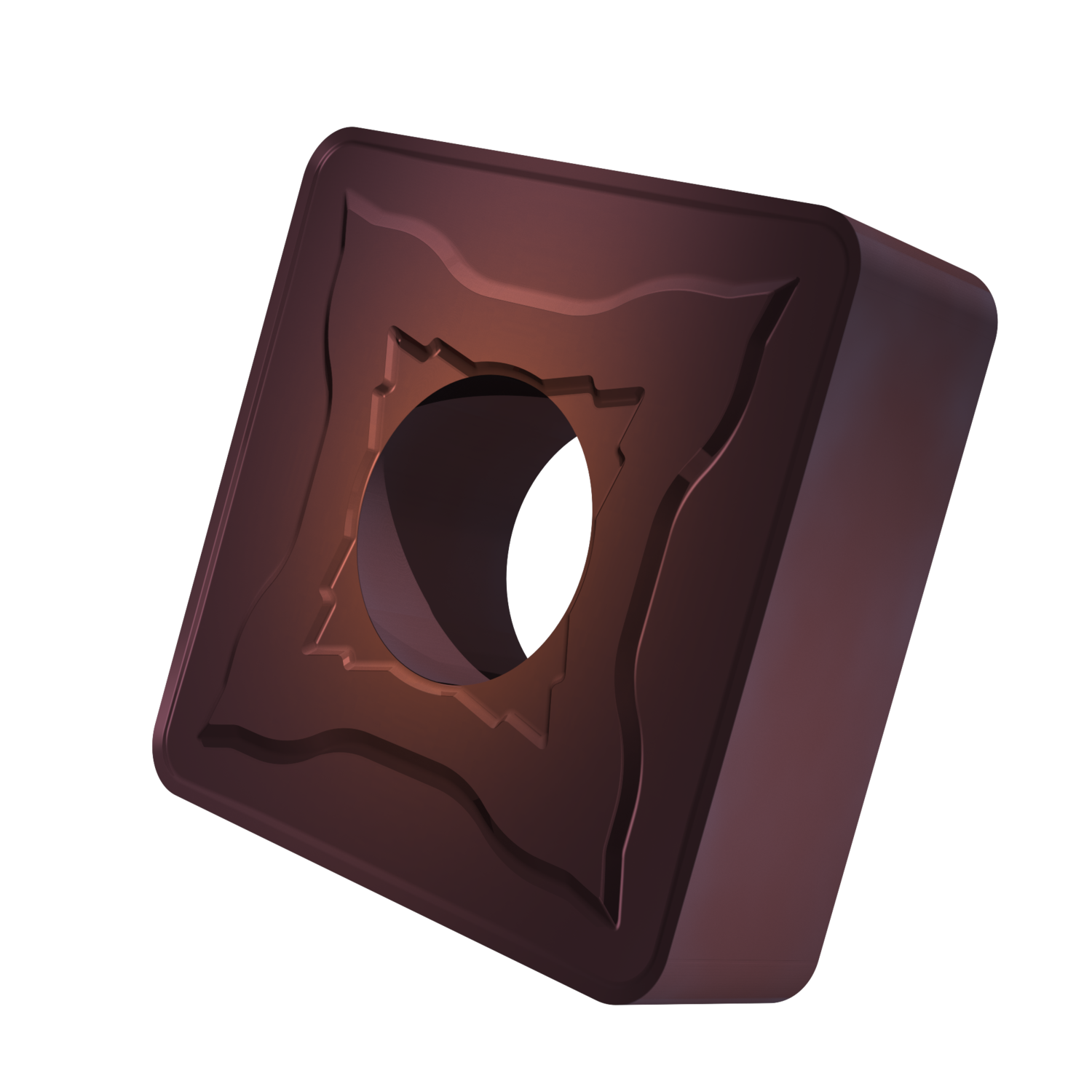

PRAMET SNMG 190616E-NMR:T8430 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NMR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to heavy machining of steels and stainless-steels

Additional information

Weight	0.0278 kg
barcode	3603604108232
Additional Information	Description: Value EAN number: 3603604108232 Product number (SAP): 80035356 Ordering code ANSI: SNMG 644-NMR:T8430 Gross weight – grams: 30.34 Inscribed circle diameter – millimeter (IC): 19.05 mm Fixing hole diameter – millimeter (D1): 7.94 mm Cutting edge length – millimeter (L): 19.05 mm Insert thickness – millimeter (S): 6.35 mm Grade: T8430 Corner radius – millimeter (RE): 1.6 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMG Insert size: 19 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NMR Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMG190616E-NMR:T8430
