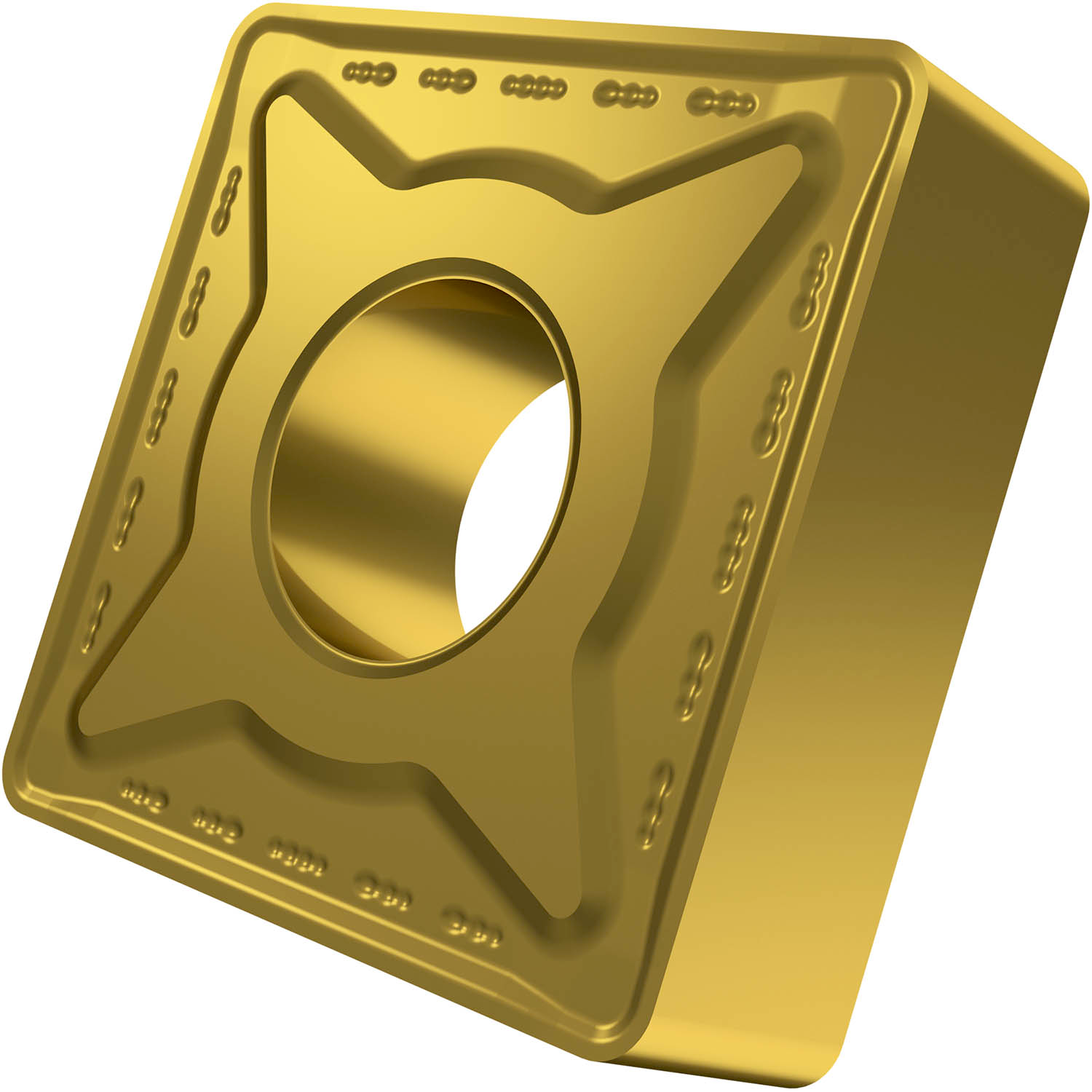

PRAMET SNMG 250924E-RM:T9226 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for medium to heavy machining of steels and stainless-steels

Additional information

Weight	0.093 kg
barcode
Additional Information	Description: Value EAN number: 3603603079021 Product number (SAP): 80026578 Ordering code ANSI: SNMG 866-RM:T9226 Gross weight – grams: 75.504 Inscribed circle diameter – millimeter (IC): 25.4 mm Fixing hole diameter – millimeter (D1): 9.12 mm Cutting edge length – millimeter (L): 25.4 mm Insert thickness – millimeter (S): 9.525 mm Grade: T9226 Corner radius – millimeter (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMG Insert size: 25 Insert Thickness: 09 Insert Type: G Chipbreaker manufacturer's designation (CBMD): RM Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMG250924E-RM:T9226

Need Technical Advice?

Description

Additional information

Brand

PRAMET
