Description: Value
EAN number: 3603602874573
Product number (SAP): 80005486
Ordering code ANSI: SNMM 644-OR:6630
Gross weight – grams: 24.7
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 19.05 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: 6630
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°

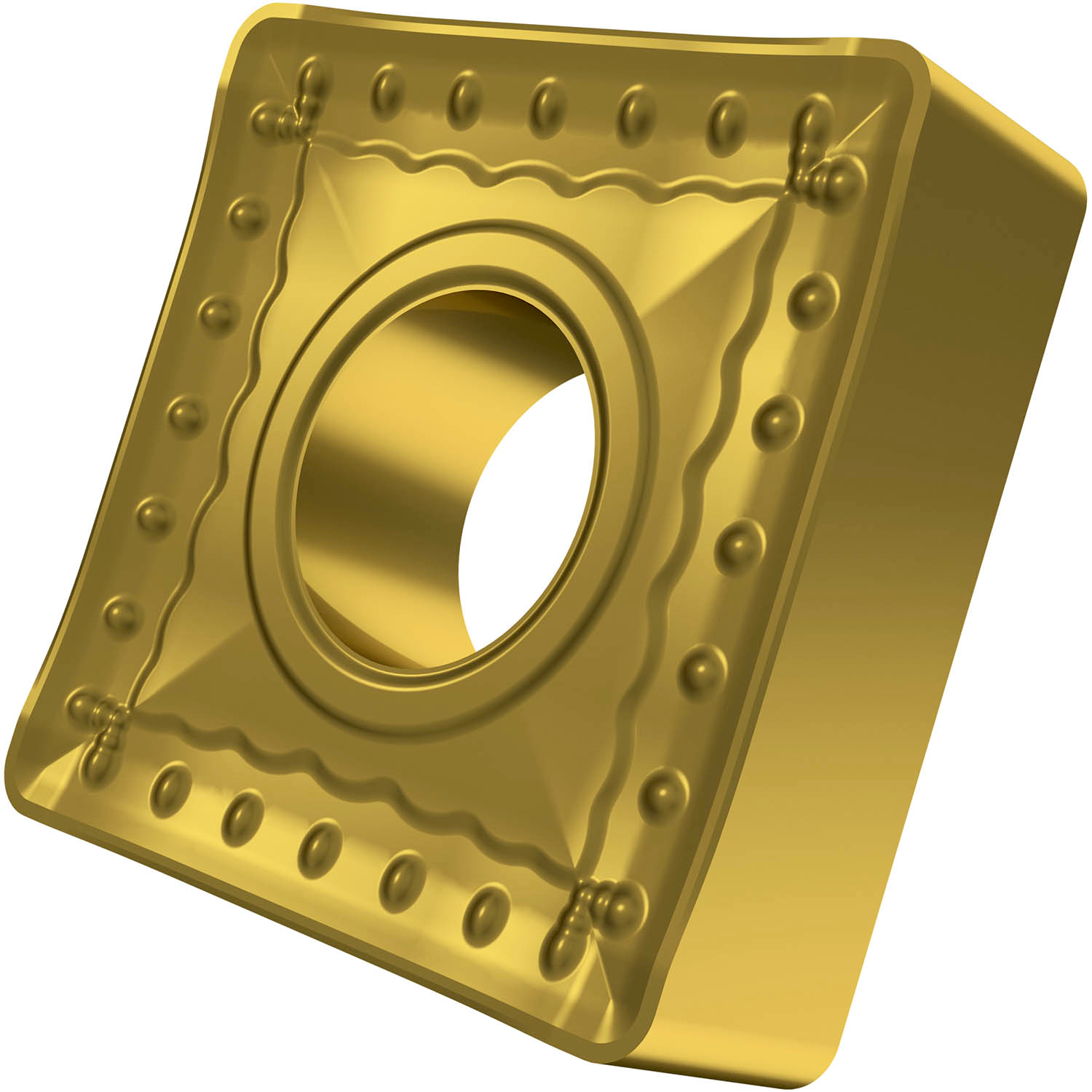

Insert Design: SNMM
Insert size: 19
Insert Thickness: 06
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): OR_
Insert shape code (SC): S – square
Tool Design: SN
Insert Geometry: Negative
ISO: SNMM190616E-OR:6630
|
