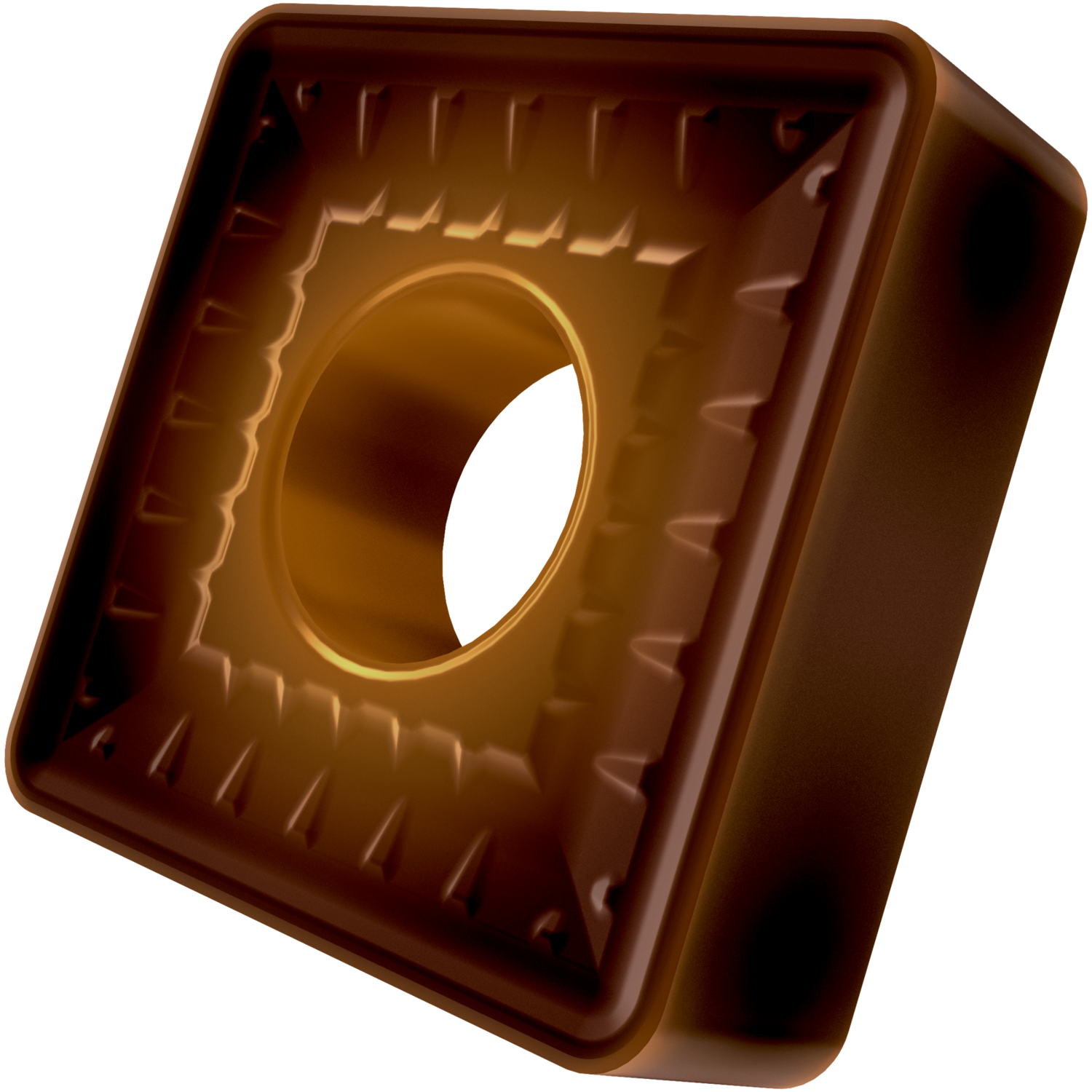

PRAMET SNMM 190616S-923:T8430 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker 923 with rounded cutting edges with facet, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for heavy to extra heavy machining of steels and stainless-steels

Additional information

Weight	0.0477 kg
barcode
Additional Information	Description: Value EAN number: 3603603819832 Product number (SAP): 80033205 Ordering code ANSI: SNMM 644S-923:T8430 Gross weight – grams: 26.779 Inscribed circle diameter – millimeter (IC): 19.05 mm Fixing hole diameter – millimeter (D1): 7.94 mm Cutting edge length – millimeter (L): 19.05 mm Insert thickness – millimeter (S): 6.35 mm Grade: T8430 Corner radius – millimeter (RE): 1.6 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 19 Insert Thickness: 06 Insert Type: M Chipbreaker manufacturer's designation (CBMD): 923 Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM190616S-923:T8430
