PRAMET SNMM 250724S-923:T9335 Turning inserts negative

Description

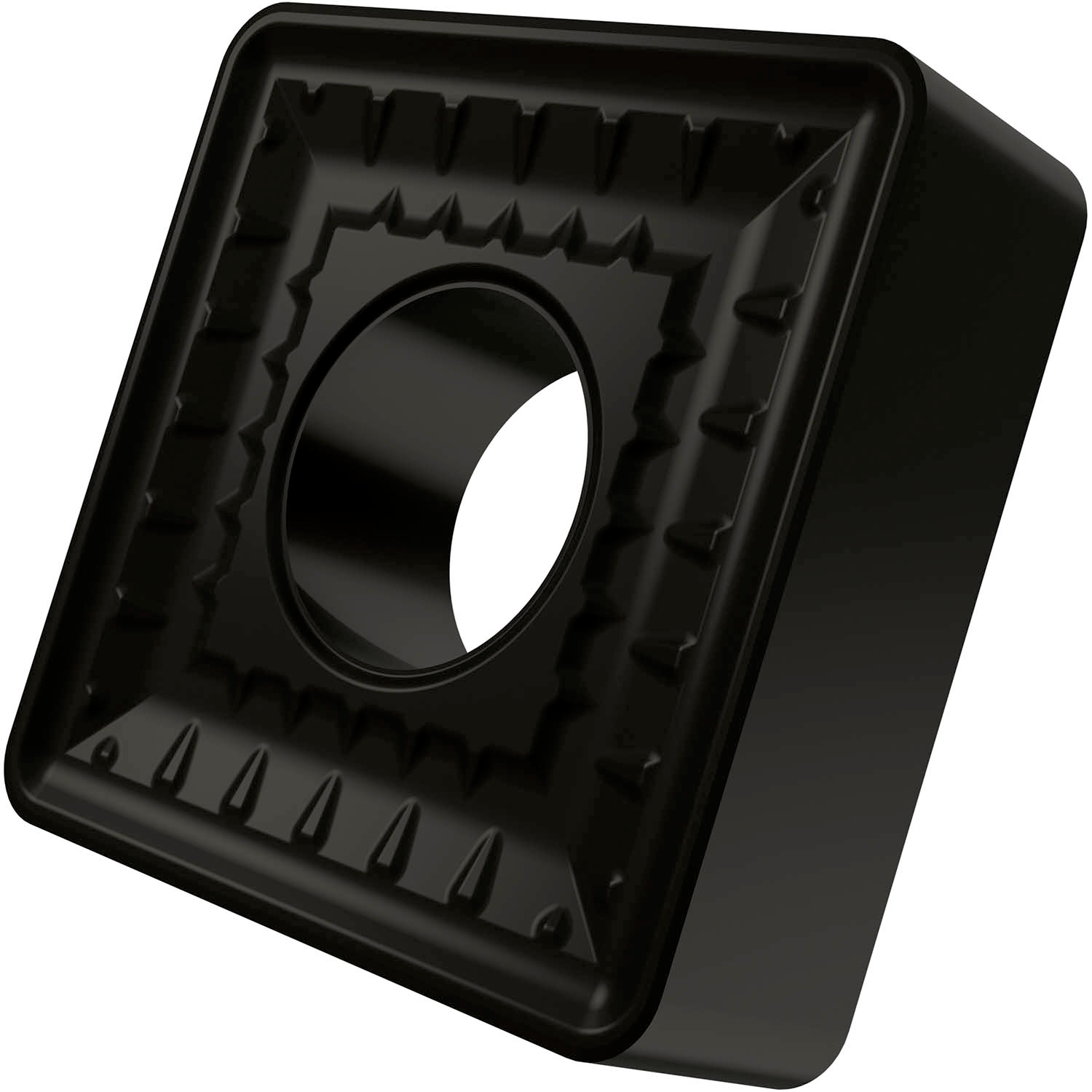

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 7.94mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker 923 with rounded cutting edges with facet, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20 -P45 and M15 -M40, for heavy to extra heavy machining of steels and stainless-steels

Additional information

Weight	0.0853 kg
barcode
Additional Information	Description: Value EAN number: 3603602903310 Product number (SAP): 80017303 Ordering code ANSI: SNMM 856-923:T9335 Gross weight – grams: 57.709 Inscribed circle diameter – millimeter (IC): 25.4 mm Fixing hole diameter – millimeter (D1): 9.12 mm Cutting edge length – millimeter (L): 25.4 mm Insert thickness – millimeter (S): 7.94 mm Grade: T9335 Corner radius – millimeter (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 25 Insert Thickness: 07 Insert Type: M Chipbreaker manufacturer's designation (CBMD): 923 Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM250724S-923:T9335
