PRAMET SNMM 250924E-HR:T9315 Turning inserts negative

Product Code: SNMM 250924E-HR:T9315

$98.01$89.10 Ex. GST

Product Code: SNMM 250924E-HR:T9315 SKU SNMM 250924E-HR:T9315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

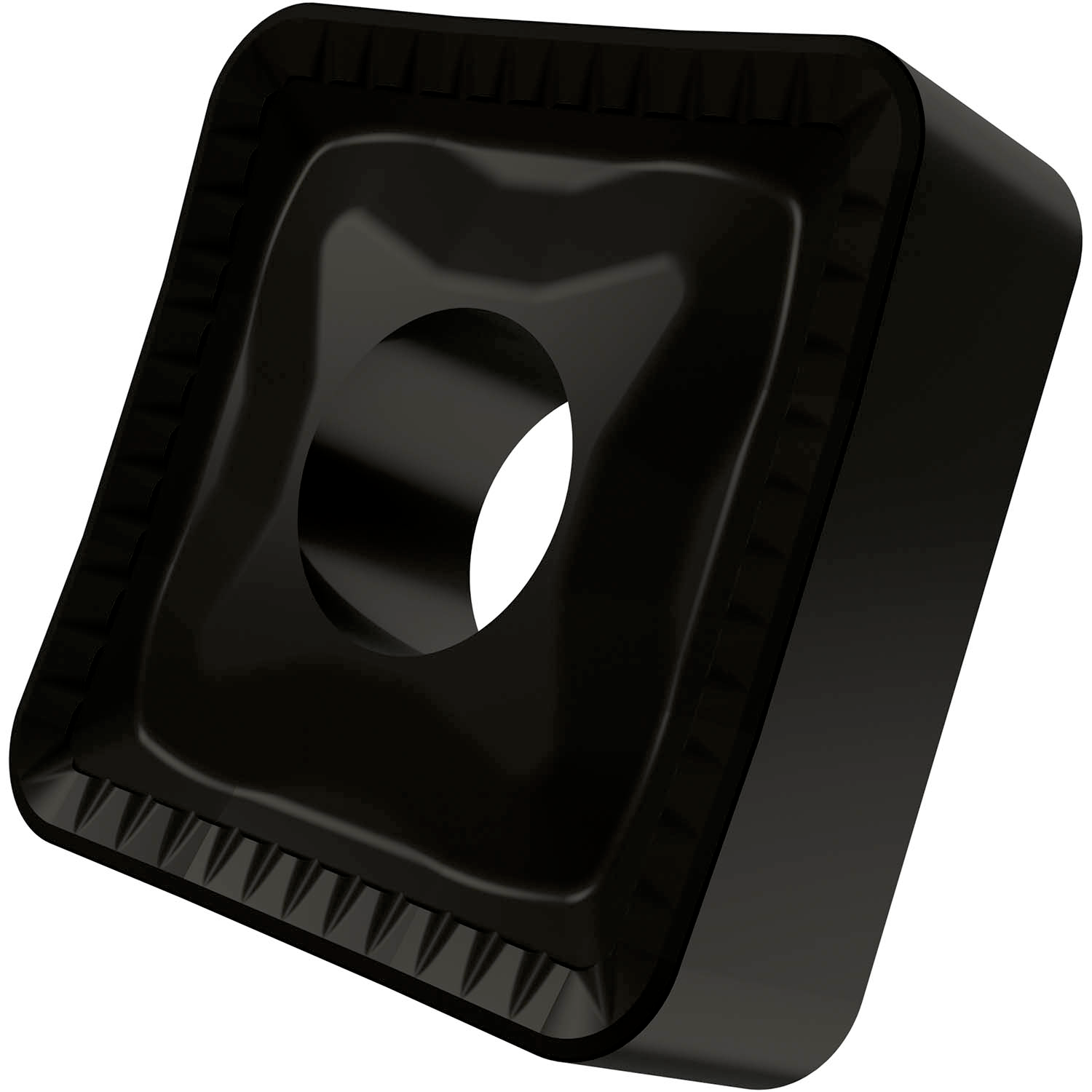

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker HR with rounded cutting edges, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P25, for heavy to extra heavy machining of steels

Additional information

Weight 0.0952 kg
barcode
Additional Information

Description: Value
EAN number: 3603603080119 Product number (SAP): 80025765 Ordering code ANSI: SNMM 866-HR:T9315 Gross weight: 71.25 grams Inscribed circle diameter (IC): 25.4 mm Fixing hole diameter (D1): 9.12 mm Cutting edge length (L): 25.4 mm Insert thickness (S): 9.525 mm Grade: T9315 Corner radius (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 25 Insert Thickness: 09 Insert Type: M Chipbreaker manufacturer's designation (CBMD): HR Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM250924E-HR:T9315

Brand

PRAMET
