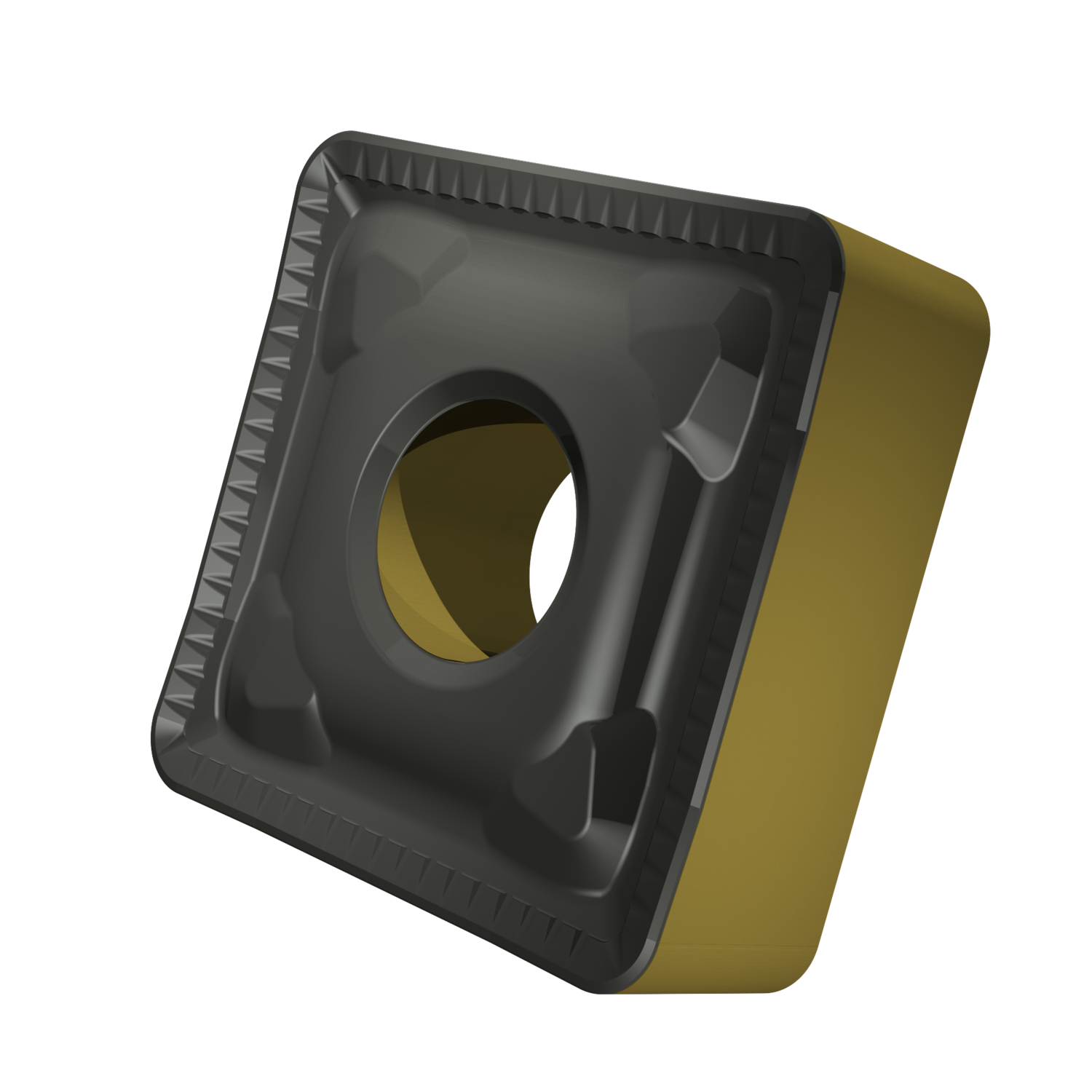

PRAMET SNMM 250924E-HR:T9415 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker HR with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to extra heavy machining of steels

Additional information

Weight	0.0712 kg
barcode	3603603953321
Additional Information	Description: Value EAN number: 3603603953321 Product number (SAP): 80034368 Ordering code ANSI: SNMM 866-HR:T9415 Gross weight: 74.1 grams Inscribed circle diameter (IC): 25.4 mm Fixing hole diameter (D1): 9.12 mm Cutting edge length (L): 25.4 mm Insert thickness (S): 9.525 mm Grade: T9415 Corner radius (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 25 Insert Thickness: 09 Insert Type: M Chipbreaker manufacturer's designation (CBMD): HR Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM250924E-HR:T9415
