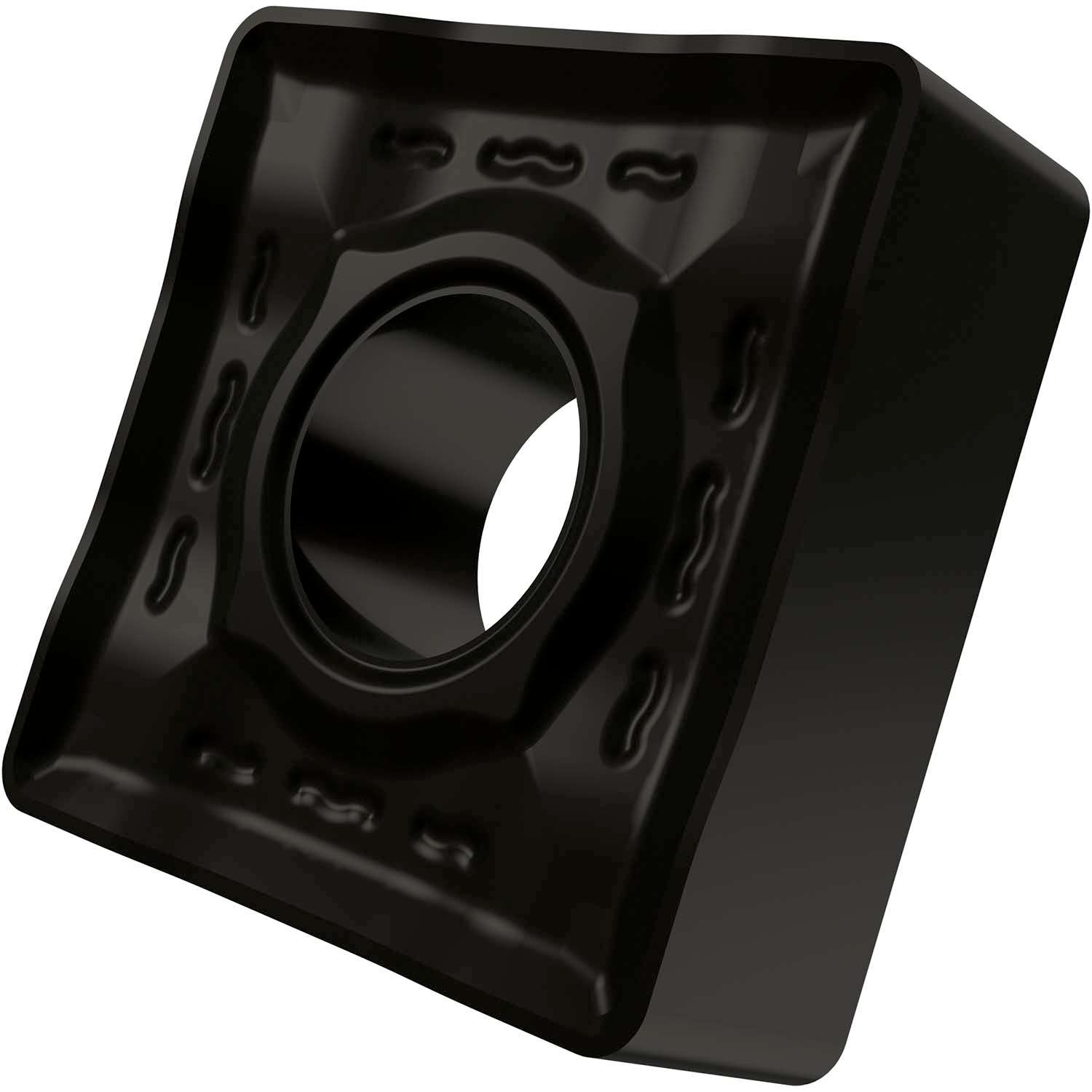

PRAMET SNMM 250924E-NR2:T9325 Turning inserts negative

Description

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for medium to extra heavy machining of steels and stainless-steels

Additional information

Weight	0.0952 kg
barcode
Additional Information	Description: Value EAN number: 3603602895202 Product number (SAP): 80016241 Ordering code ANSI: SNMM 866-NR2:T9325 Gross weight: 73.15 grams Inscribed circle diameter (IC): 25.4 mm Fixing hole diameter (D1): 9.12 mm Cutting edge length (L): 25.4 mm Insert thickness (S): 9.525 mm Grade: T9325 Corner radius (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 25 Insert Thickness: 09 Insert Type: M Chipbreaker manufacturer's designation (CBMD): NR2 Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM250924E-NR2:T9325

Need Technical Advice?

Description

Additional information

Brand

PRAMET
