PRAMET SNMM 250924S-923:T9415 Turning inserts negative

Description

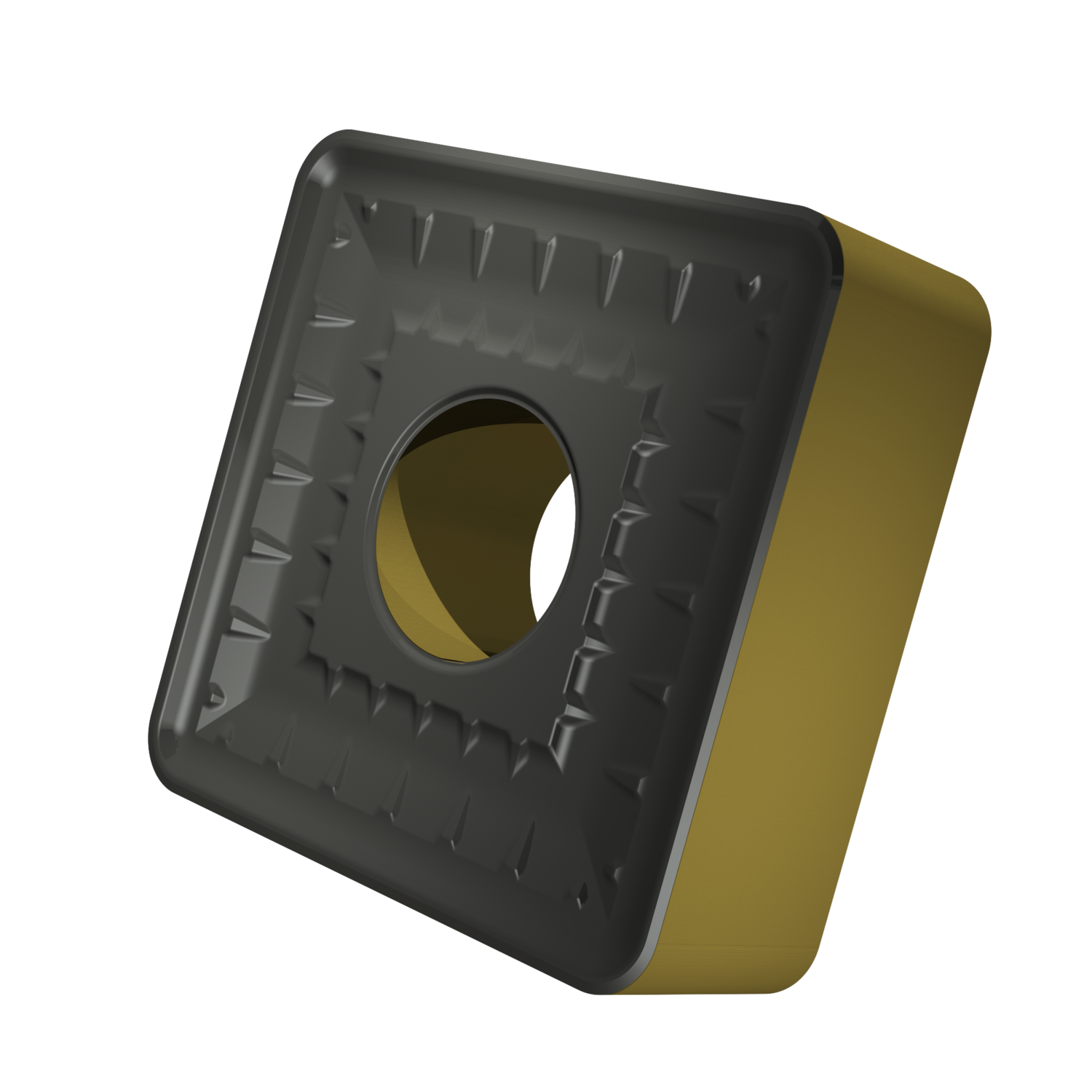

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker 923 with rounded cutting edges with facet, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to extra heavy machining of steels

Additional information

Weight	0.0718 kg
barcode	3603604109086
Additional Information	Description: Value EAN number: 3603604109086 Product number (SAP): 80035449 Ordering code ANSI: SNMM 866S-923:T9415 Gross weight – grams: 71.765 Inscribed circle diameter – millimeter (IC): 25.4 mm Fixing hole diameter – millimeter (D1): 9.12 mm Cutting edge length – millimeter (L): 25.4 mm Insert thickness – millimeter (S): 9.525 mm Grade: T9415 Corner radius – millimeter (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: SNMM Insert size: 25 Insert Type: M Chipbreaker manufacturer's designation (CBMD): 923 Insert shape code (SC): S – square Tool Design: SN Insert Geometry: Negative ISO: SNMM250924S-923:T9415
