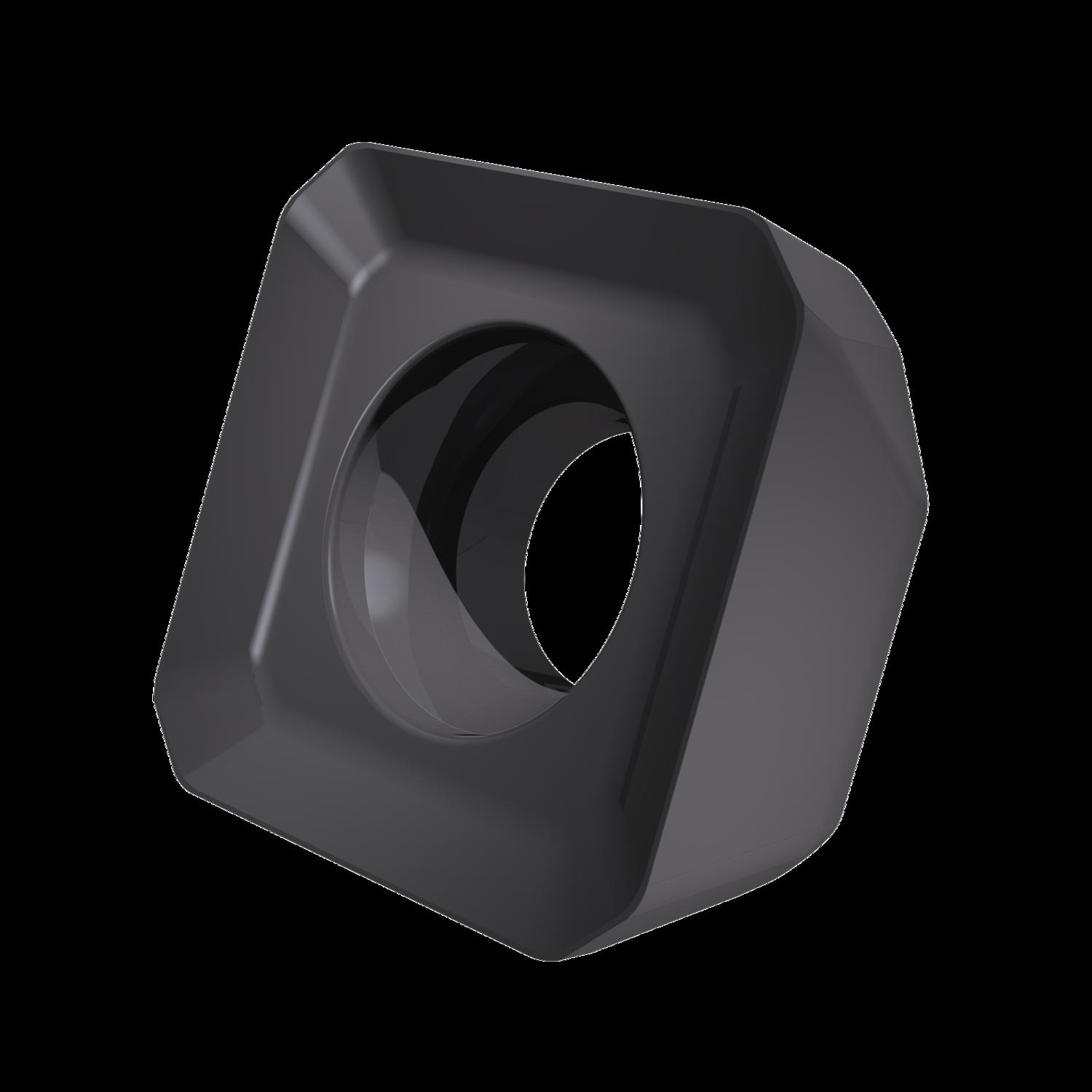

PRAMET SNMT 1205AZSR-M:8215 Milling – other and drilling inserts clamped by screw

Product Code: SNMT 1205AZSR-M:8215

$33.31$30.28 Ex. GST

Product Code: SNMT 1205AZSR-M:8215 SKU SNMT 1205AZSR-M:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10 -P20 for machining of steel with face mills SSN12Z

Additional information

Weight 0.0323 kg
barcode
Additional Information

Description: Value
EAN number: 3603602887825
Product number (SAP): 80014618
Ordering code ANSI: SNMT 1205AZSR-M:8215
Gross weight – grams: 8.998
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.2 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: 8215
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SNMT1205AZSR-M:8215

Brand

PRAMET
