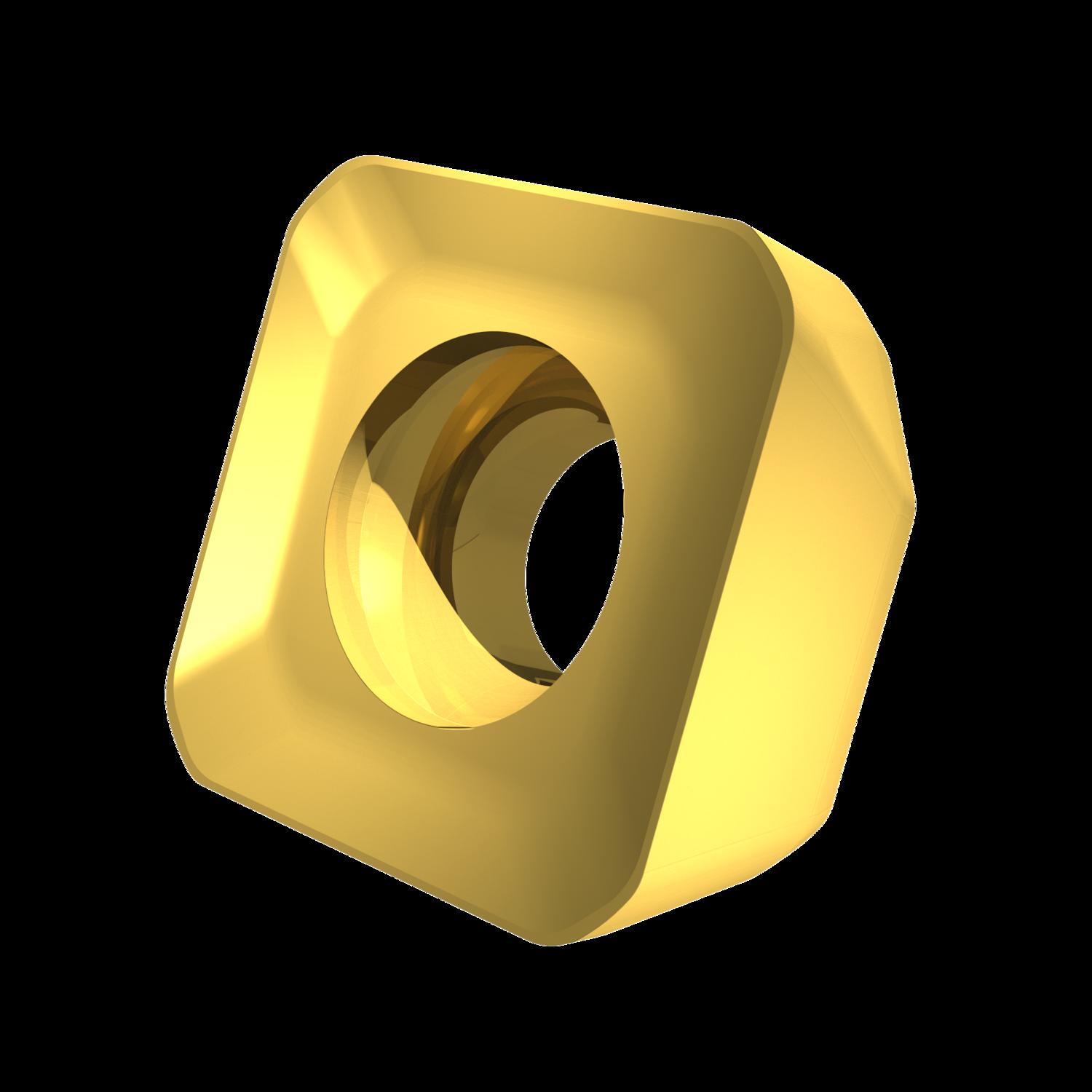

PRAMET SNMT 1205AZSR-R:M8340 Milling - other and drilling inserts clamped by screw

Description

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with face mills SSN12Z

Additional information

Weight	0.0331 kg
barcode
Additional Information	Description: Value EAN number: 3603602995179 Product number (SAP): 80025091 Ordering code ANSI: SNMT 1205AZSR-R:M8340 Gross weight – grams: 9.041 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.2 mm Insert thickness – millimeter (S): 5.56 mm Grade: M8340 Insert Clearance Code and Angle: N 0° Insert size: 12 Insert Thickness: 05 Insert Type: T Chipbreaker manufacturer's designation (CBMD): R Insert shape code (SC): S – square ISO: SNMT1205AZSR-R:M8340

PRAMET SNMT 1205AZSR-R:M8340 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
