PRAMET SNMX 170508SR-M:M9340 Milling – other and drilling inserts clamped by screw

Product Code: SNMX 170508SR-M:M9340

$41.02$37.29 Ex. GST

Product Code: SNMX 170508SR-M:M9340 SKU SNMX 170508SR-M:M9340 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

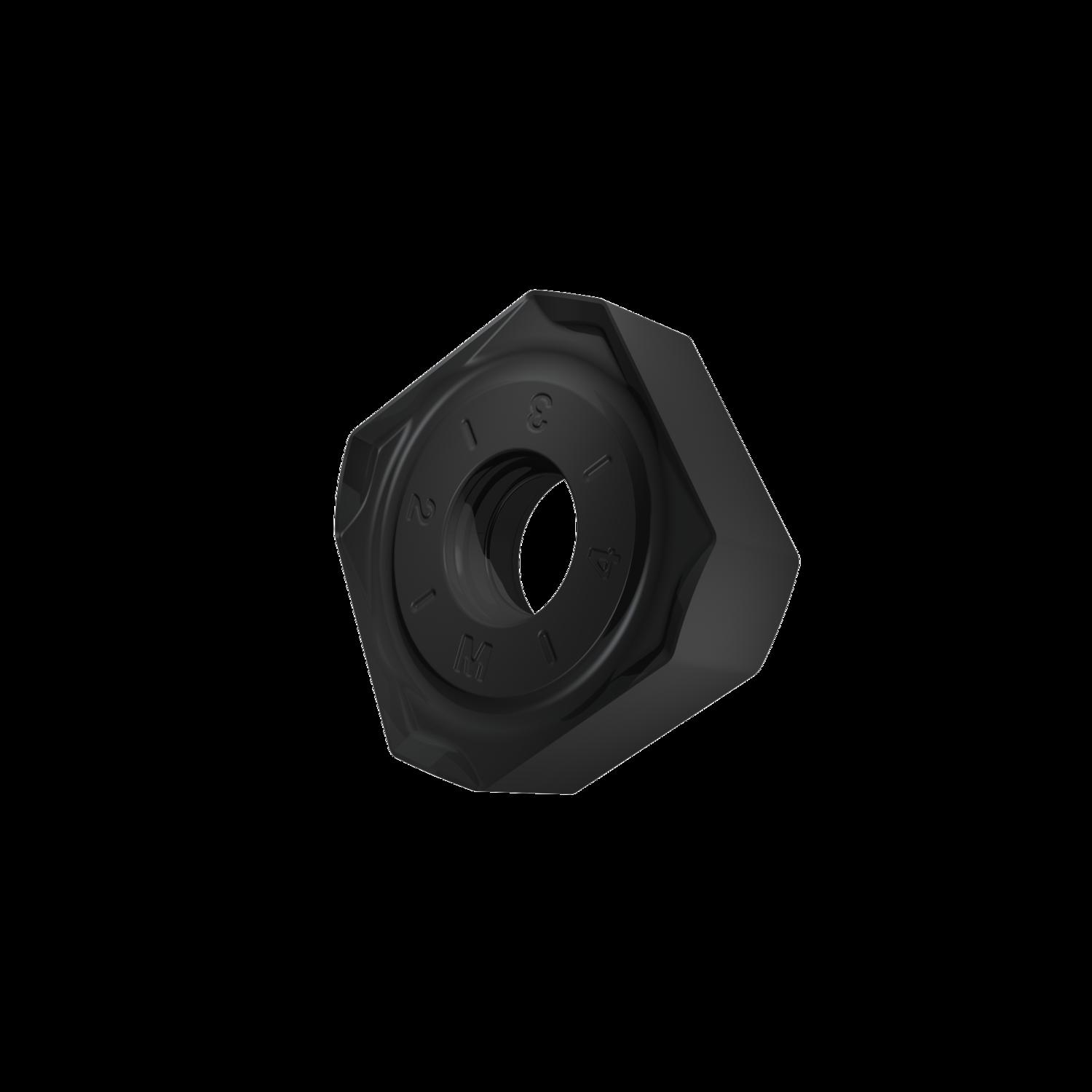

Double-sided milling insert SNMX 1705, square for a maximum depth of cut of 7mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range P35 -P50 for machining of steel with face mills SON06C

Additional information

Weight 0.0048 kg
barcode

3603604108614

Additional Information

Description: Value
EAN number: 3603604108614
Product number (SAP): 80035612
Ordering code ANSI: SNMX 170508SR-M:M9340
Gross weight – grams: 4.798
Inscribed circle diameter – millimeter (IC): 17 mm
Fixing hole diameter – millimeter (D1): 5.7 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: M9340
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SNMX170508SR-M:M9340
