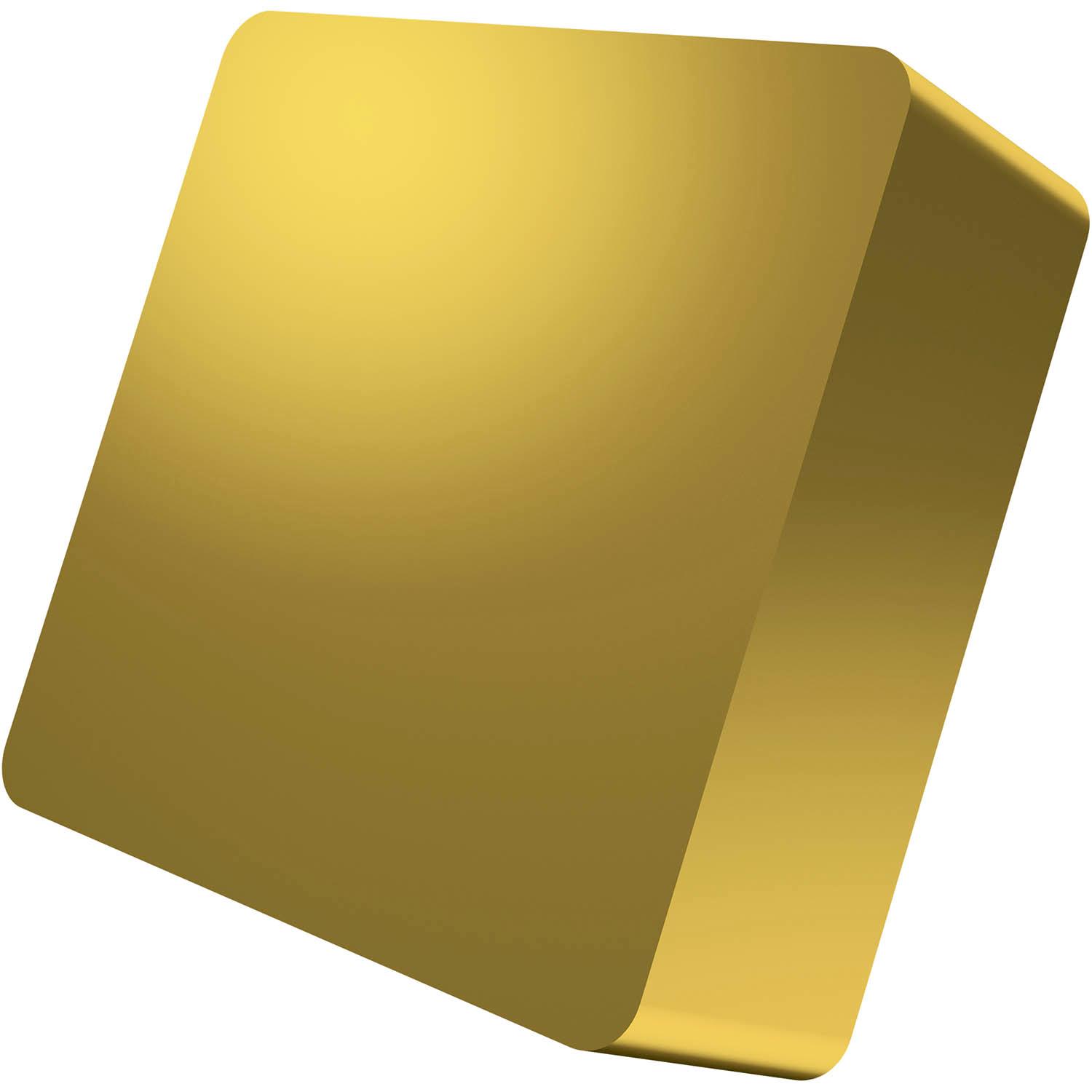

PRAMET SNUN 120408:M8330 Milling inserts clamped by wedge

Product Code: SNUN 120408:M8330

$18.02$16.38 Ex. GST

Product Code: SNUN 120408:M8330 SKU SNUN 120408:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert SNUN 1204 with a plane rake surface, square for a maximum depth of cut of 9.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0175 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389359
Product number (SAP): 80030201
Ordering code ANSI: SNU 432:M8330
Gross weight – grams: 12.12
Inscribed circle diameter – millimeter (IC): 12.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNUN120408:M8330

Brand

PRAMET
