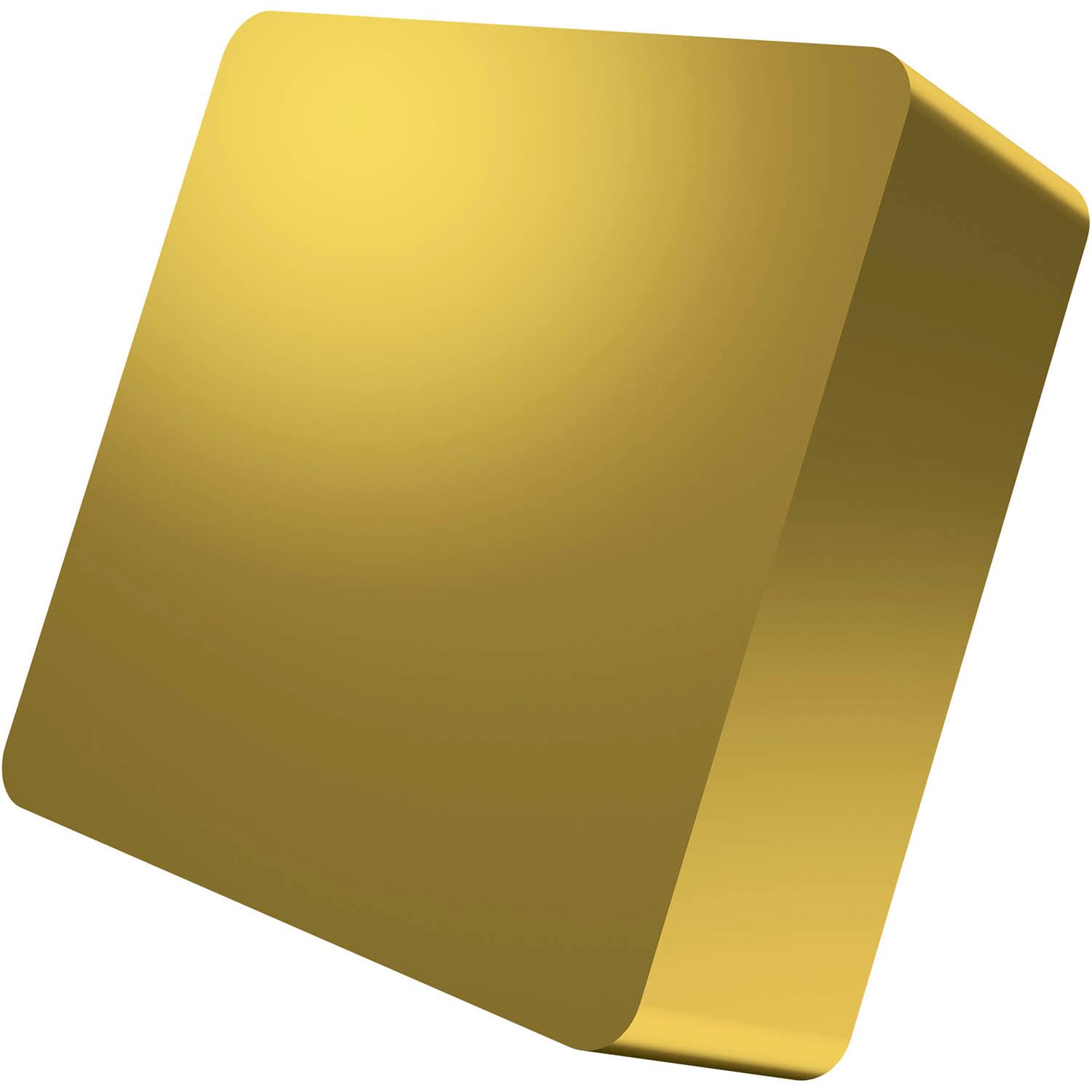

PRAMET SNUN 150412:M8330 Milling inserts clamped by wedge

Product Code: SNUN 150412:M8330

$24.24$22.04 Ex. GST

Product Code: SNUN 150412:M8330 SKU SNUN 150412:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert SNUN 1504 with a plane rake surface, square for a maximum depth of cut of 13.5mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0235 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389373
Product number (SAP): 80030203
Ordering code ANSI: SNU 533:M8330
Gross weight – grams: 17.285
Inscribed circle diameter – millimeter (IC): 15.875 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert size: 15
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNUN150412:M8330

Brand

PRAMET
