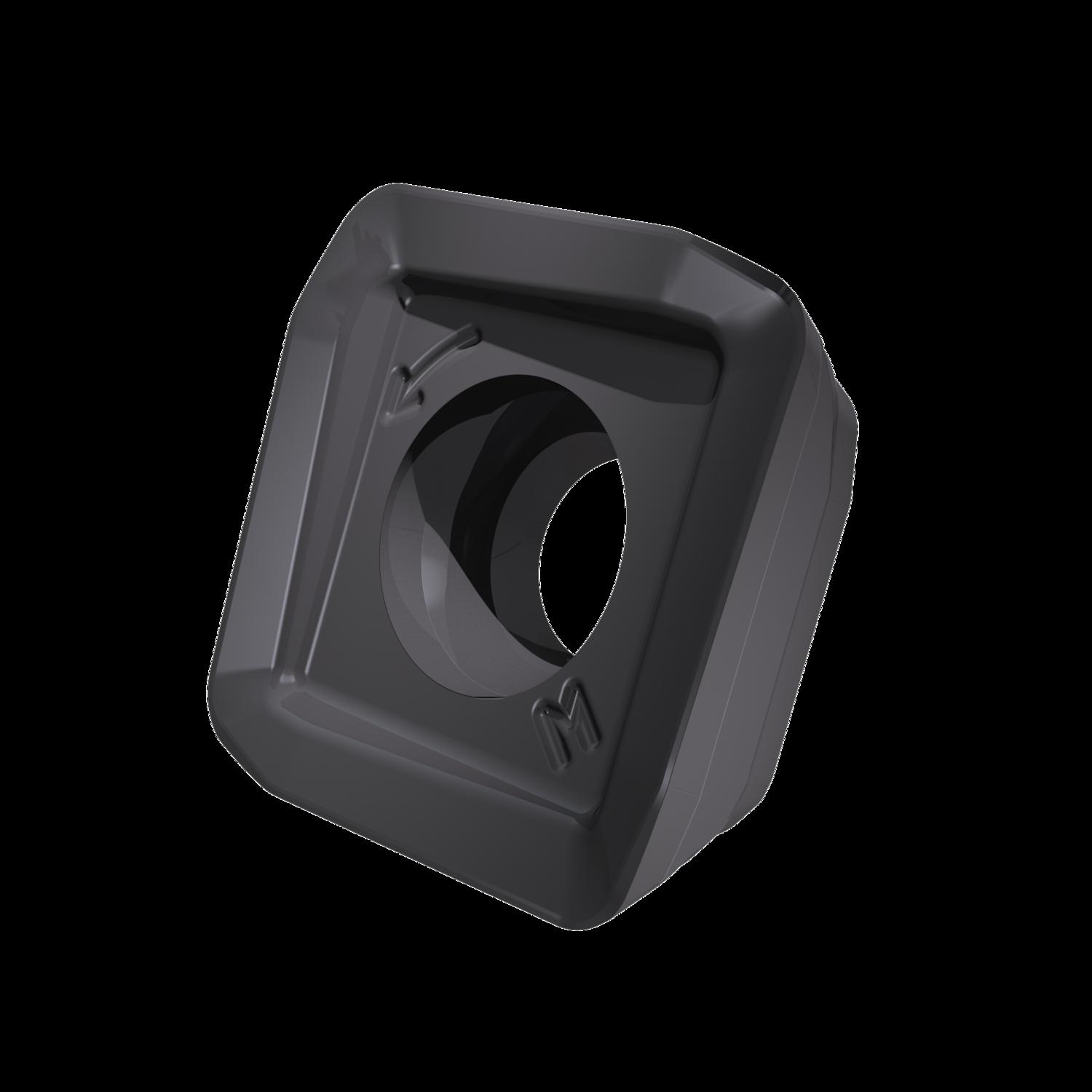

PRAMET SOHT 120514SR-M:8215 Milling Insert for HFC Cutters

Product Code: SOHT 120514SR-M:8215

$30.25$27.50 Ex. GST

Product Code: SOHT 120514SR-M:8215 SKU SOHT 120514SR-M:8215 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided HFC milling insert, square for a maximum depth of cut of 1.9mm, with 1.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-H. M8310, PVD, WC-Co (< 0,5 μm) grade is suitable for Steel and cast steel, Cast Iron, Hardened materials. M geometry is versatile for a wide range of working conditions. Designed with positive rake, medium T-land and rounding of cutting edge for smooth HFC milling

Additional information

Weight 0.0065 kg
barcode

3603604263054

Additional Information

Description: Value
EAN number: 3603604263054
Product number (SAP): 80036231
Ordering code ANSI: SOHT 120514SR-M:8215
Gross weight – grams: 7.58
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Insert thickness – millimeter (S): 5.15 mm
Grade: 8215
Corner radius – millimeter (RE): 1.4 mm
Insert size: 12
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
Tolerance class insert (TC): N
ISO: SOHT120514SR-M:8215
