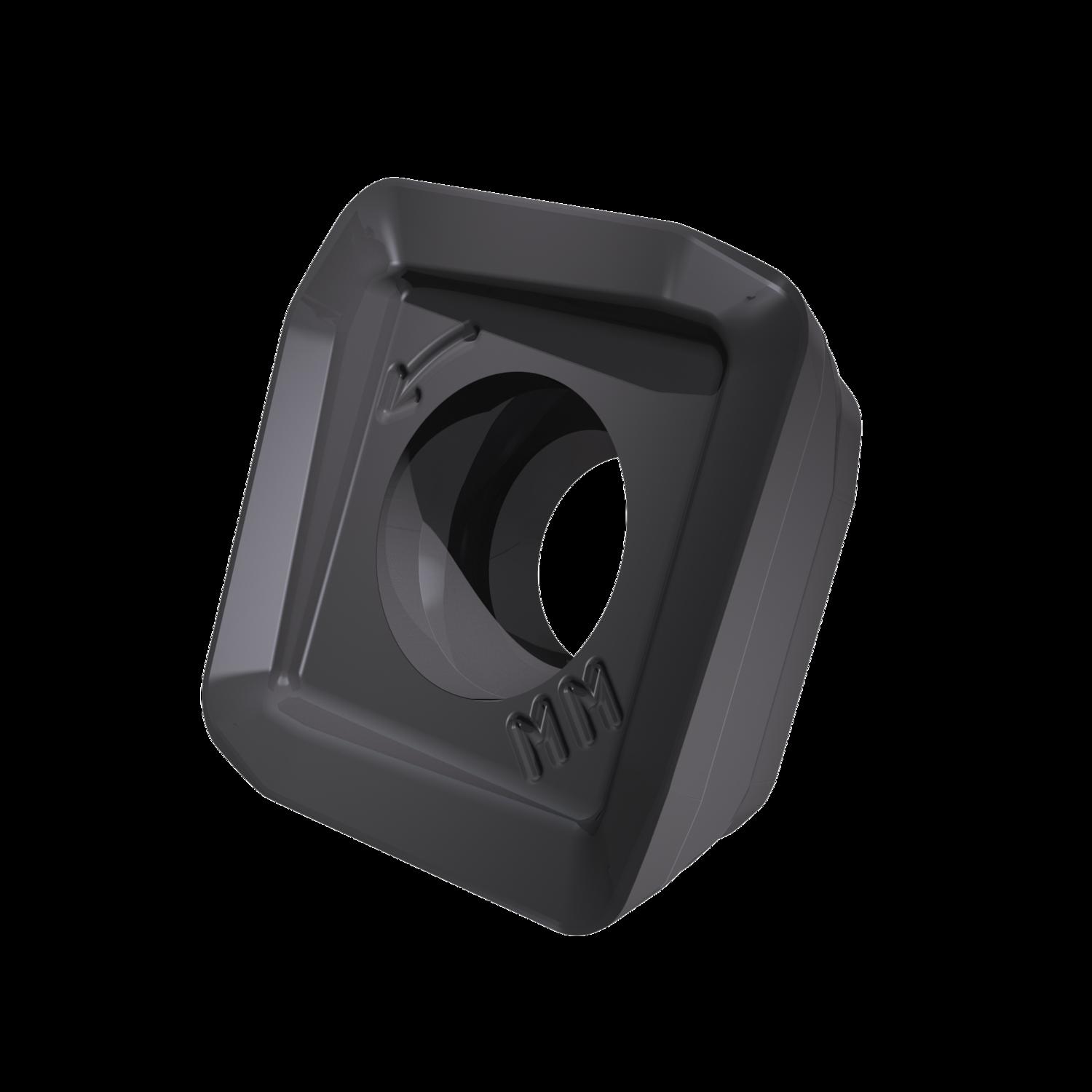

PRAMET SOHT 120514SR-MM:M8345 Milling Insert for HFC Cutters

Product Code: SOHT 120514SR-MM:M8345

$30.93$28.12 Ex. GST

Product Code: SOHT 120514SR-MM:M8345 SKU SOHT 120514SR-MM:M8345 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided HFC milling insert, square for a maximum depth of cut of 1.9mm, with 1.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-H. M8345, PVD, WC-Co grade is suitable for Steel and cast steel, Stainless steel, High-temperature alloys. MM geometry is sharp and suitable for large overhang or thin walled and slim workpiece applications. Designed with positive rake, narrow T-land and rounding of cutting edge for smooth HFC milling

Additional information

Weight 0.0062 kg
barcode

3603604263139

Additional Information

Description: Value
EAN number: 3603604263139
Product number (SAP): 80036239
Ordering code ANSI: SOHT 120514SR-MM:M8345
Gross weight – grams: 7.36
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Insert thickness – millimeter (S): 5.15 mm
Grade: M8345
Corner radius – millimeter (RE): 1.4 mm
Insert size: 12
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): MM
Insert shape code (SC): S – square
Tolerance class insert (TC): N
ISO: SOHT120514SR-MM:M8345
