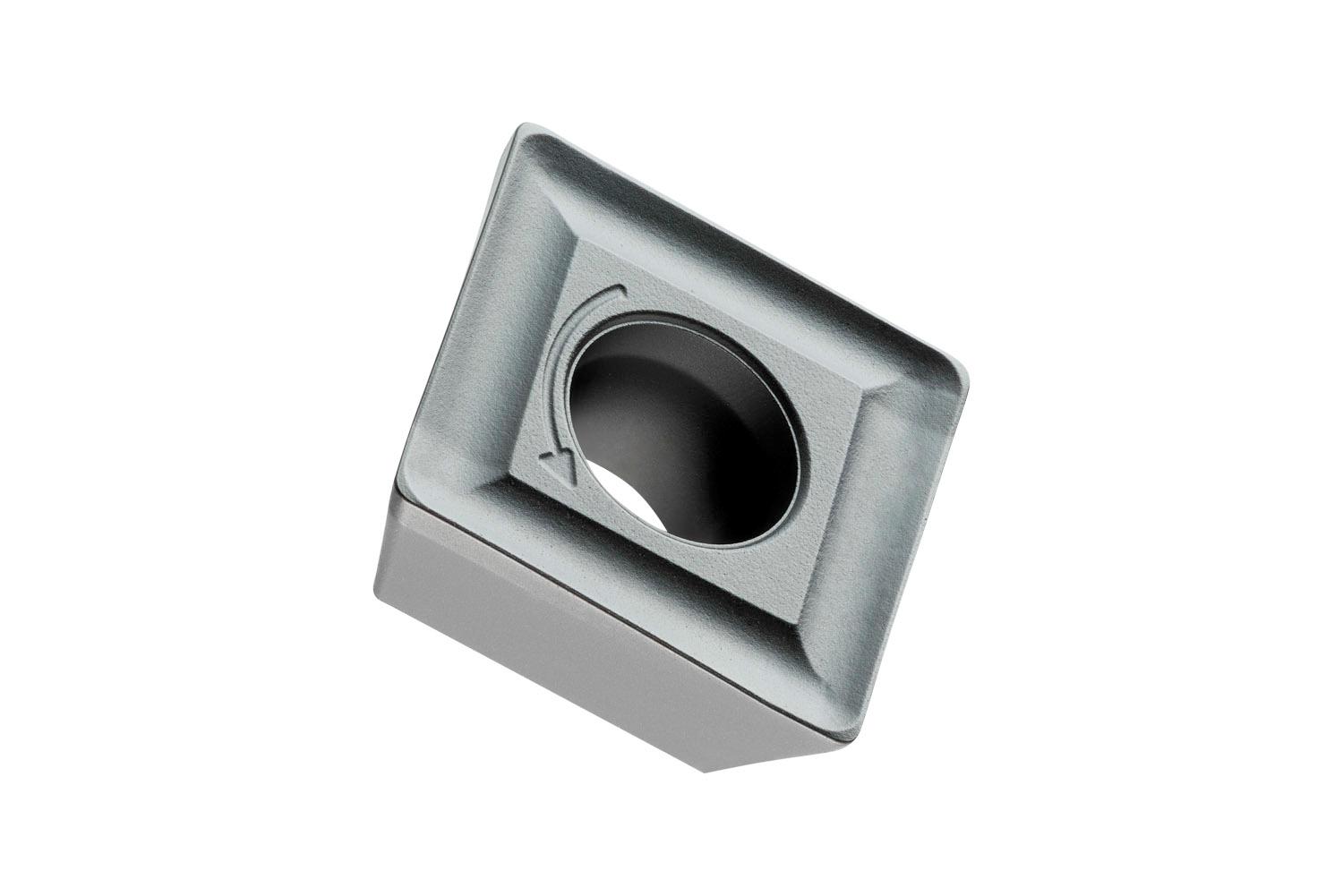

PRAMET SOMT 09T304-MI:M9315 Milling – other and drilling inserts clamped by screw

Product Code: SOMT 09T304-MI:M9315

$24.24$22.04 Ex. GST

Product Code: SOMT 09T304-MI:M9315 SKU SOMT 09T304-MI:M9315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of 8.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-M and MI geometry, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05 -P25 for machining of steel with chamfer mills N-SSO09 or shoulder mills SSO09

Additional information

Weight 0.0235 kg
barcode
Additional Information

Description: Value
EAN number: 3603602899828
Product number (SAP): 80016755
Ordering code ANSI: SOMT 09T304-MI:M9315
Gross weight – grams: 4.43
Inscribed circle diameter – millimeter (IC): 9.55 mm
Fixing hole diameter – millimeter (D1): 3.5 mm
Cutting edge length – millimeter (L): 9.55 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M9315
Corner radius – millimeter (RE): 0.4 mm
Insert size: 09
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): MI
Insert shape code (SC): S – square
ISO: SOMT09T304-MI:M9315

Brand

PRAMET
