PRAMET SOMT 09T304-P:M9325 Milling - other and drilling inserts clamped by screw

Description

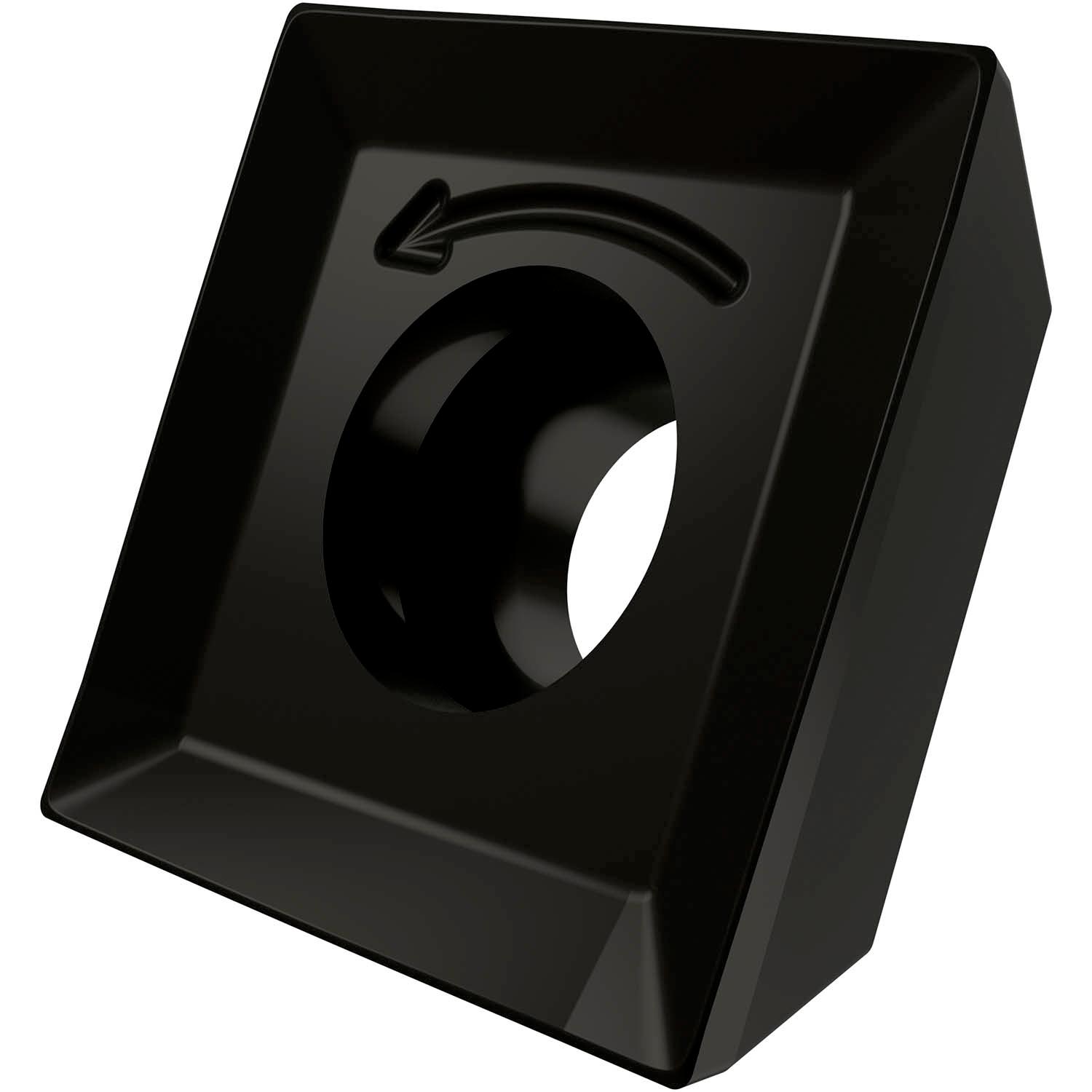

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of 8.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-M and P geometry, M9325 MT-CVD coated WC-Co carbide within ISO-grade range P10 -P30 for machining of steel with chamfer mills N-SSO09 or shoulder mills SSO09

Additional information

Weight	0.0235 kg
barcode
Additional Information	Description: Value EAN number: 3603602899439 Product number (SAP): 80016713 Ordering code ANSI: SOMT 09T304-P:M9325 Gross weight – grams: 2.912 Inscribed circle diameter – millimeter (IC): 9.55 mm Fixing hole diameter – millimeter (D1): 3.5 mm Cutting edge length – millimeter (L): 9.55 mm Insert thickness – millimeter (S): 3.97 mm Grade: M9325 Corner radius – millimeter (RE): 0.4 mm Insert size: 09 Insert Thickness: T3 Insert Type: T Chipbreaker manufacturer's designation (CBMD): P Insert shape code (SC): S – square ISO: SOMT09T304-P:M9325

PRAMET SOMT 09T304-P:M9325 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
