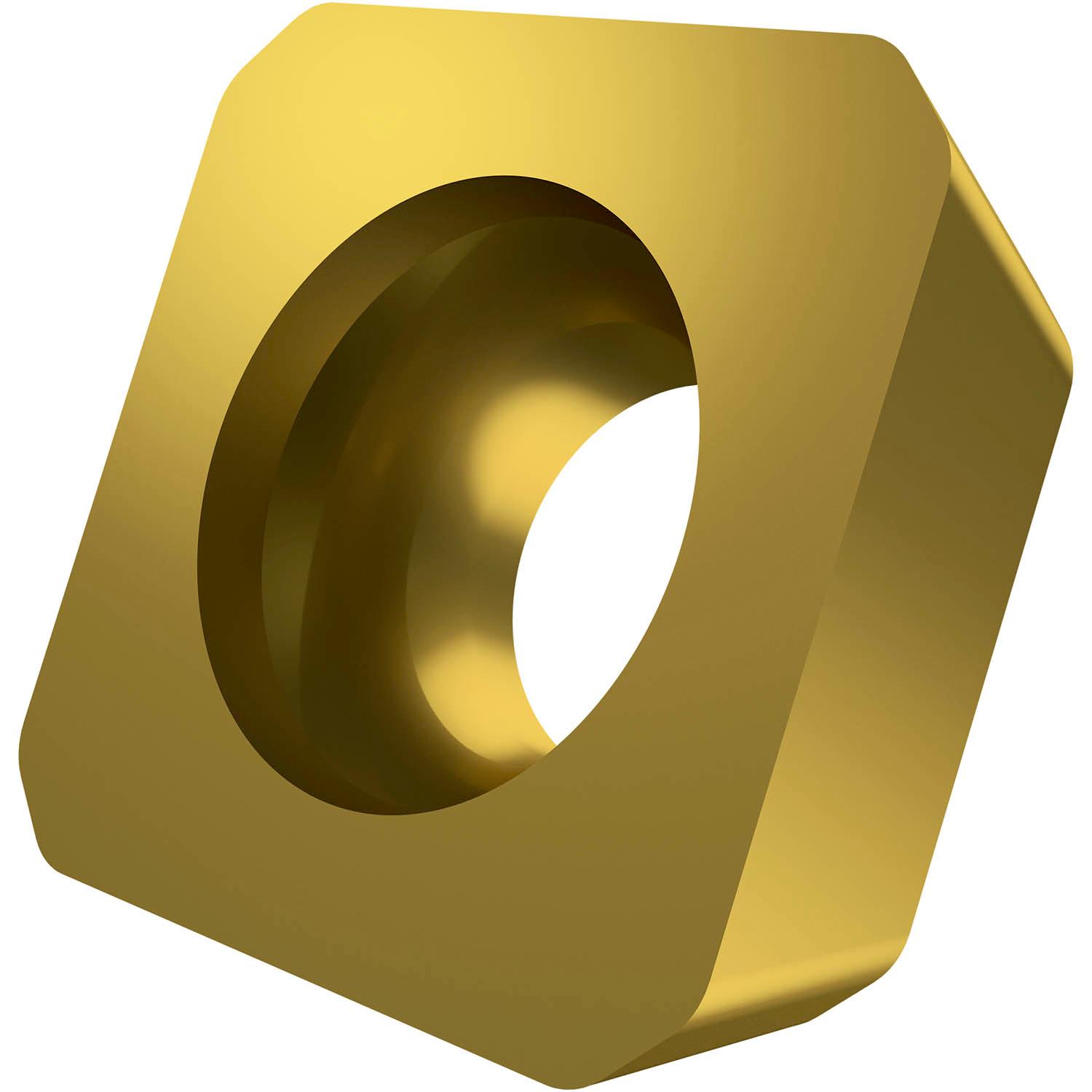

PRAMET SPEW 1204ADEN:M8330 Milling – other and drilling inserts clamped by screw

Product Code: SPEW 1204ADEN:M8330

$26.96$24.51 Ex. GST

Product Code: SPEW 1204ADEN:M8330 SKU SPEW 1204ADEN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SPEW 1204 with a plane rake surface, square for a maximum depth of cut of 12.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron with shoulder mills with extended flute J(T)-SSAP

Additional information

Weight 0.0262 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389465
Product number (SAP): 80030212
Ordering code ANSI: SPEW 1204ADEN:M8330
Gross weight – grams: 7.208
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.7 mm
m-dimension – millimeter (M): 1.92 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: P 11°
Insert size: 12
Insert Thickness: 04
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SPEW1204ADEN:M8330

Brand

PRAMET
