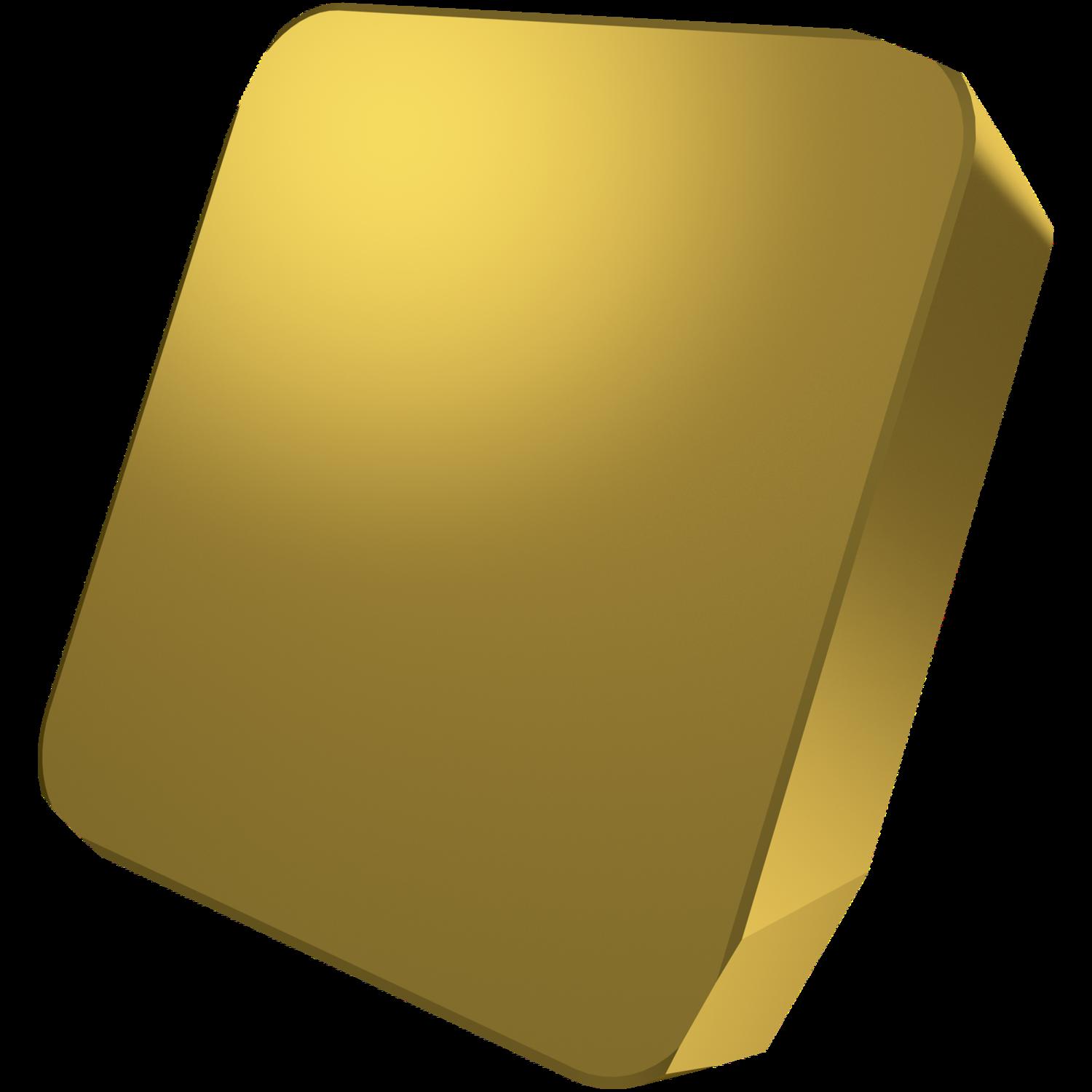

PRAMET SPKN 1203EDSR:M8330 Milling inserts clamped by wedge

Product Code: SPKN 1203EDSR:M8330

$21.19$19.26 Ex. GST

Product Code: SPKN 1203EDSR:M8330 SKU SPKN 1203EDSR:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SPKN 1203 with a plane rake surface, square for right hand cutting with a maximum depth of cut of 9.0mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0206 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389540
Product number (SAP): 80030220
Ordering code ANSI: SPKN 42EDSR:M8330
Gross weight – grams: 6.609
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 0.88 mm
Insert thickness – millimeter (S): 3.18 mm
Wiper edge length – millimeter (BS): 1.6 mm
Grade: M8330
Insert Clearance Code and Angle: P 11°
Insert size: 12
Insert Thickness: 03
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SPKN1203EDSR:M8330

Brand

PRAMET
