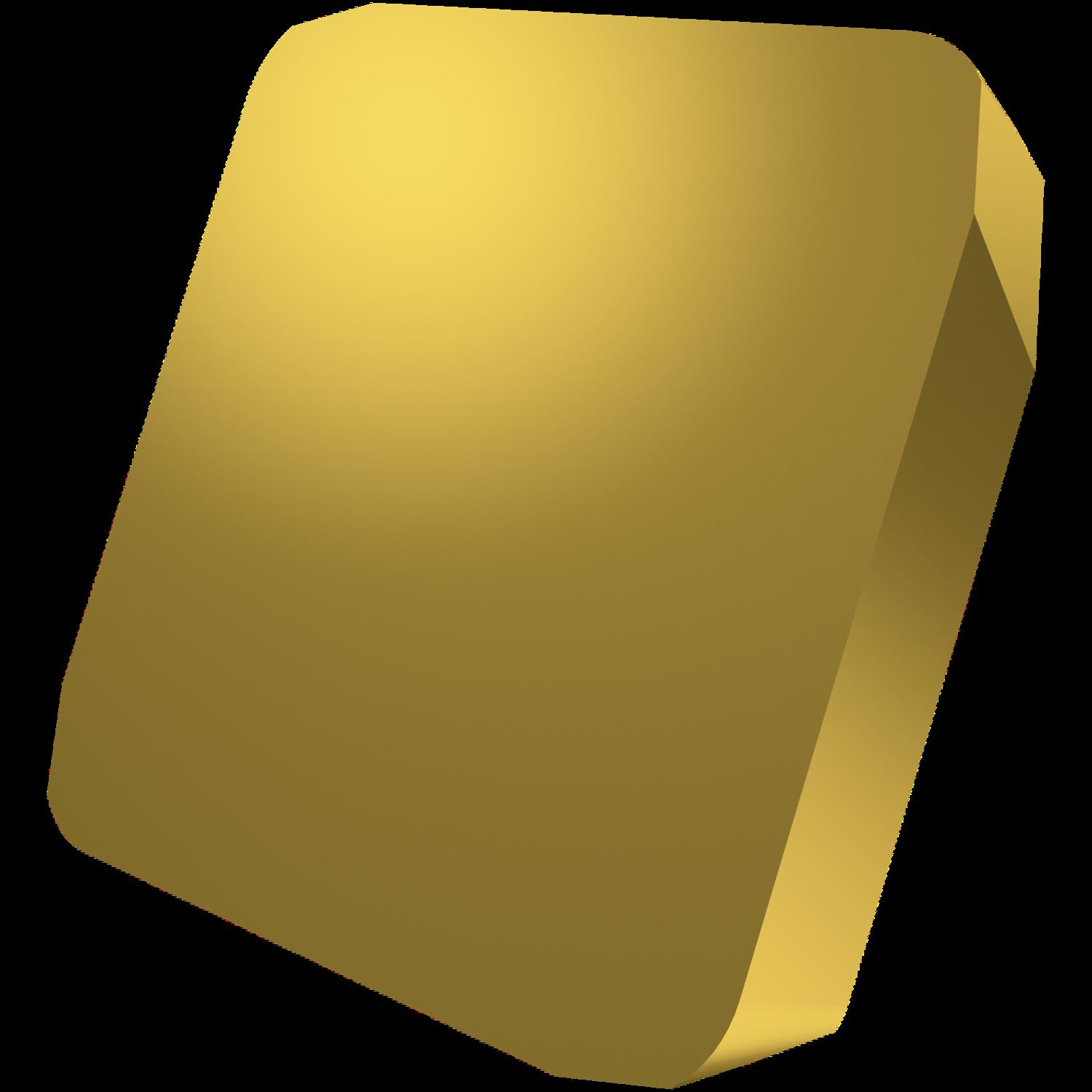

PRAMET SPKN 1504EDER:M8340 Milling inserts clamped by wedge

Product Code: SPKN 1504EDER:M8340

$32.75$29.77 Ex. GST

Product Code: SPKN 1504EDER:M8340 SKU SPKN 1504EDER:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SPKN 1504 with a plane rake surface, square for right hand cutting with a maximum depth of cut of 13.0mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel

Additional information

Weight 0.0318 kg
barcode
Additional Information

Description: Value
EAN number: 3603602995551
Product number (SAP): 80025106
Ordering code ANSI: SPKN 53EDER:M8340
Gross weight – grams: 23.284
Inscribed circle diameter – millimeter (IC): 15.875 mm
m-dimension – millimeter (M): 1.26 mm
Insert thickness – millimeter (S): 4.76 mm
Wiper edge length – millimeter (BS): 1.7 mm
Grade: M8340
Insert Clearance Code and Angle: P 11°
Insert size: 15
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SPKN1504EDER:M8340

Brand

PRAMET
