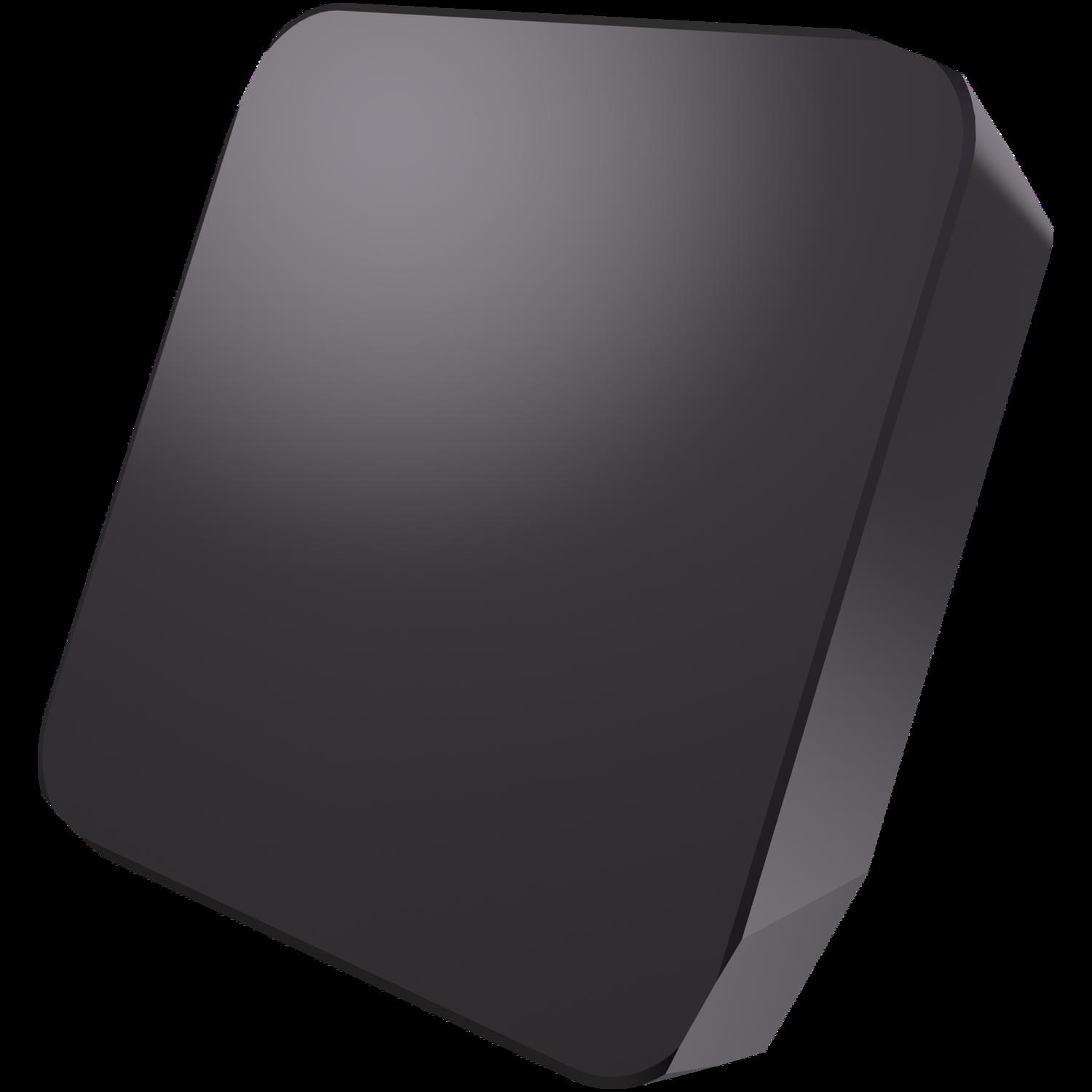

PRAMET SPKN 1504EDSR:8215 Milling inserts clamped by wedge

Description: Value
EAN number: 3603602887870
Product number (SAP): 80014629
Ordering code ANSI: SPKN 53EDSR:8215
Gross weight – grams: 15.616
Inscribed circle diameter – millimeter (IC): 15.875 mm
m-dimension – millimeter (M): 1.26 mm
Insert thickness – millimeter (S): 4.76 mm
Wiper edge length – millimeter (BS): 1.7 mm
Grade: 8215
Insert Clearance Code and Angle: P 11°
Insert size: 15
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SPKN1504EDSR:8215
