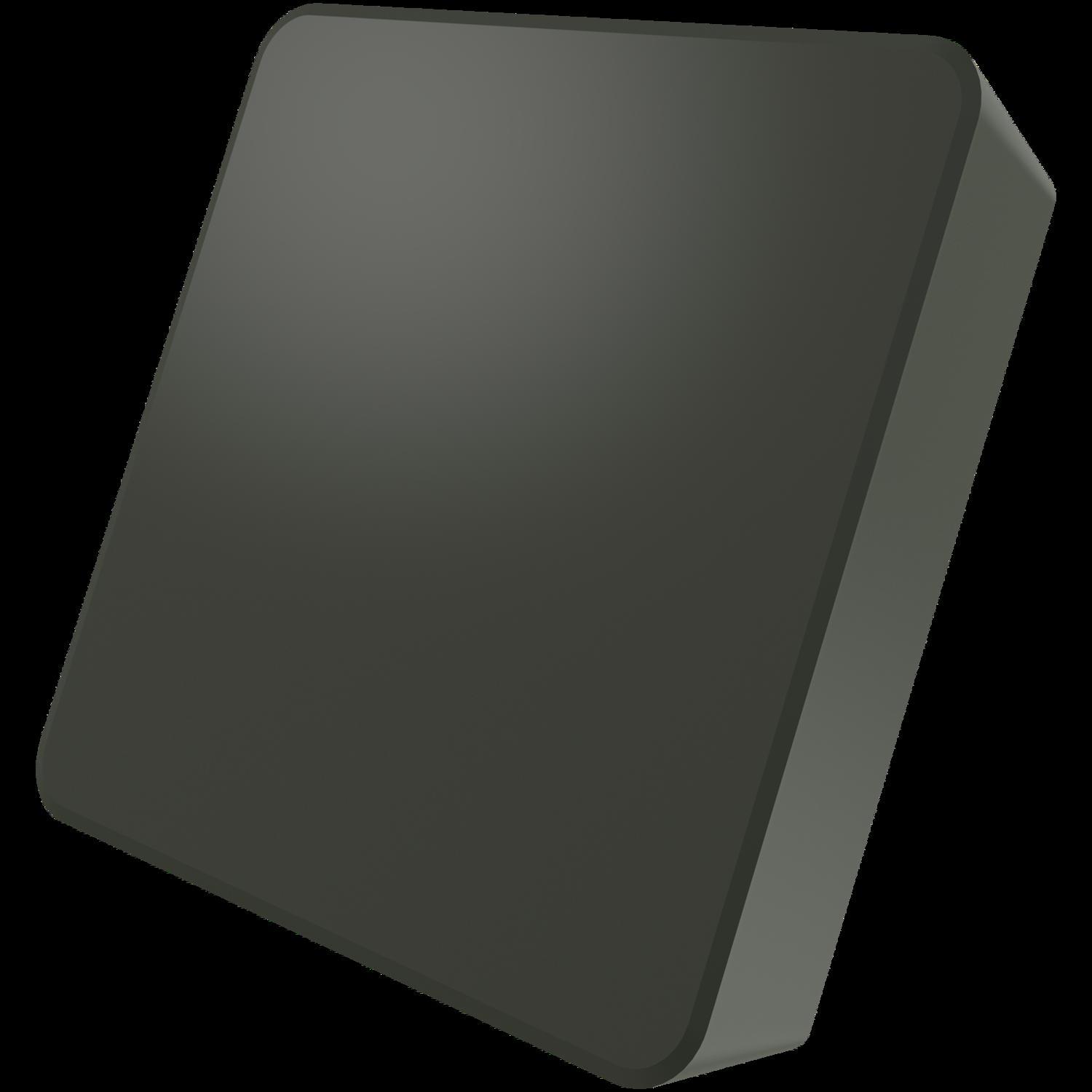

PRAMET SPUN 250620S:S26 Milling inserts clamped by wedge

Product Code: SPUN 250620S:S26

$62.32$56.65 Ex. GST

Product Code: SPUN 250620S:S26 SKU SPUN 250620S:S26 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SPUN 2506 with a plane rake surface, square for a maximum depth of cut of 18.0mm, with 2.0mm corner radius, an indexing accuracy according to ISO-tolerance class-U with rounded cutting edges and facet, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade range P15 -P30 for machining of steel

Additional information

Weight 0.0605 kg
barcode
Additional Information

Description: Value
EAN number: 3603602871602
Product number (SAP): 80002153
Ordering code ANSI: SPU 845S:S26
Gross weight – grams: 48.73
Inscribed circle diameter – millimeter (IC): 25.4 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: S26
Corner radius – millimeter (RE): 2 mm
Insert Clearance Code and Angle: P 11°
Insert size: 25
Insert Thickness: 06
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SPUN250620S:S26

Brand

PRAMET
