PRAMET SRDCL 2020 K 08-A Turning holders external

Description

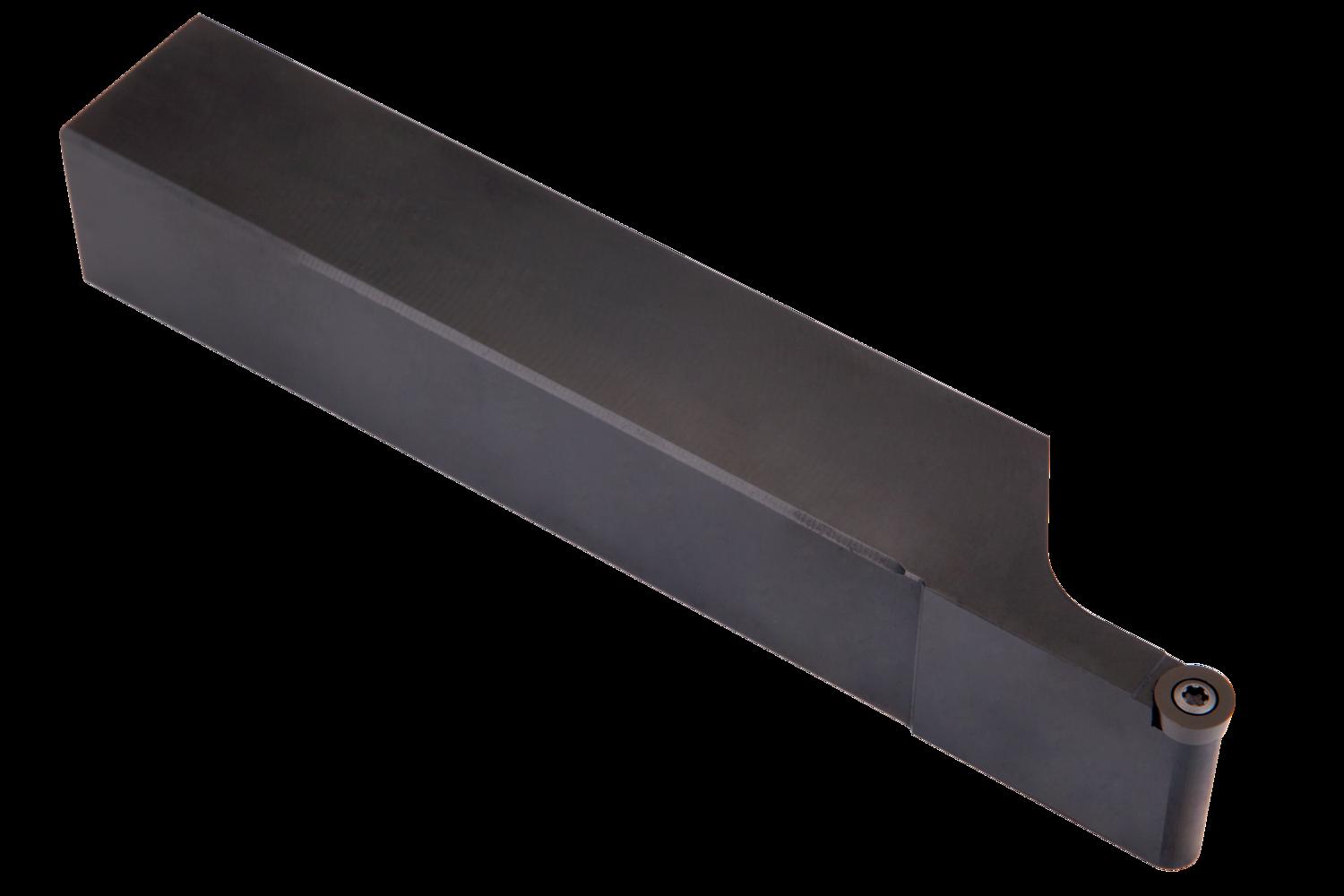

Screw clamp turning tool for holding a round positive insert with a diameter of 8mm, 3.18mm thick (ISO designation RC.. 0803MO ), left hand side and end cutting with straight shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight	0.176 kg
barcode
Additional Information	Description: Value EAN number: 3603602958327 Product number (SAP): 86002327 Ordering code ANSI: SRDCL 2020 K 08-A Gross weight – grams: 380.9 Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional height – millimeter (HF): 20 mm Functional width – millimeter (WF): 20.5 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 20 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 366 Insert size: 08 ISO: SRDCL2020K08-A
