PRAMET SRDCN 2020 K 10-M-A Turning holders external

Description

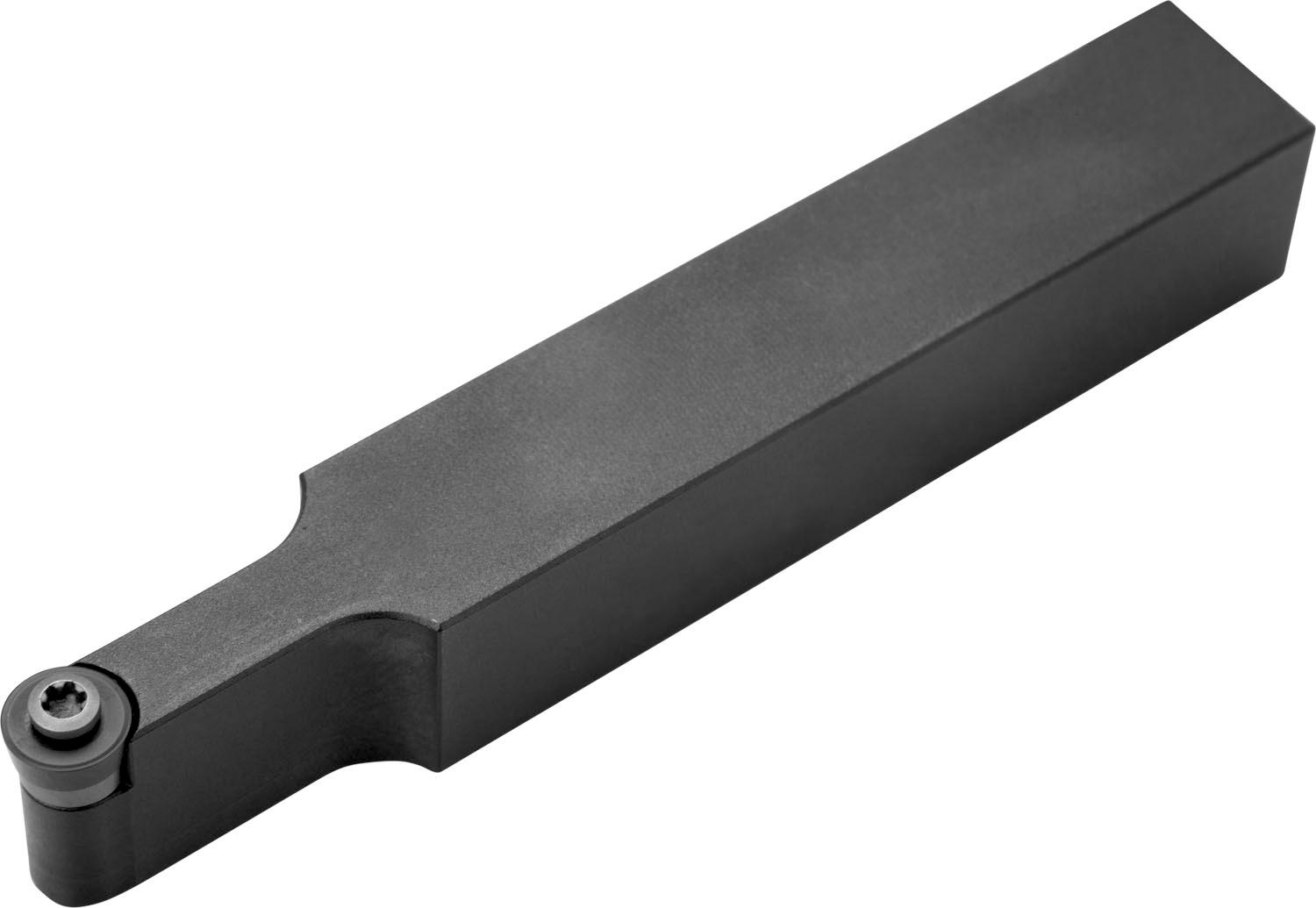

Screw clamp turning tool for holding a round positive insert with a diameter of 10mm, 3.97mm thick (ISO designation RC.. 10T3MO ), neutral hand side and end cutting with straight shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight	0.176 kg
barcode
Additional Information	Description: Value EAN number: 3603602919540 Product number (SAP): 84000792 Ordering code ANSI: SRDCN 2020 K 10-M-A Gross weight – grams: 376.5 Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional height – millimeter (HF): 20 mm Functional width – millimeter (WF): 15 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 25 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 367.2 Insert size: 10 ISO: SRDCN2020K10-M-A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
