PRAMET SRSCR 2020 K 10-M-A Turning holders external

Description

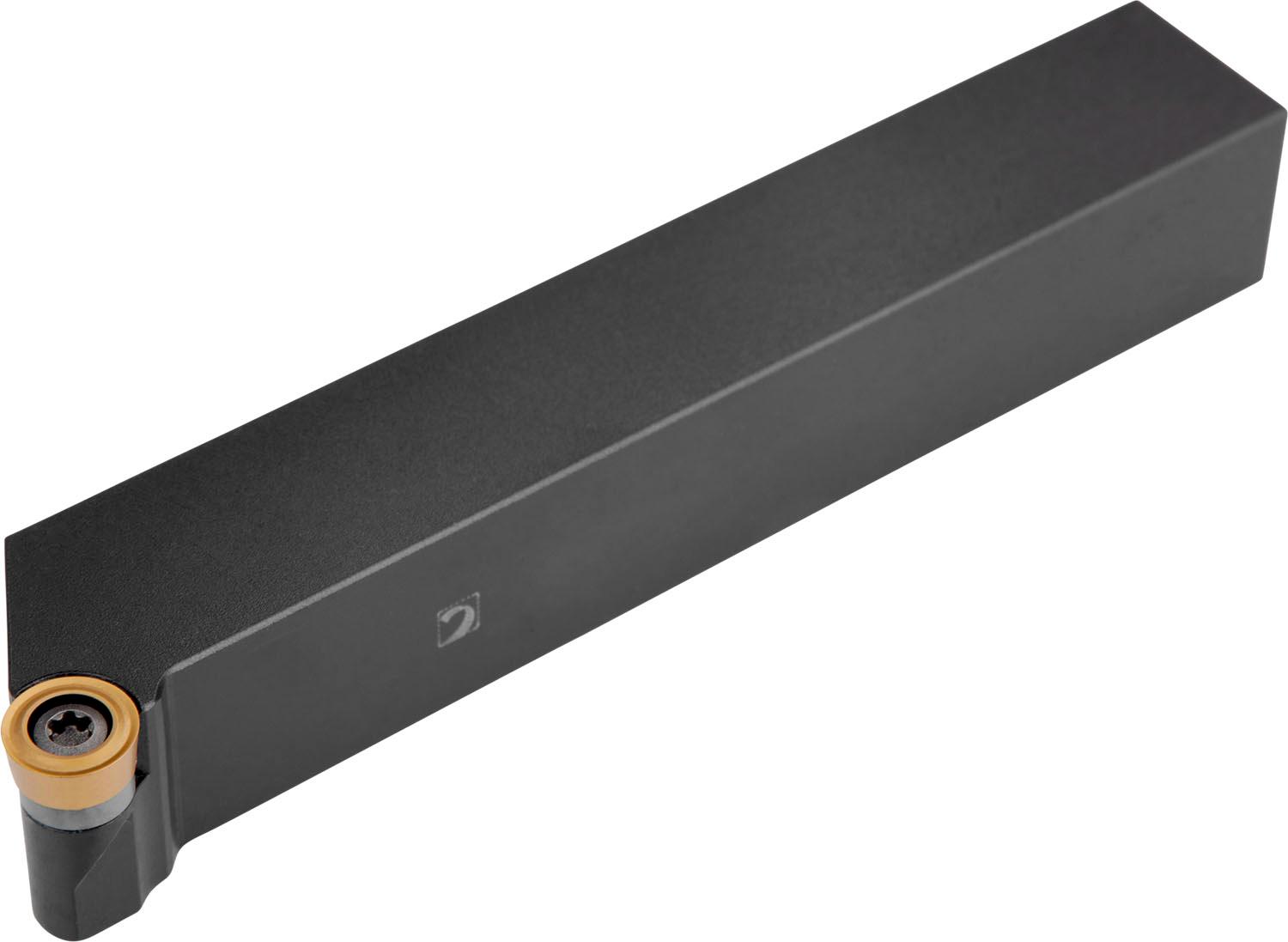

Screw clamp turning tool for holding a round positive insert with a diameter of 10mm, 3.97mm thick (ISO designation RC.. 10T3MO ), right hand side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight	0.176 kg
barcode
Additional Information	Description: Value EAN number: 3603602919601 Product number (SAP): 84000798 Ordering code ANSI: SRSCR 2020 K 10-M-A Gross weight – grams: 418.8 Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional height – millimeter (HF): 20 mm Functional width – millimeter (WF): 25 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 20 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 408.8 Insert size: 10 ISO: SRSCR2020K10-M-A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
