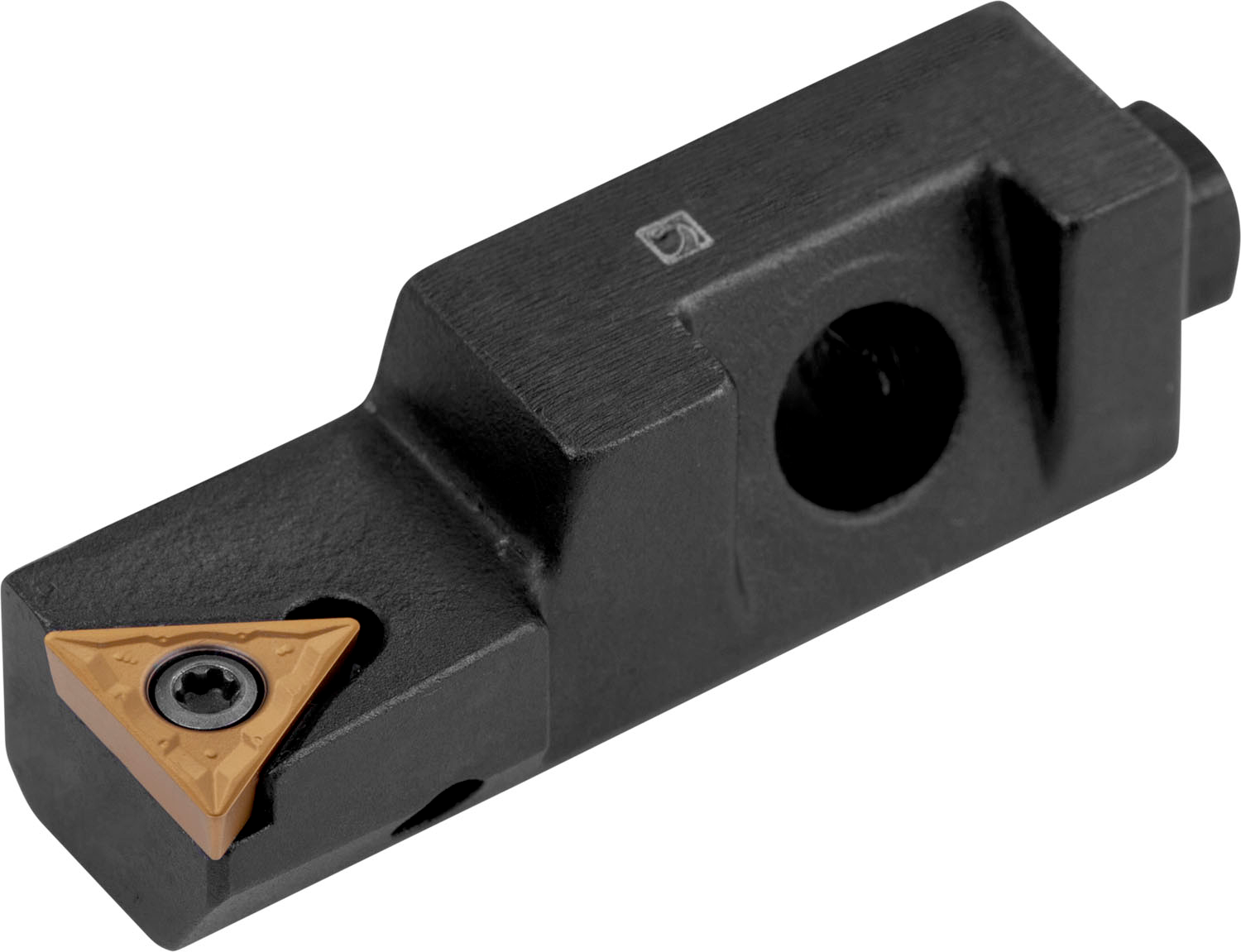

PRAMET STFCL 10 CA-11 Turning holders internal

Product Code: STFCL 10 CA-11

$182.41$165.83 Ex. GST

Product Code: STFCL 10 CA-11 SKU STFCL 10 CA-11 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

ISO Turning cartridge with screw clamp for holding a triangular positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation TC.. 1102.. ), in accordance with DIN 4985 left hand 90° end cutting with off-set shank for face turning without shoulder as well as taper boring and longitudinal boring without shoulder

Additional information

Weight 0.1771 kg
barcode
Additional Information

Description: Value
EAN number: 3603602927309
Product number (SAP): 84002239
Ordering code ANSI: STFCL 10 CA-11
Gross weight – grams: 90
Insert size: 11
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional height – millimeter (HF): 10 mm
Functional length – millimeter (LF): 50 mm
Functional width – millimeter (WF): 14 mm
Shank height – millimeter (H): 15 mm
Shank width – millimeter (B): 11 mm
ISO: STFCL10CA-11

Brand

PRAMET
