PRAMET STJCR 2525 M 16-M-A Turning holders external

Description

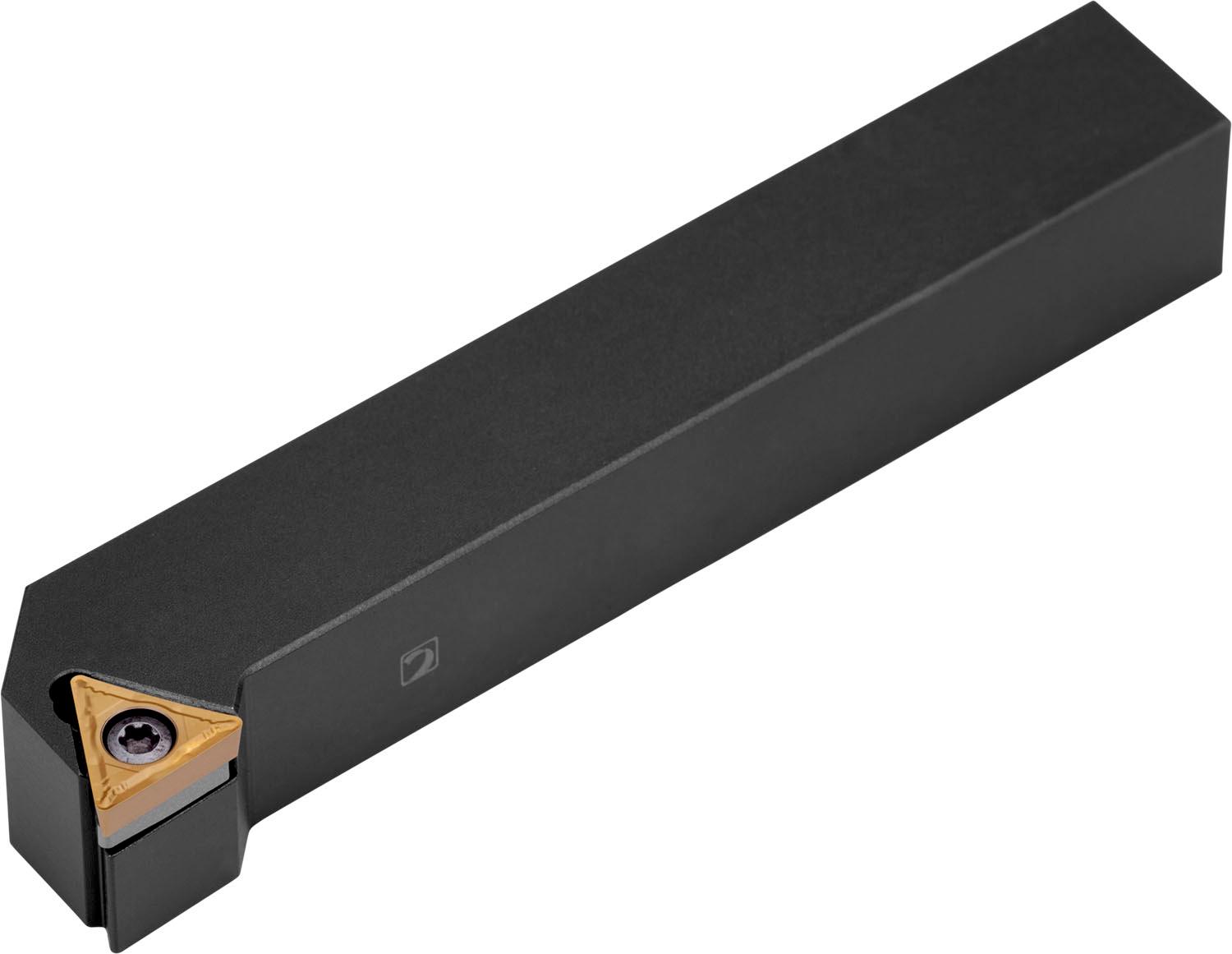

Screw clamp turning tool for holding a triangular positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation TC.. 16T3.. ), right hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning and longitudinal turning with and without shoulder

Additional information

Weight	0.1859 kg
barcode
Additional Information	Description: Value EAN number: 3603602919809 Product number (SAP): 84000820 Ordering code ANSI: STJCR 2525 M 16-M-A Gross weight – grams: 760.8 Shank height – millimeter (H): 25 mm Shank width – millimeter (B): 25 mm Functional height – millimeter (HF): 25 mm Functional width – millimeter (WF): 32 mm Functional length – millimeter (LF): 150 mm Head length – millimeter (LH): 25 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 752 Insert size: 16 ISO: STJCR2525M16-M-A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
