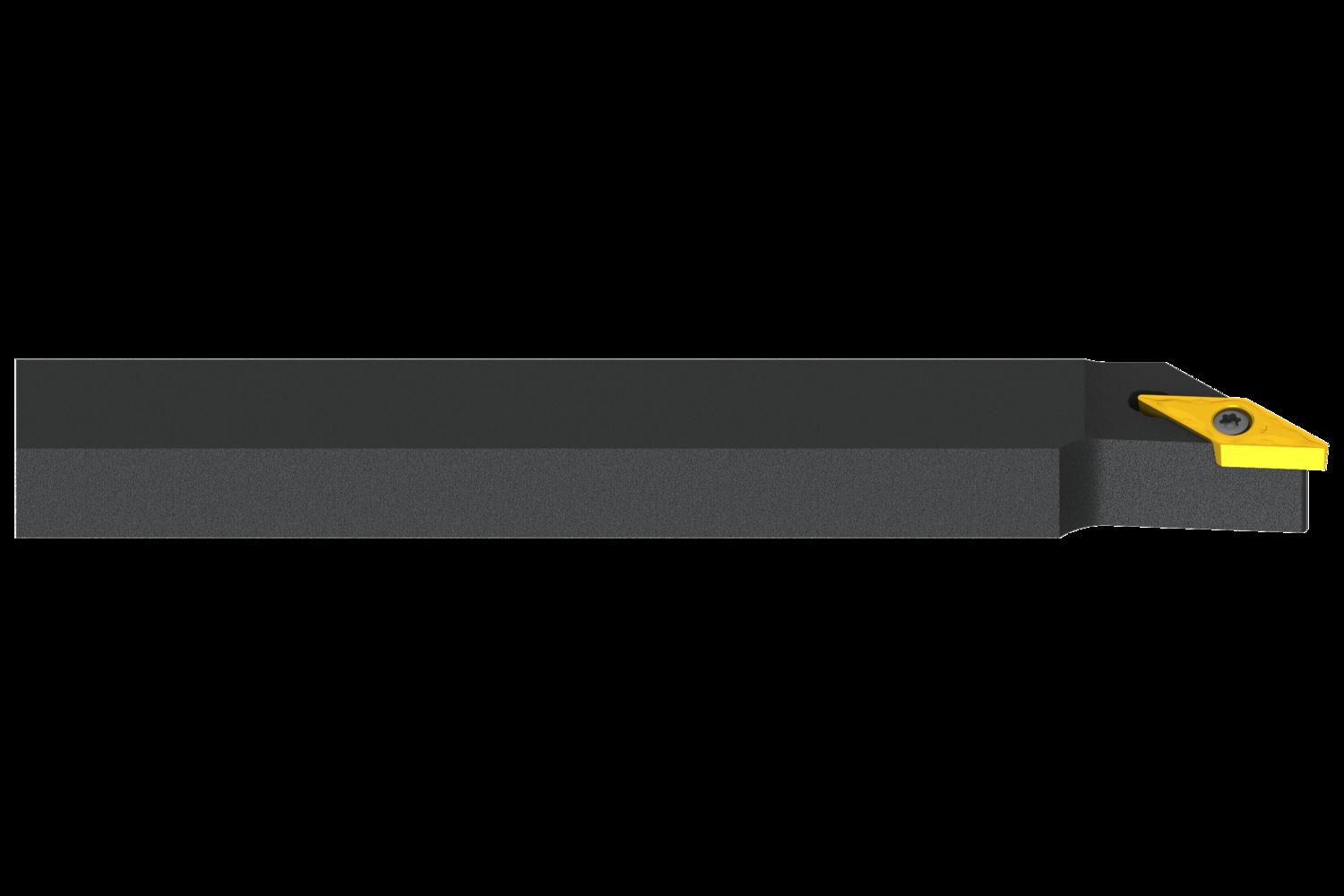

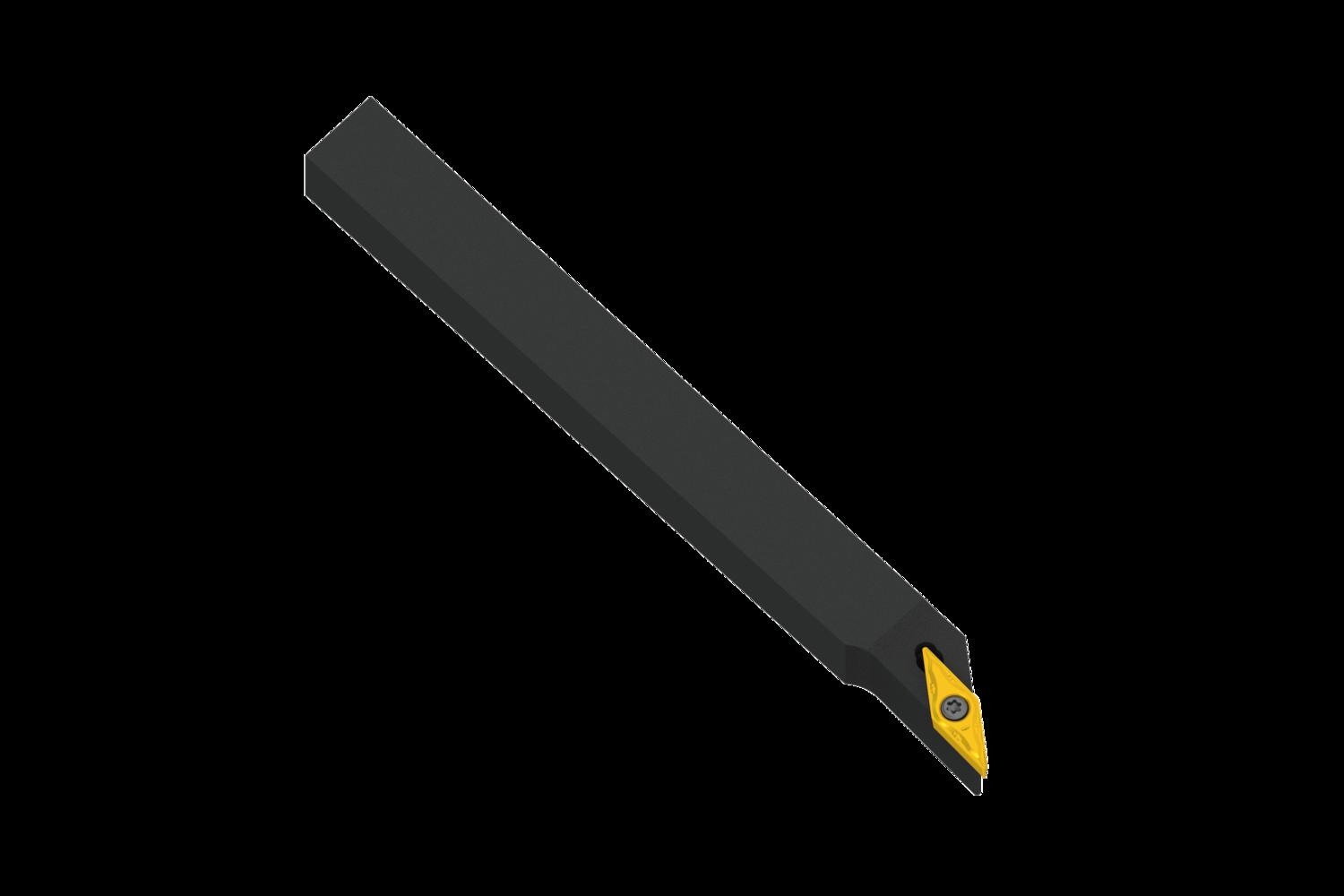

PRAMET SVJBL 1212 K 11-S Turning holders external

Description

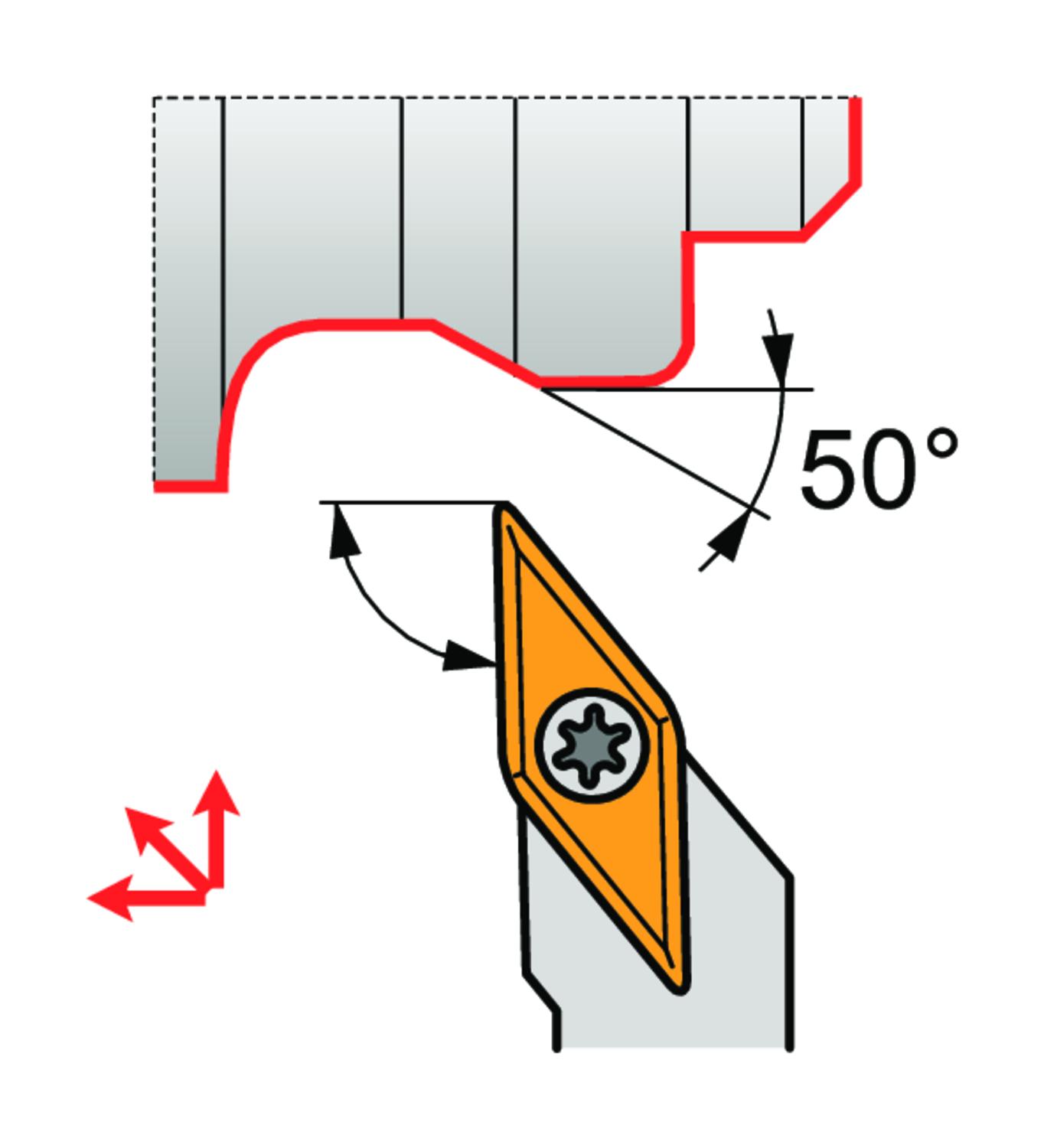

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), left hand 93° side cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	0.1280 kg
barcode	3603603946903
Additional Information	Description: Value EAN number: 3603603946903 Product number (SAP): 86039464 Ordering code ANSI: SVJBL 1212 K 11-S Gross weight – grams: 160.6 Shank height – millimeter (H): 12 mm Shank width – millimeter (B): 12 mm Functional height – millimeter (HF): 12 mm Functional width – millimeter (WF): 12 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 25.6 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 128 Insert size: 11 Sliding Head Turning Tool: YES ISO: SVJBL1212K11-S
