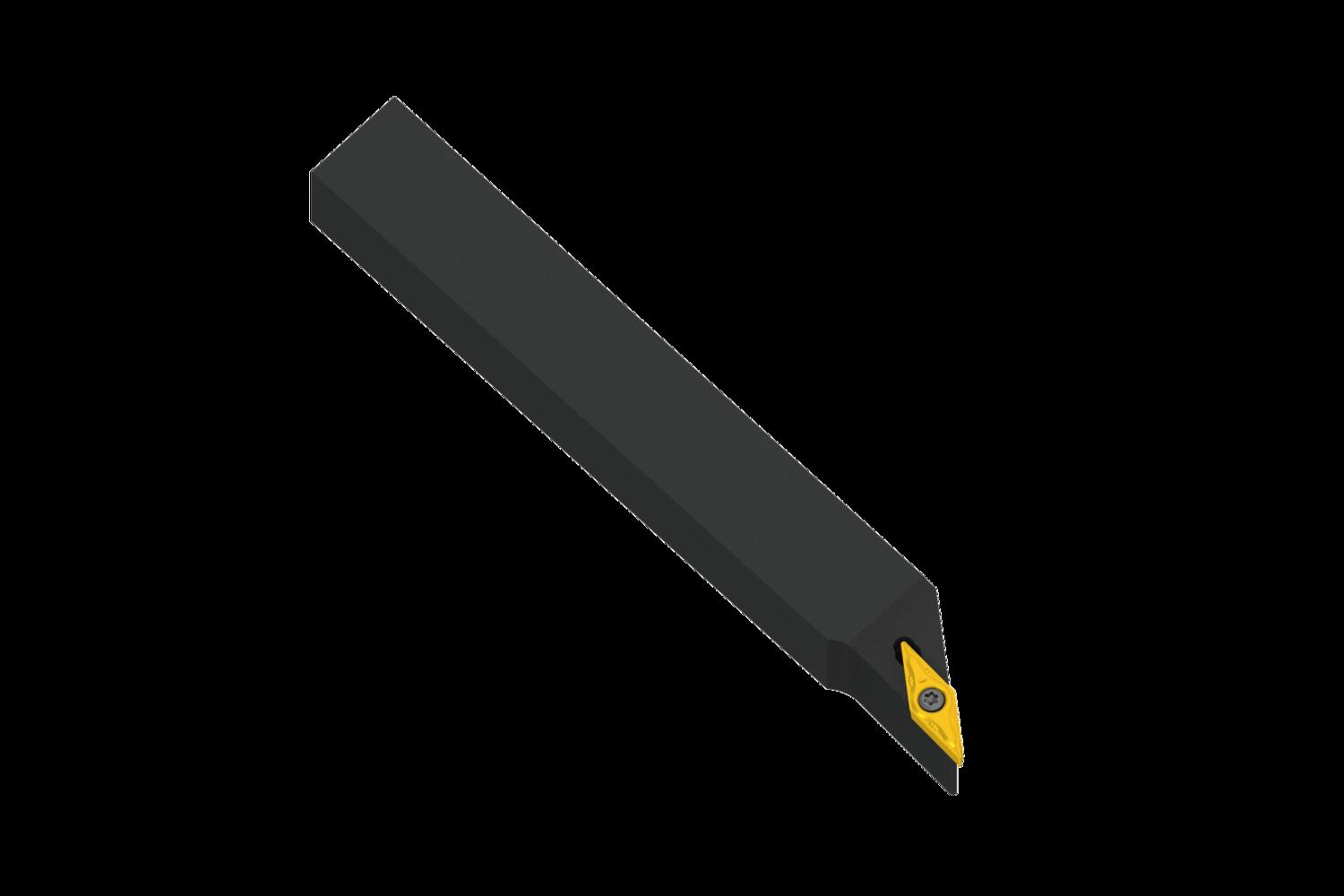

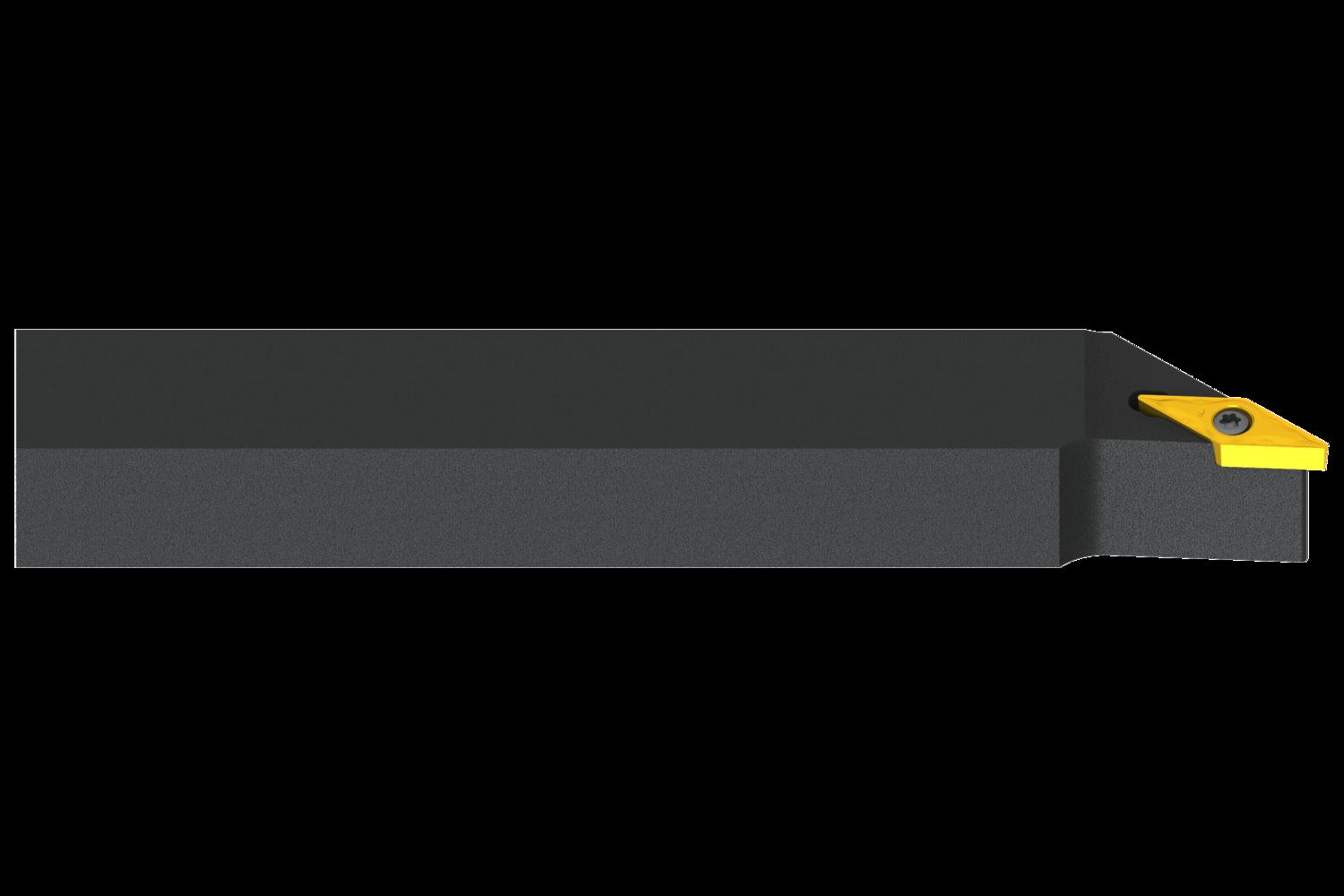

PRAMET SVJBL 1616 K 11-S Turning holders external

Description

Screw clamp turning tool also compatible with sliding head machines for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.., VC.. 1103.. ), left hand 93° side cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	0.2240 kg
barcode	3603603946910

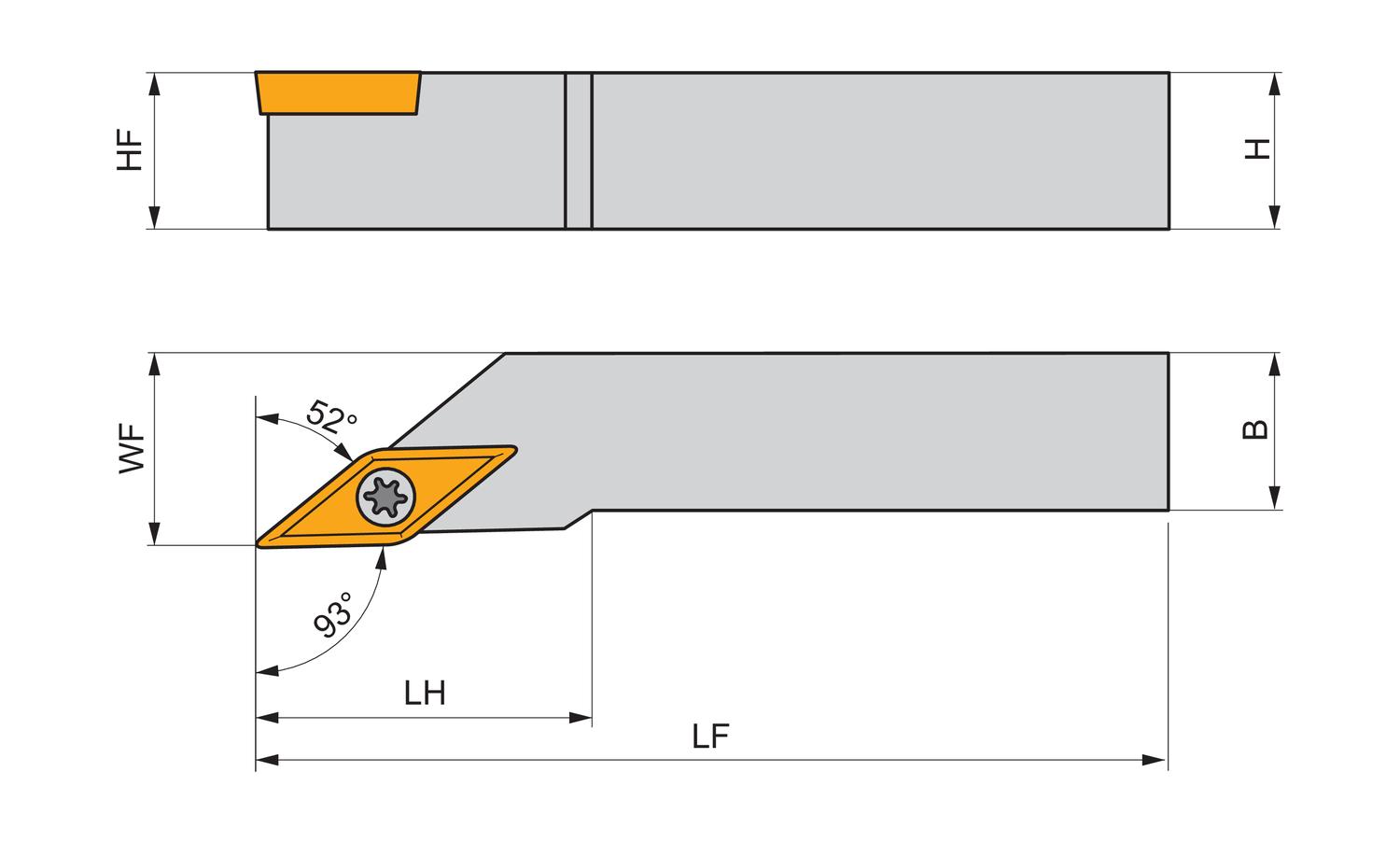

Additional Information	Description: Value EAN number: 3603603946910 Product number (SAP): 86039465 Ordering code ANSI: SVJBL 1616 K 11-S Gross weight – grams: 257.5 Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional height – millimeter (HF): 16 mm Functional width – millimeter (WF): 16 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 25.6 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 224 Insert size: 11 Sliding Head Turning Tool: YES ISO: SVJBL1616K11-S
