PRAMET SVJBR 1616 K 11-S Turning holders external

Product Code: SVJBR 1616 K 11-S

$203.94$185.40 Ex. GST

Product Code: SVJBR 1616 K 11-S SKU SVJBR 1616 K 11-S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

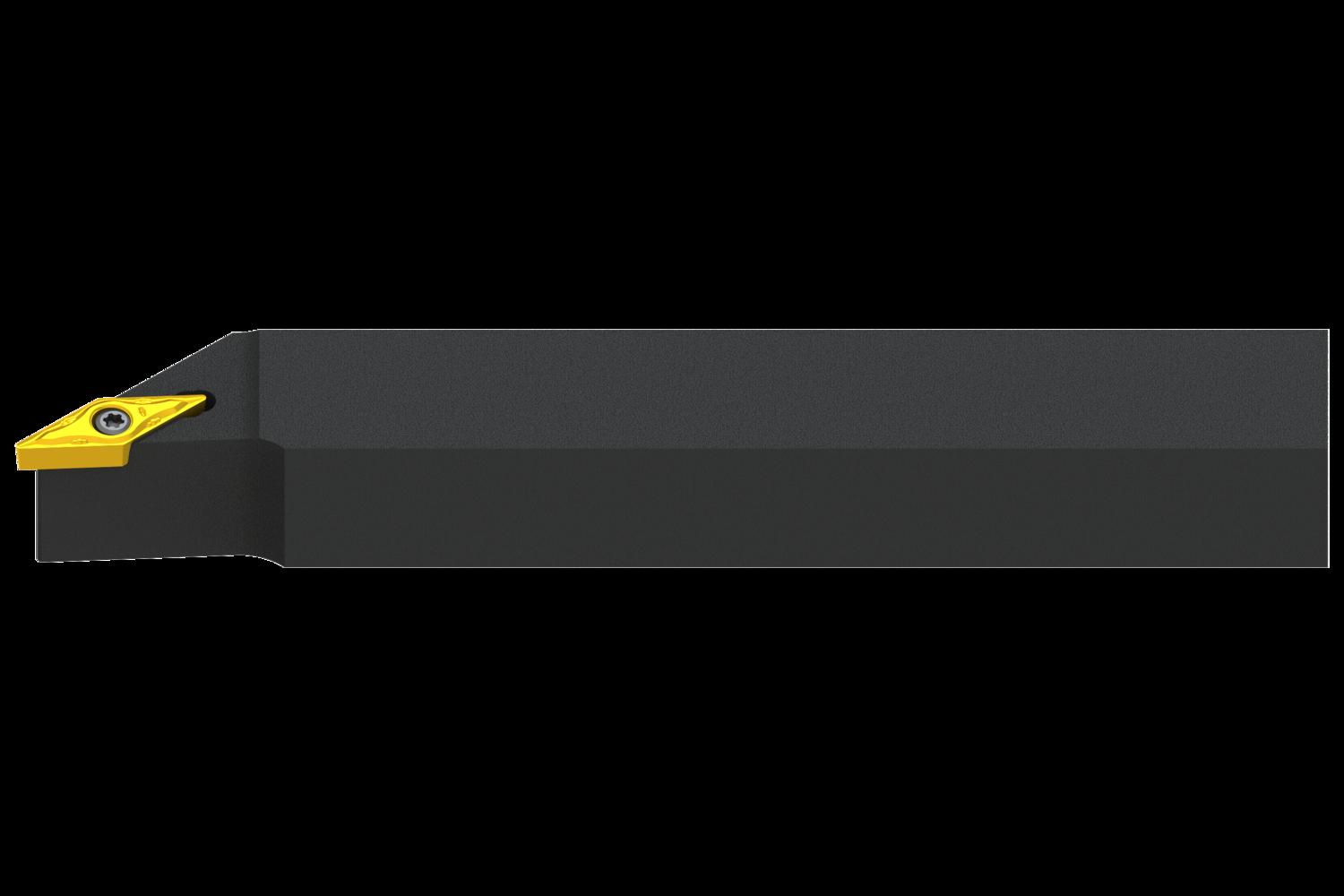

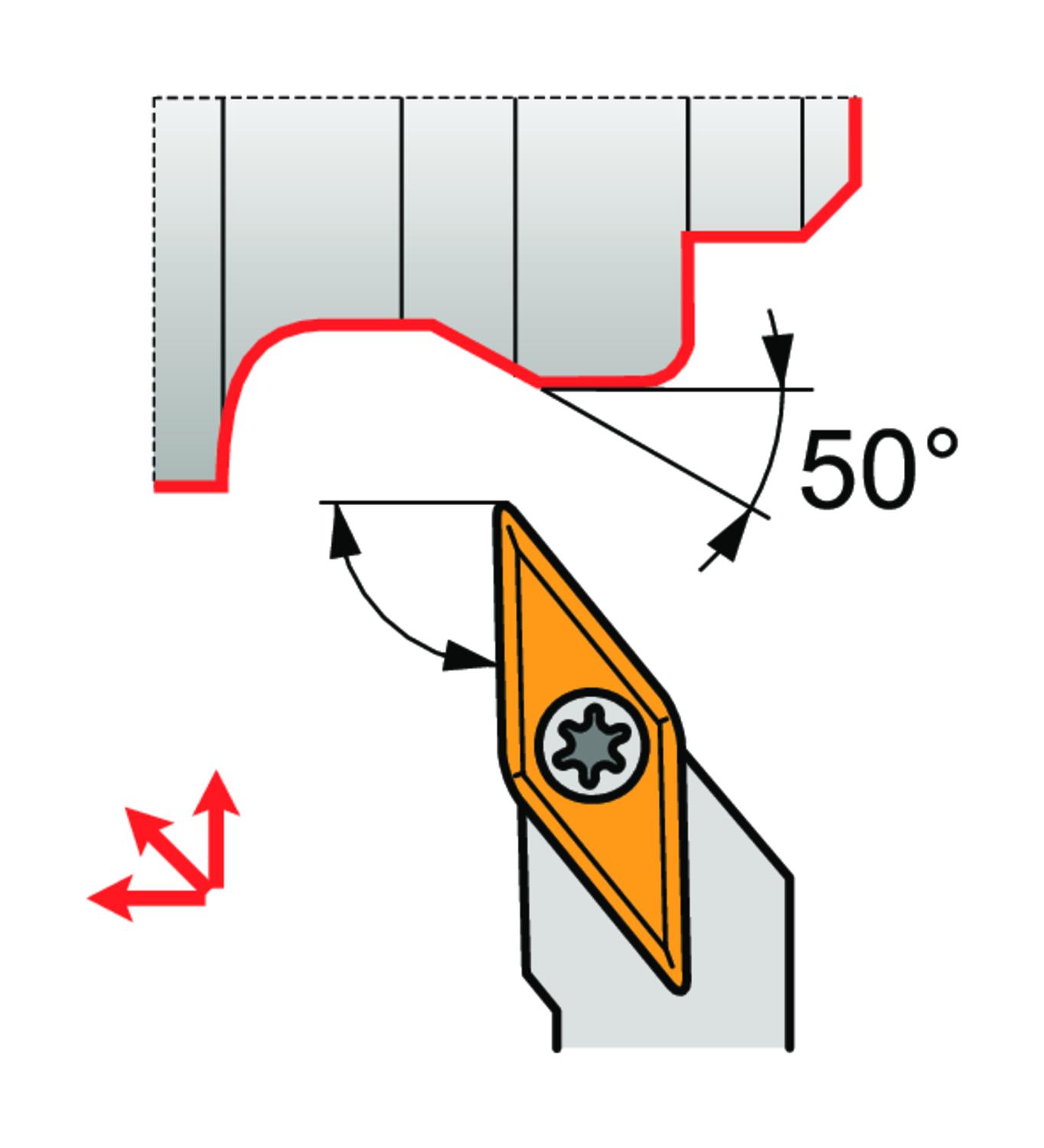

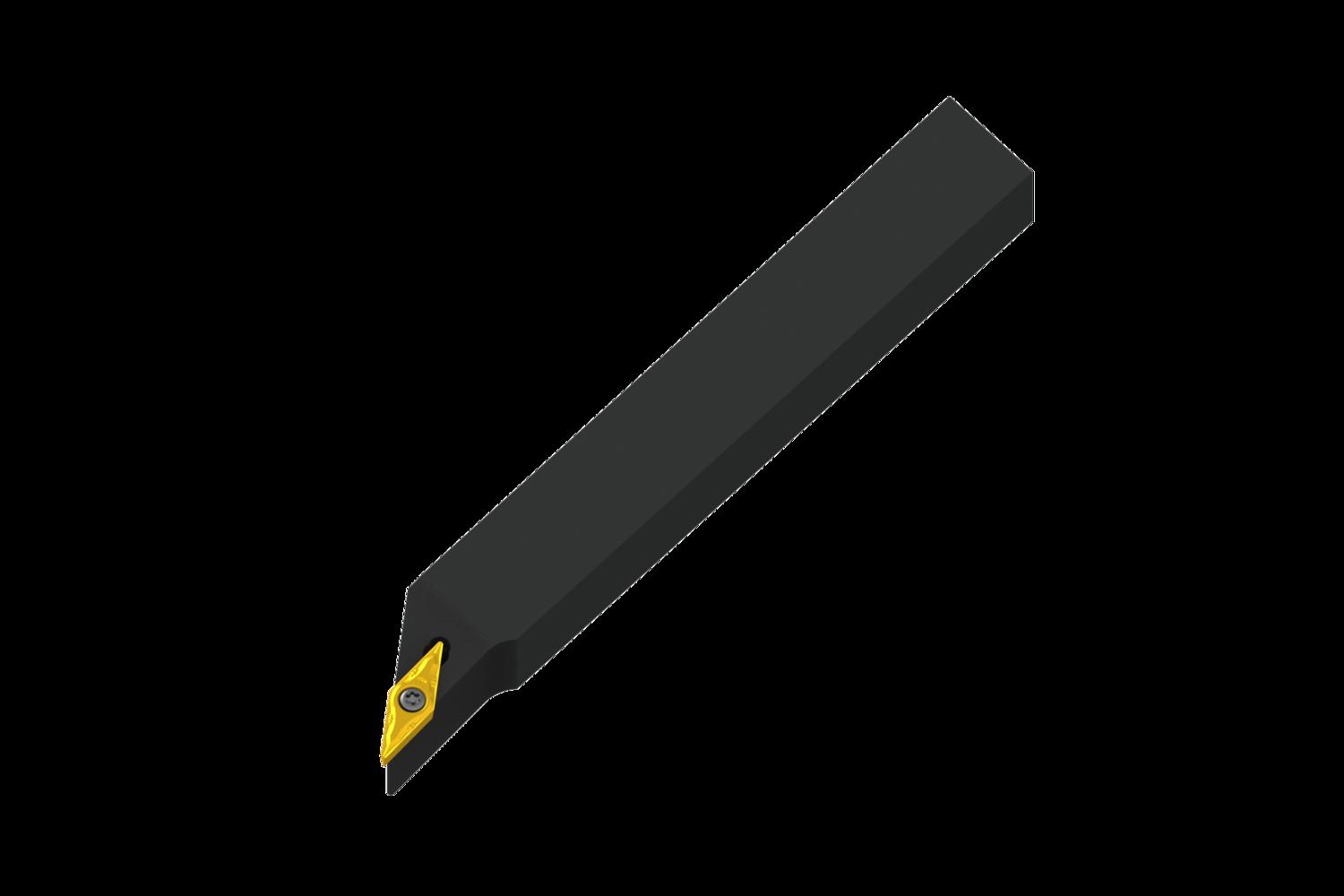

Screw clamp turning tool also compatible with sliding head machines for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.., VC.. 1103.. ), right hand 93° side cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2240 kg
barcode

3603603946934

Additional Information

Description: Value
EAN number: 3603603946934
Product number (SAP): 86039467
Ordering code ANSI: SVJBR 1616 K 11-S
Gross weight – grams: 257.1

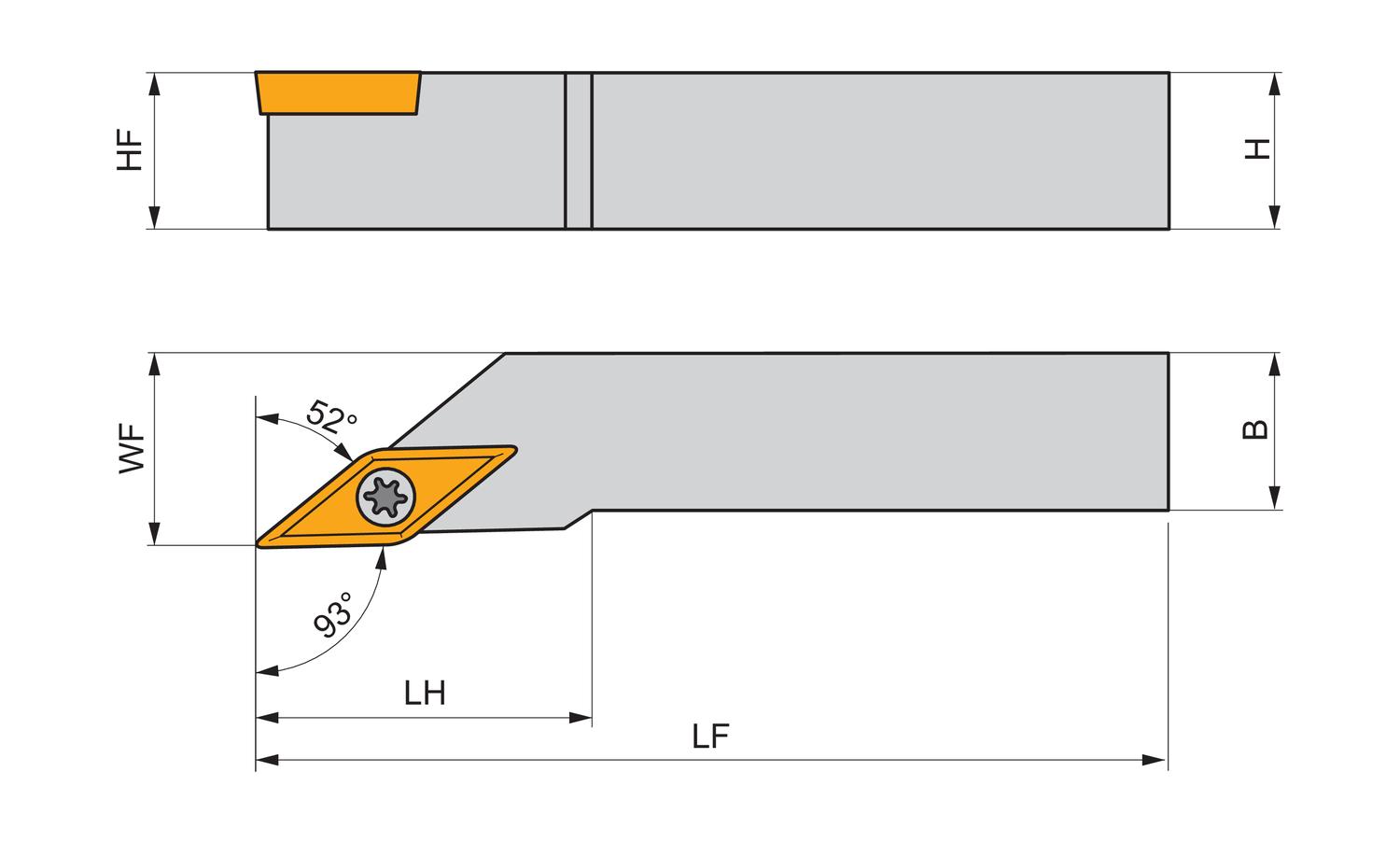

Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 16 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 25.6 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 224
Insert size: 11
Sliding Head Turning Tool: YES
ISO: SVJBR1616K11-S
