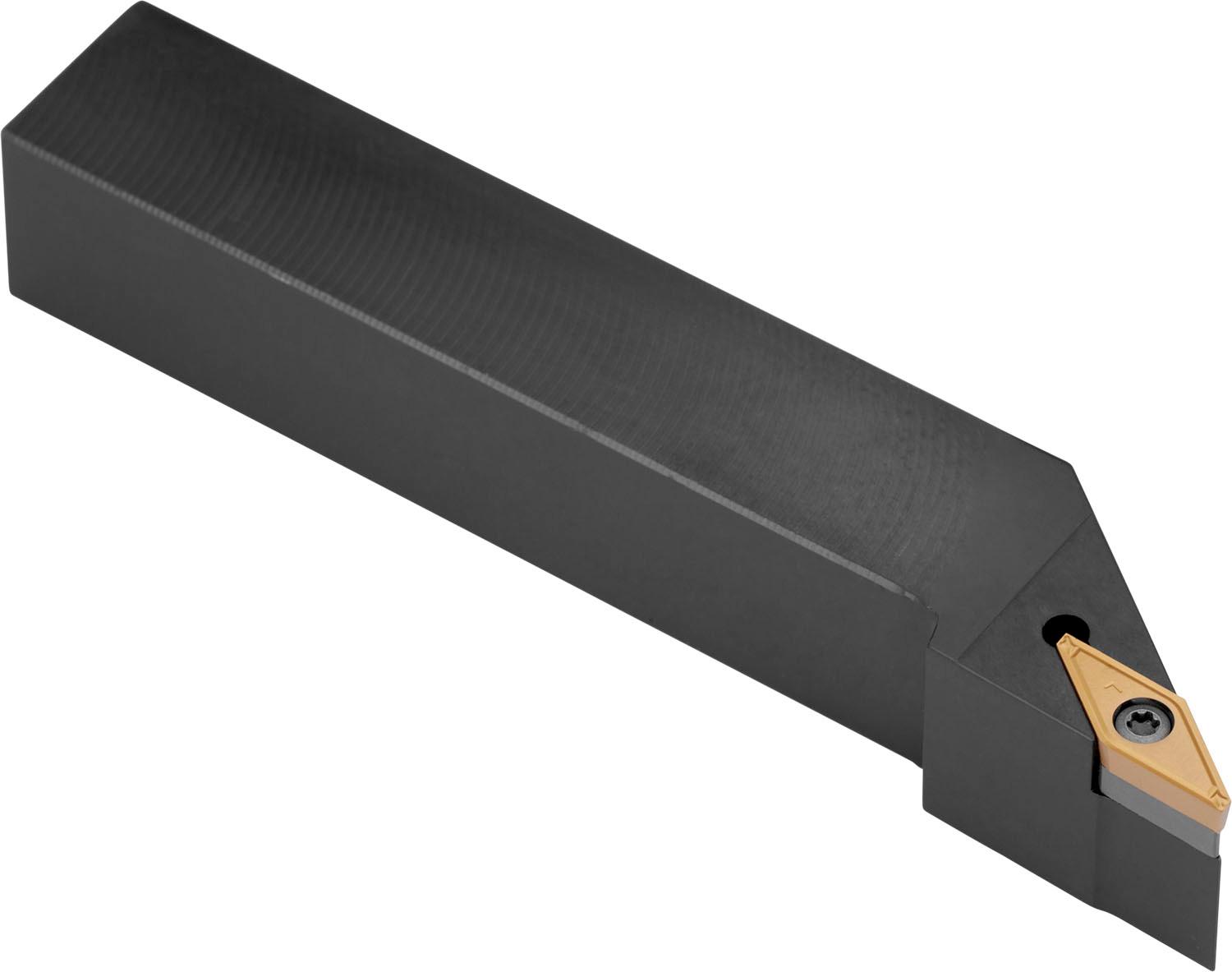

PRAMET SVJCL 2020 K 13 Turning holders external

Product Code: SVJCL 2020 K 13

$213.00$193.64 Ex. GST

Product Code: SVJCL 2020 K 13 SKU SVJCL 2020 K 13 Categories , ,
PRAMET SVJCL 2020 K 13 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2068 kg
barcode
Additional Information

Description: Value
EAN number: 3603602957849
Product number (SAP): 86002042
Ordering code ANSI: SVJCL 2020 K 13
Gross weight – grams: 393.9
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 30 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 372
Insert size: 13
ISO: SVJCL2020K13

Brand

PRAMET
