PRAMET SVJCL 2525 M 13 Turning holders external

Product Code: SVJCL 2525 M 13

$224.33$203.94 Ex. GST

Product Code: SVJCL 2525 M 13 SKU SVJCL 2525 M 13 Categories , ,
PRAMET SVJCL 2525 M 13 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

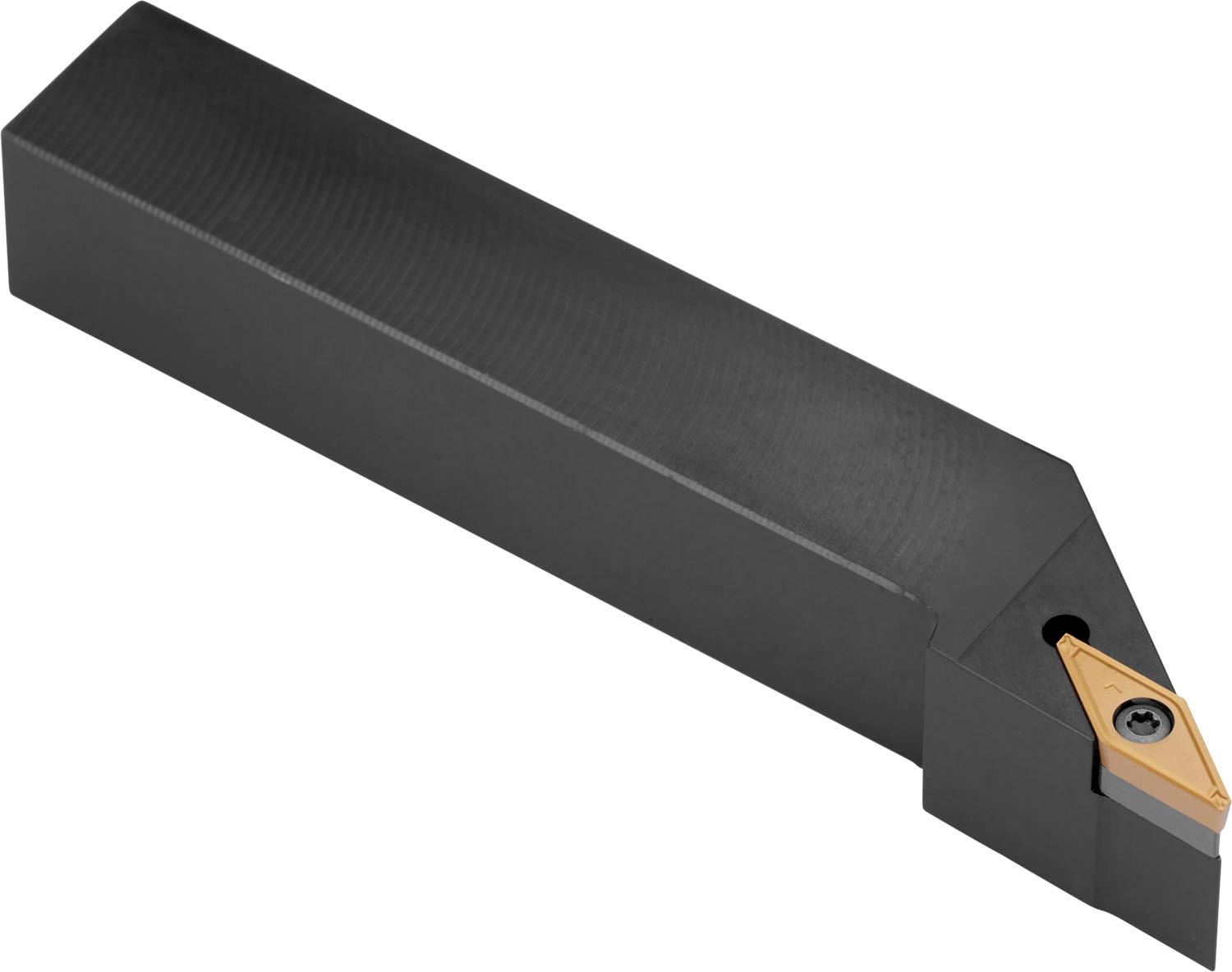

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2178 kg
barcode
Additional Information

Description: Value
EAN number: 3603602957856
Product number (SAP): 86002043
Ordering code ANSI: SVJCL 2525 M 13
Gross weight – grams: 698.8
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 30 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 668
Insert size: 13
ISO: SVJCL2525M13

Brand

PRAMET
