PRAMET SVJCR 1616 M 13-DC Turning holders external

Product Code: SVJCR 1616 M 13-DC

$190.34$173.04 Ex. GST

Product Code: SVJCR 1616 M 13-DC SKU SVJCR 1616 M 13-DC Categories , ,
PRAMET SVJCR 1616 M 13-DC Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

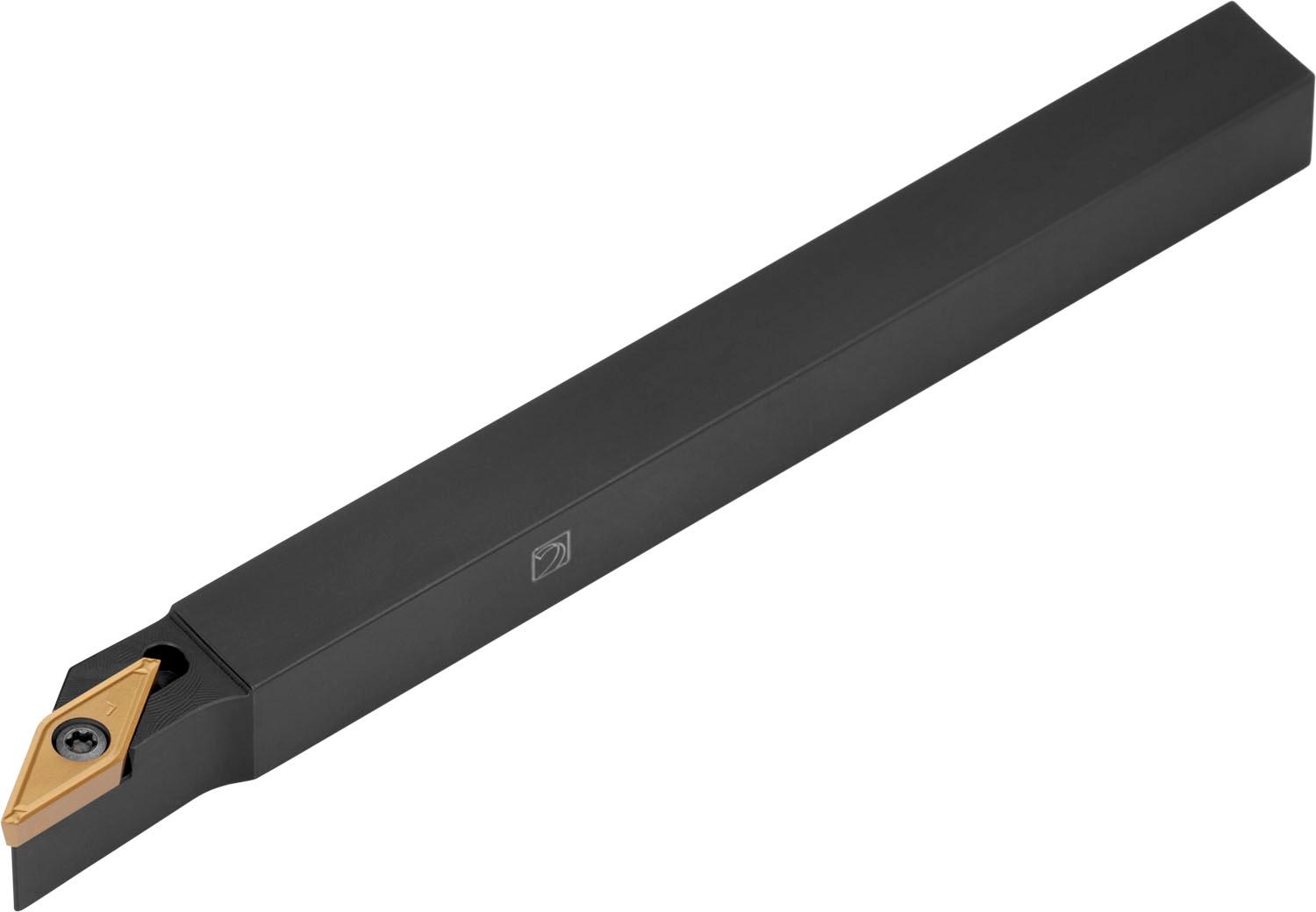

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VCGX 1303.. ), right hand 93° side cutting with off-set shank, 16mm tool height x 16mm width x 150mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1848 kg
barcode
Additional Information

Description: Value
EAN number: 3603602959478
Product number (SAP): 86003485
Ordering code ANSI: SVJCR 1616 M 13-DC
Gross weight – grams: 329.3
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 25 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 294
Insert size: 13
ISO: SVJCR1616M13-DC
Functional width – millimeter (WF): 0 mm

Brand

PRAMET
