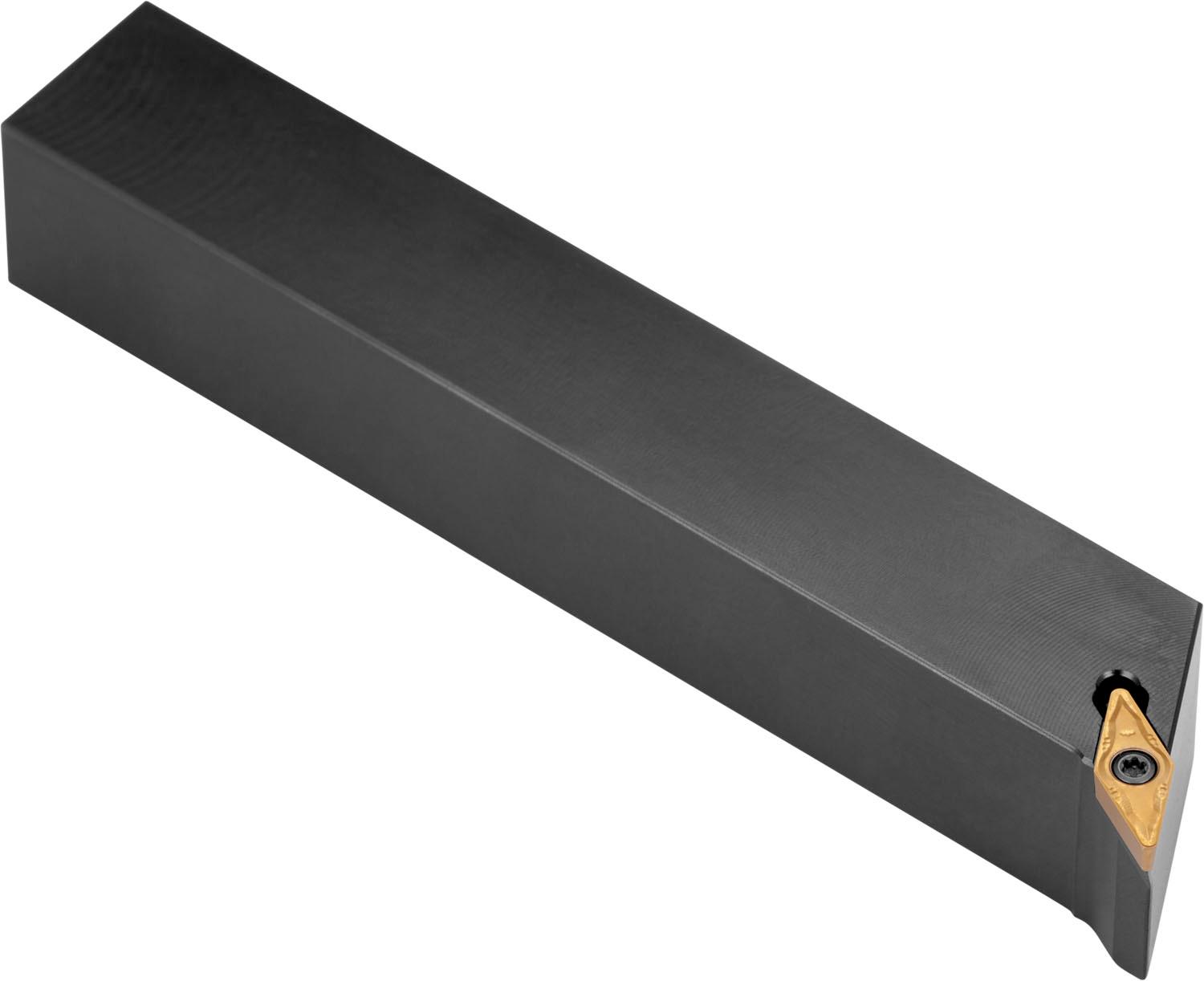

PRAMET SVPBL 2020 K 11 Turning holders external

Product Code: SVPBL 2020 K 11

$213.00$193.64 Ex. GST

Product Code: SVPBL 2020 K 11 SKU SVPBL 2020 K 11 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), left hand 62.5°, left and right side cutting, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2068 kg
barcode
Additional Information

Description: Value
EAN number: 3603602956804
Product number (SAP): 86001266
Ordering code ANSI: SVPBL 2020 K 11
Gross weight – grams: 386.1
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 12 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 386.1
Insert size: 11
ISO: SVPBL2020K11

Brand

PRAMET
