PRAMET SVVBN 2020 K 11 Turning holders external

Product Code: SVVBN 2020 K 11

$213.00$193.64 Ex. GST

Product Code: SVVBN 2020 K 11 SKU SVVBN 2020 K 11 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

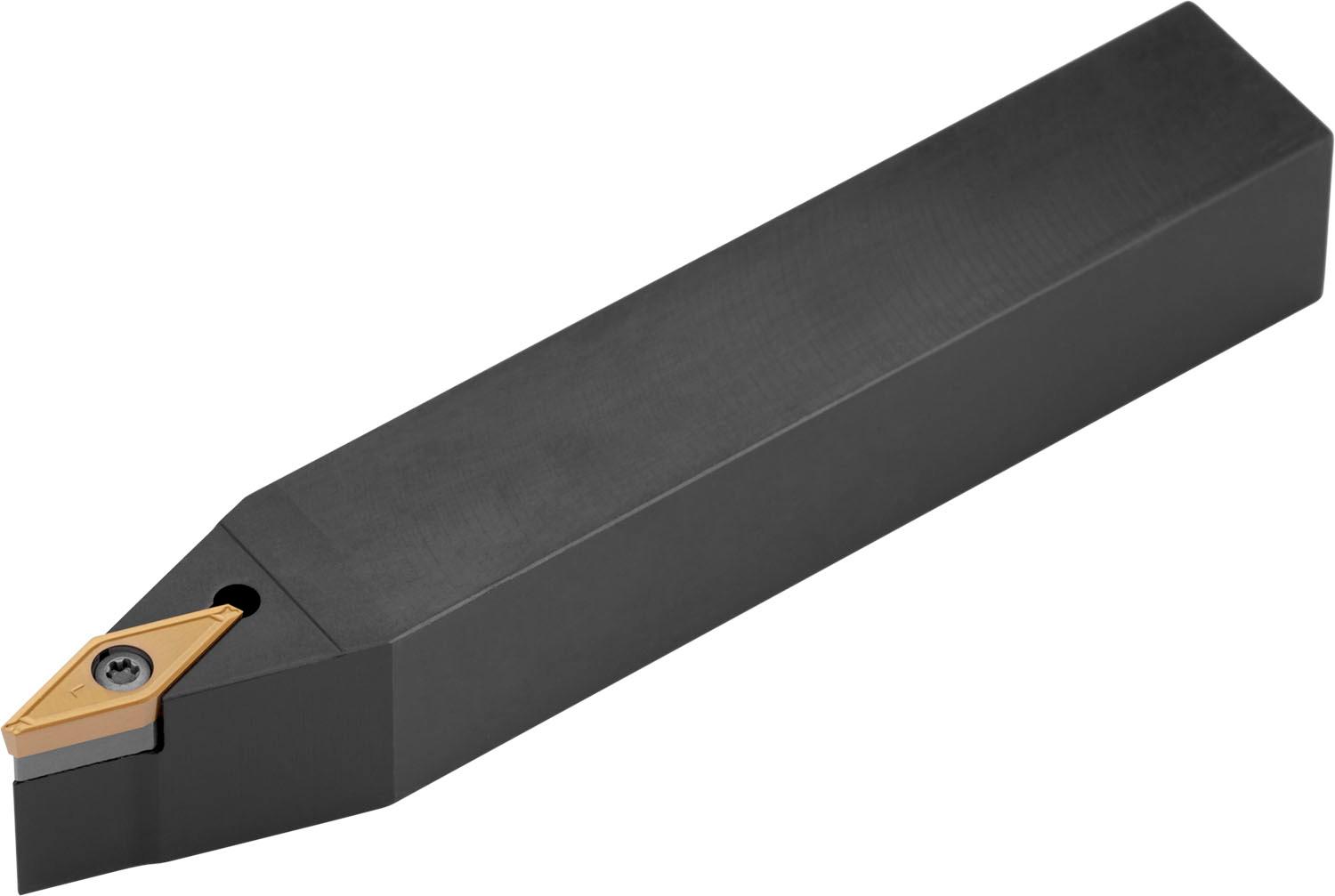

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), neutral hand 72°30′ side cutting with straight shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight 0.2068 kg
barcode
Additional Information

Description: Value
EAN number: 3603602956859 Product number (SAP): 86001271 Ordering code ANSI: SVVBN 2020 K 11 Gross weight: 371.4 grams Shank height (H): 20 mm Shank width (B): 20 mm Functional height (HF): 20 mm Functional width (WF): 10 mm Functional length (LF): 125 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight: 360.4 grams Insert size: 11 ISO: SVVBN2020K11

Brand

PRAMET
