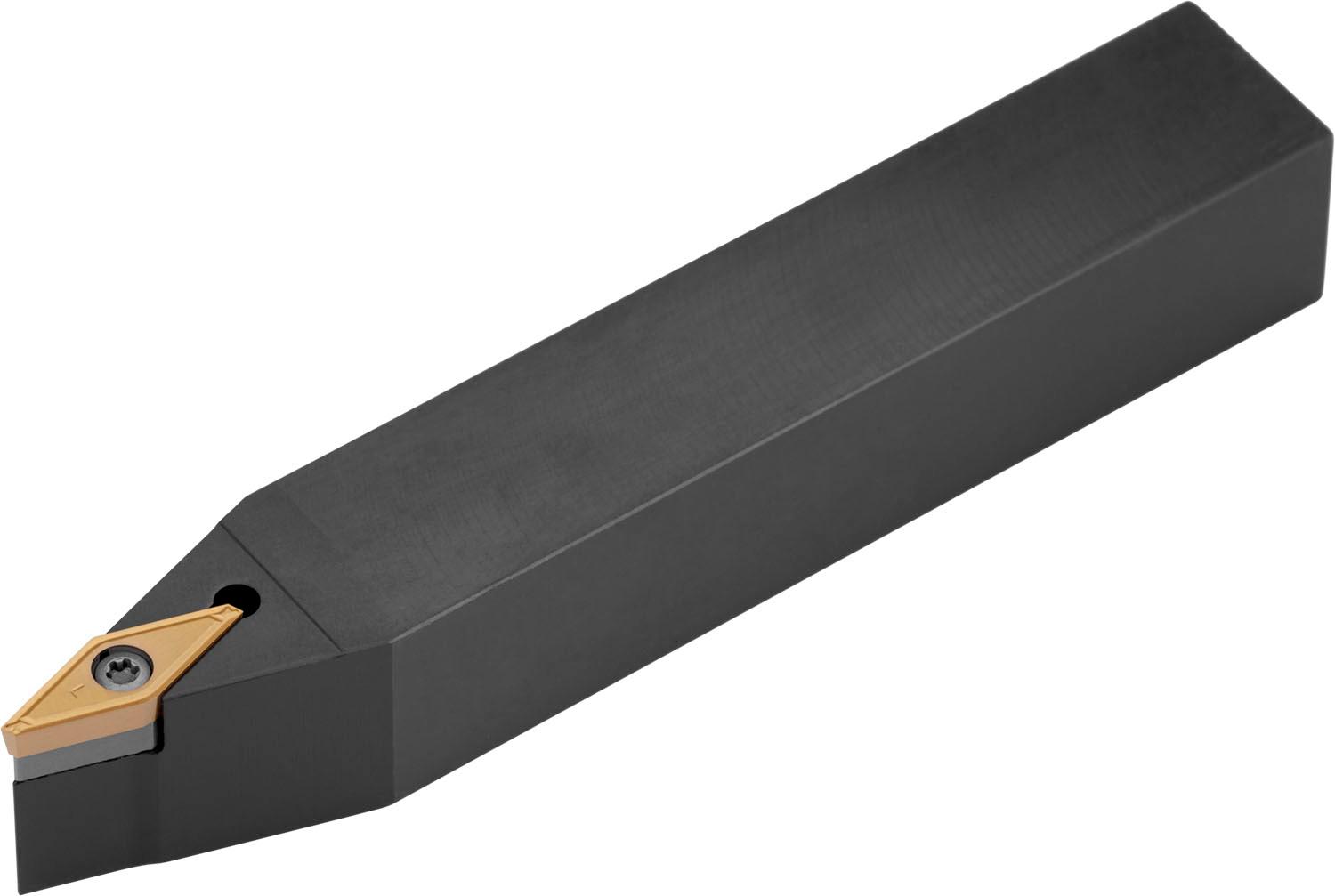

PRAMET SVVCN 1616 H 13 Turning holders external

Product Code: SVVCN 1616 H 13

$190.34$173.04 Ex. GST

Product Code: SVVCN 1616 H 13 SKU SVVCN 1616 H 13 Categories , ,
PRAMET SVVCN 1616 H 13 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), neutral hand 72°30′ side cutting with straight shank, 16mm tool height x 16mm width x 100mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight 0.1848 kg
barcode
Additional Information

Description: Value
EAN number: 3603602957917
Product number (SAP): 86002049
Ordering code ANSI: SVVCN 1616 H 13
Gross weight – grams: 208.7
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 8 mm
Functional length – millimeter (LF): 100 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 197
Insert size: 13
ISO: SVVCN1616H13

Brand

PRAMET
