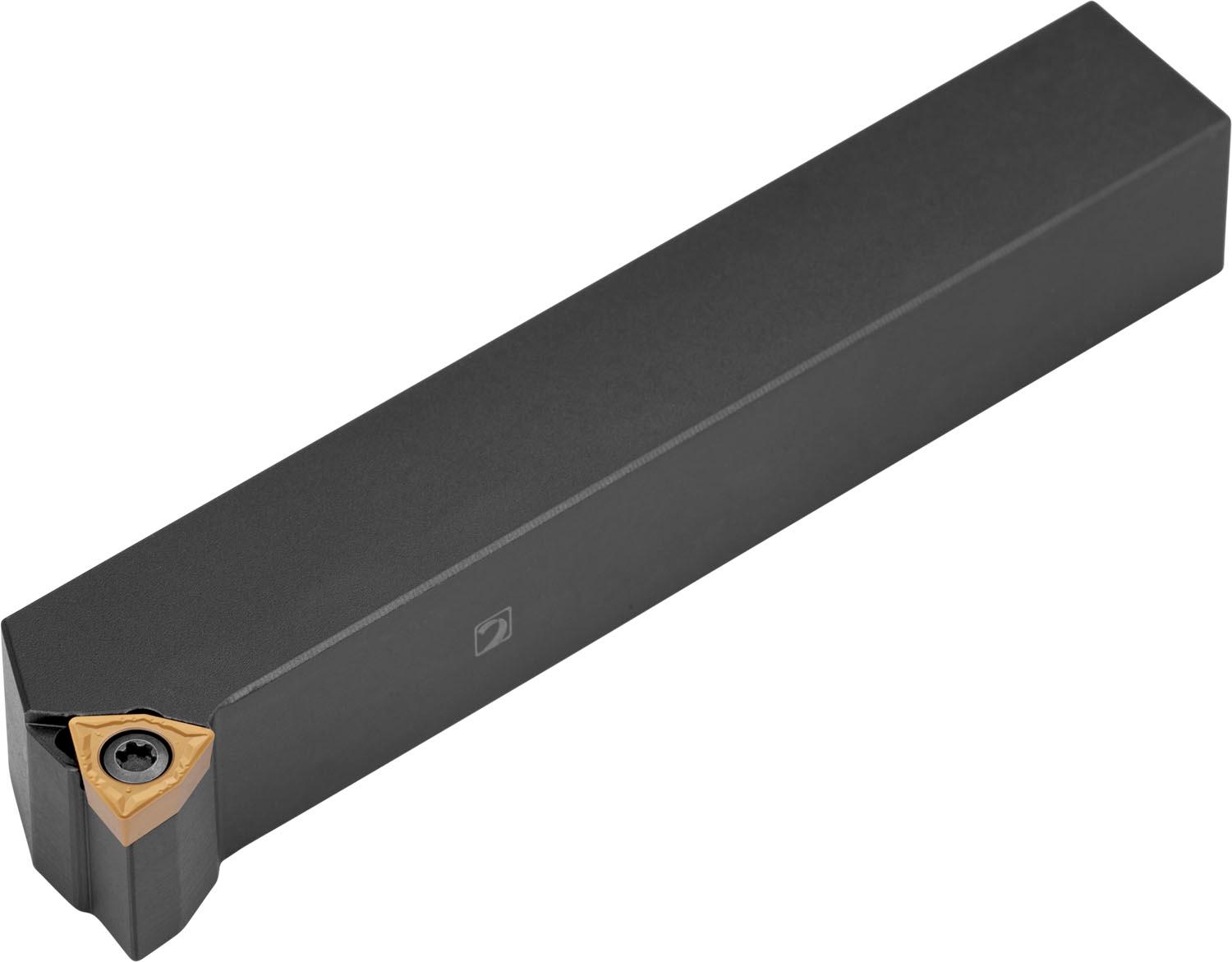

PRAMET SWLCR 1616 H 06 Turning holders external

Description

Screw clamp turning tool for holding a 80° trigon positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation WC.. 06T3.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1573 kg
barcode
Additional Information	Description: Value EAN number: 3603602921529 Product number (SAP): 84001108 Ordering code ANSI: SWLCR 1616 H 06 Gross weight – grams: 227.4 Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional height – millimeter (HF): 16 mm Functional width – millimeter (WF): 20 mm Functional length – millimeter (LF): 100 mm Head length – millimeter (LH): 15 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 226.7 Insert size: 06 ISO: SWLCR1616H06

Need Technical Advice?

Description

Additional information

Brand

PRAMET
