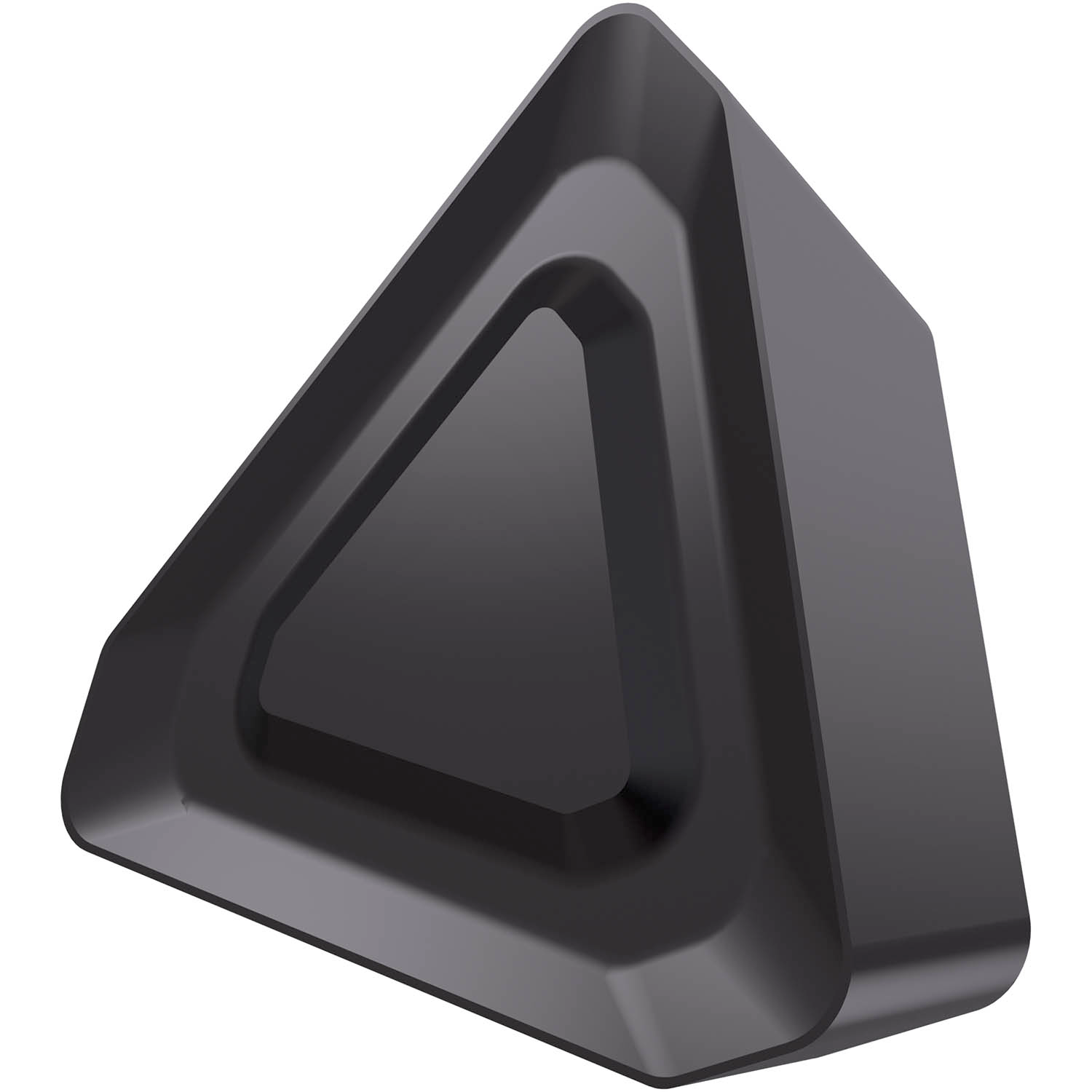

PRAMET TBMR 2707PZSR:M8326 Milling inserts clamped by wedge

Description: Value
EAN number: 3603602996992
Product number (SAP): 80024997
Ordering code ANSI: TBMR 2707PZSR:M8326
Gross weight – grams: 31.093
Wiper edge length – millimeter (BS): 4.61 mm
Inscribed circle diameter – millimeter (IC): 15.875 mm
Cutting edge length – millimeter (L): 27.5 mm
m-dimension – millimeter (M): 3.2 mm
Insert thickness – millimeter (S): 7.94 mm
Grade: M8326
Insert Clearance Code and Angle: B 5°
Insert size: 27
Insert Thickness: 07
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): T – triangular 60° included angle
ISO: TBMR2707PZSR:M8326
