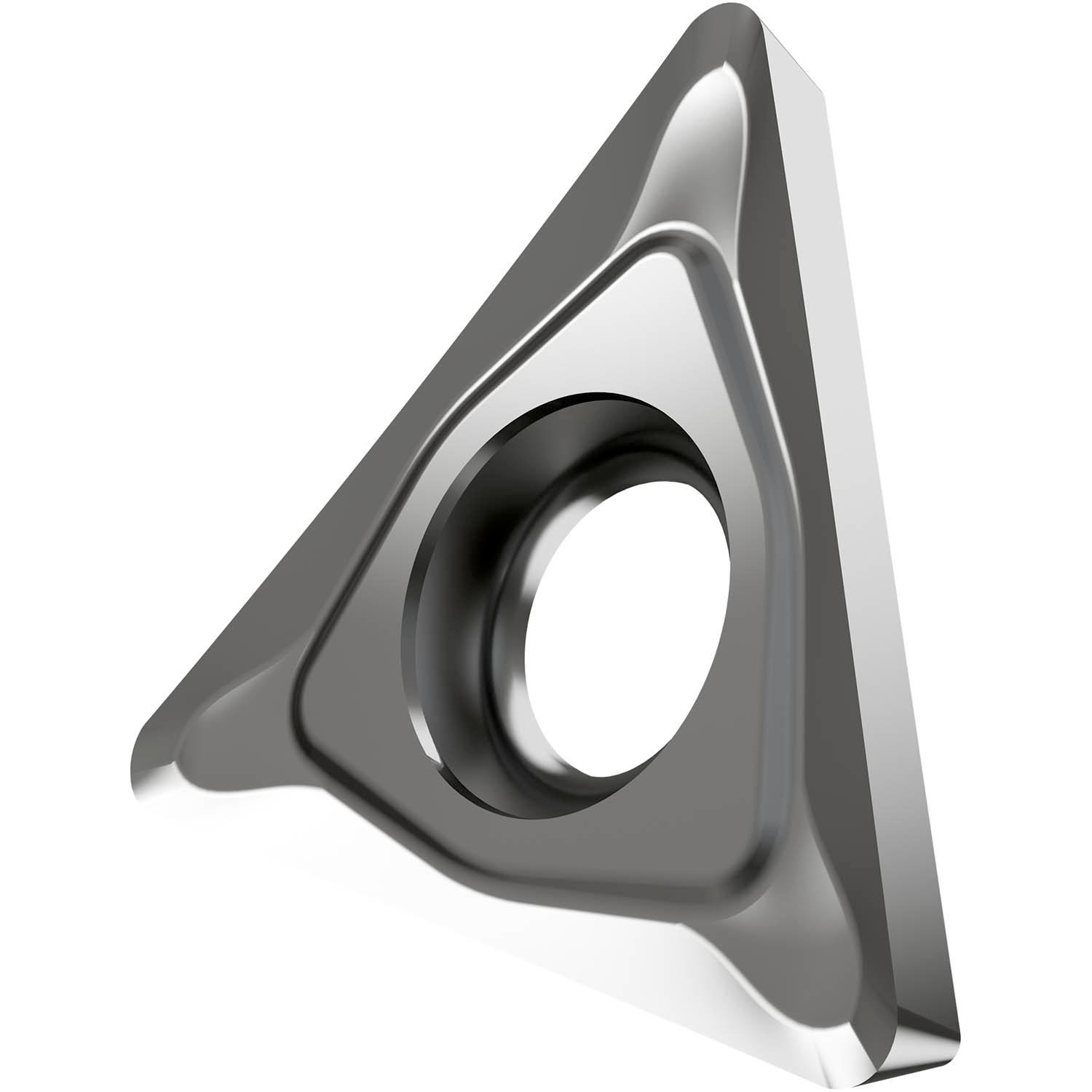

PRAMET TCGT 090202F-AL:T0315 Turning inserts AL

Description: Value
EAN number: 3603602915191
Product number (SAP): 80023498
Ordering code ANSI: TCGT 1.81.50.5F-AL:T0315
Gross weight – grams: 0.892
Inscribed circle diameter – millimeter (IC): 5.56 mm
Fixing hole diameter – millimeter (D1): 2.5 mm
Cutting edge length – millimeter (L): 9.6 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: T0315
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCGT
Insert size: 09
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCGT090202F-AL:T0315
