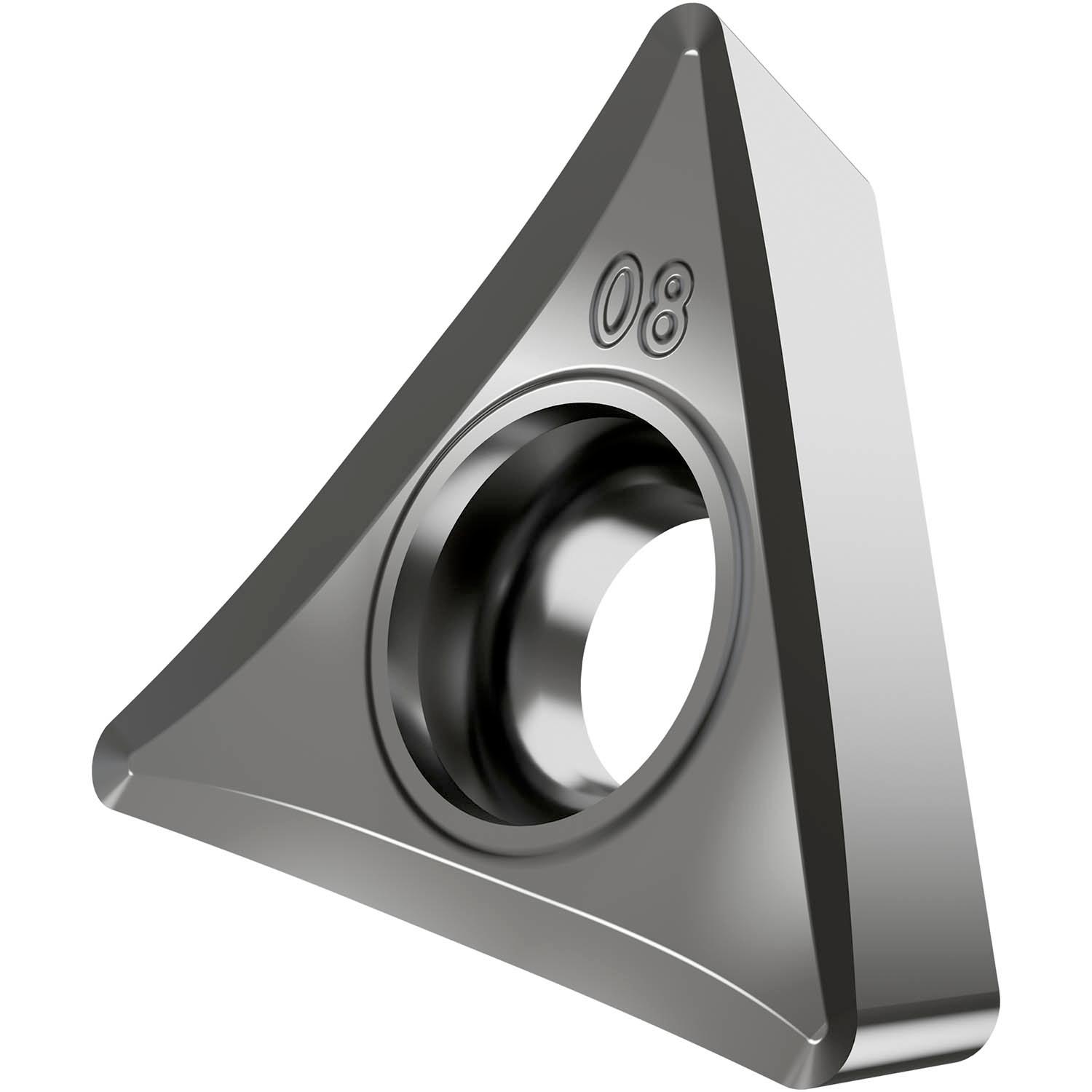

PRAMET TCGT 110204E-SF3:H07 Turning inserts positive

Description: Value
EAN number: 3603603171770
Product number (SAP): 80028416
Ordering code ANSI: TCGT 21.51-SF3:H07
Gross weight – grams: 1.295
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11 mm
Insert thickness – millimeter (S): 2.58 mm
Grade: H07
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCGT
Insert size: 11
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCGT110204E-SF3:H07
