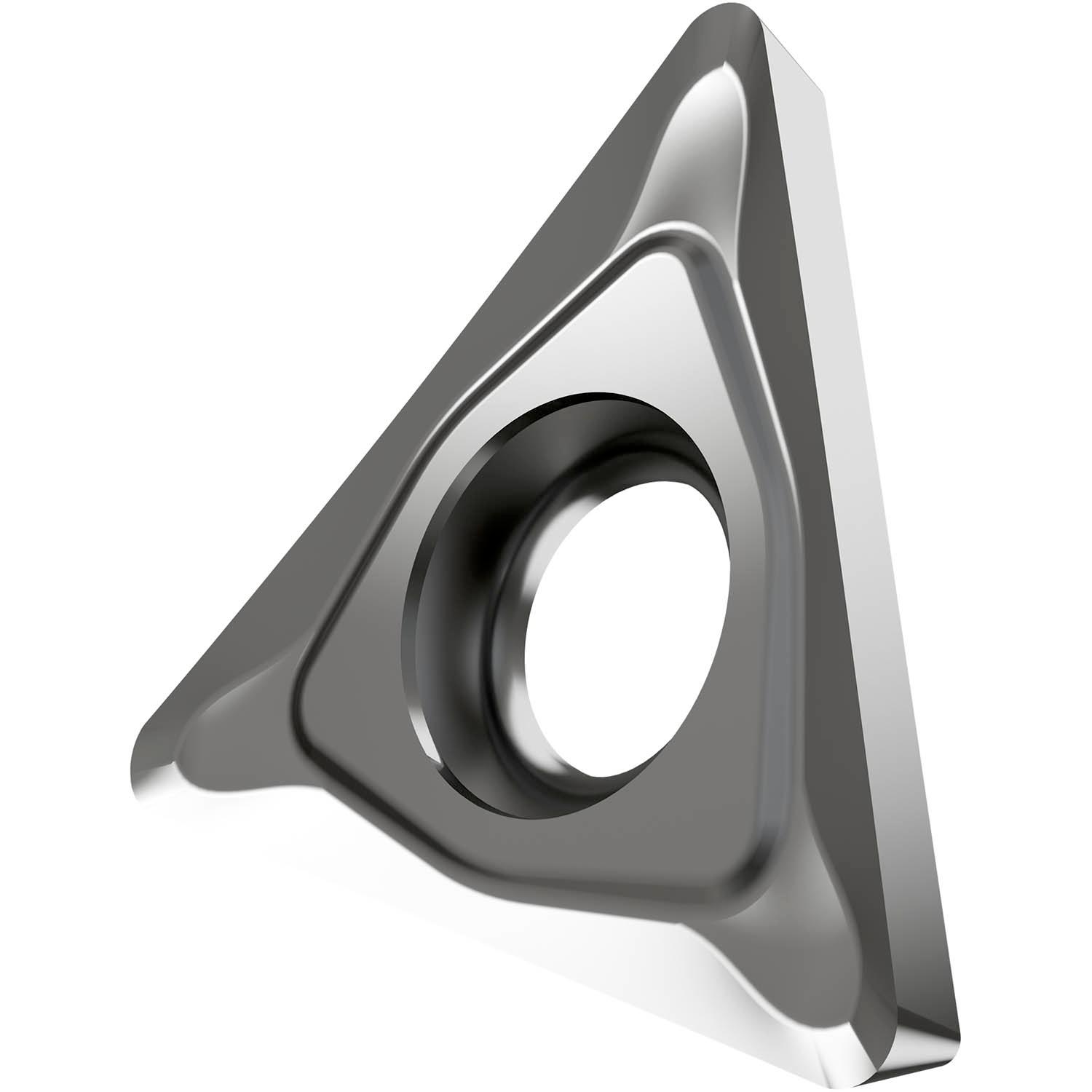

PRAMET TCGT 16T308F-AL:HF7 Turning inserts AL

Description: Value
EAN number: 3603602871701
Product number (SAP): 80002220
Ordering code ANSI: TCGT 32.52F-AL:HF7
Gross weight – grams: 5.6
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: HF7
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCGT
Insert size: 16
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCGT16T308F-AL:HF7
