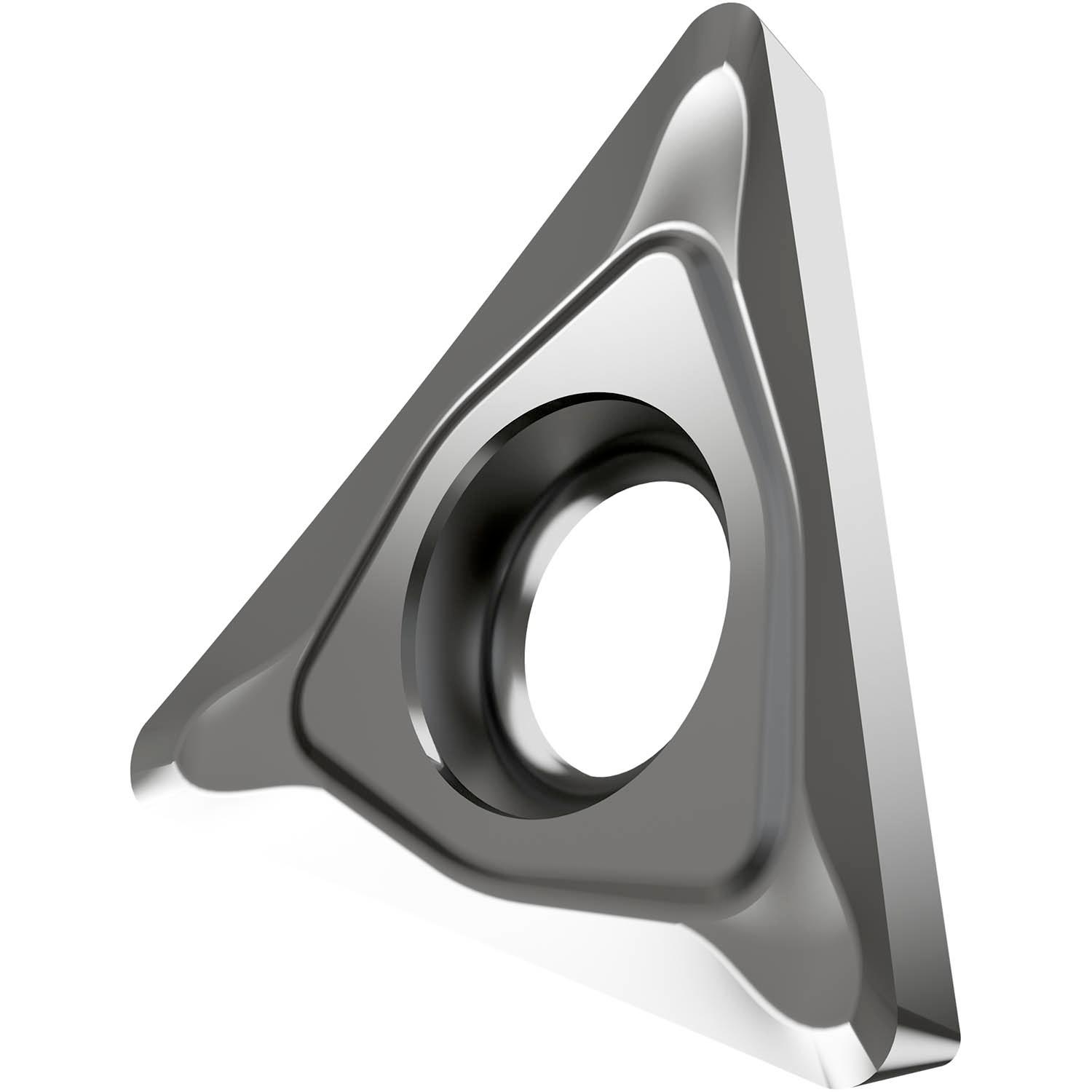

PRAMET TCGT 16T308F-AL:T0315 Turning inserts AL

Product Code: TCGT 16T308F-AL:T0315

$36.83$33.48 Ex. GST

Product Code: TCGT 16T308F-AL:T0315 SKU TCGT 16T308F-AL:T0315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 -M15/N05 -N20 and S01 -S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys

Additional information

Weight 0.0358 kg
barcode
Additional Information

Description: Value
EAN number: 3603602915252
Product number (SAP): 80023505
Ordering code ANSI: TCGT 32.52F-AL:T0315
Gross weight – grams: 5.61
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T0315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCGT
Insert size: 16
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCGT16T308F-AL:T0315

Brand

PRAMET
